Section 2: Pump Installation - DevilsOwn Alcohol Injection System Manual

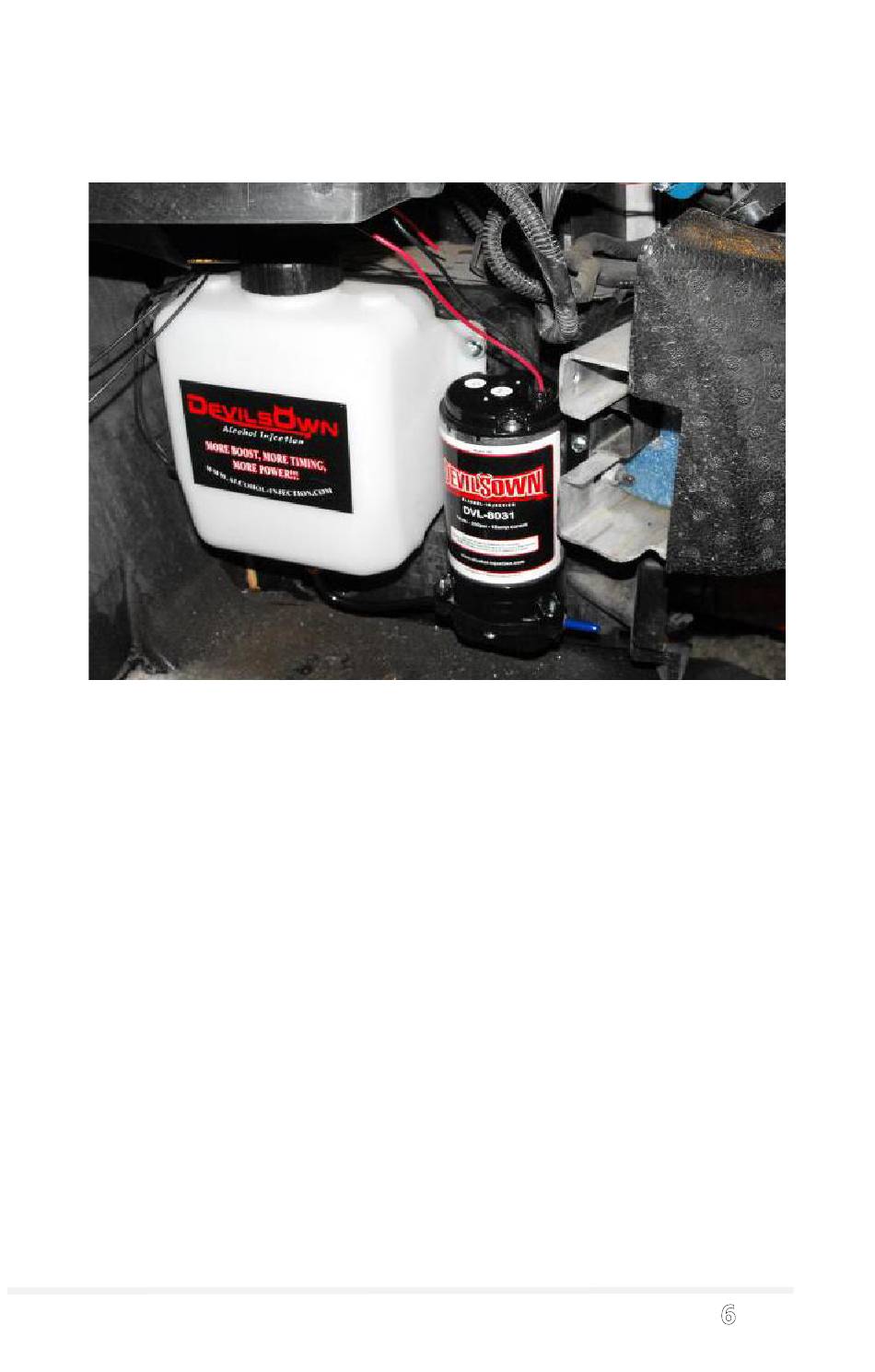

Figure 2: Pump placement
The DevilsOwn pump should be mounted below and as close to the
reservoir (tank) as possible using four of the #10 × 1½" screws. Make
sure to mount the pump away from heat, moisture and road debris.
Because the pump will work at any angle, installation angle does not
matter. Notice on top of the black pump housing, there are two arrows
indicating the direction of fluid flow to and from the pump. The port with
an arrow pointing towards the pump housing is the pump inlet (suction)
from the reservoir. The port with an arrow pointing away from the pump
housing is the pump outlet (pressure).
Find a good place on the chassis to attach the pump's ground wire. Any
good chassis ground or any solid metal place that is free from paint or
coatings will suffice. (Note the position of the ground bolt in Figure 2,
directly to the right of the pump.) Firmly crimp the ring terminal to the
black wire and fasten the ring terminal to the ground location chosen.
