Congratulations on your new Electrum Smart Saber
Diatium3 Saber Core, and features these components in your package. Confirm upon receipt
that these components are included. If your package is missing any of these components,
contact the Electrum Sabercrafts team at support@electrumsabers.com
3-Point Touch Switch
Saber Pommel Cap
DO NOT remove unless
instructed by ES staff,
or for replacement.
Saber Speaker
DO NOT attempt the remove the internal electronics saber chassis or pommel cap!
Doing so could damage the electronics and void your warranty.
When charging the saber, be sure to place the saber in a position where the saber
cannot fall/be knocked onto the floor. The hilt could land on the charge cord itself and
damage the charge port.
The saber requires a charge source of 5V (Volt) 2A (Amps) or higher. When charging
the saber, ensure your power source is at least 5V 2A.
Find more information at ElectrumSabers.com/Resources
! Your new saber is powered by the
®
Set Screw Hex Wrenchs
* 5/64 Hex Key - for blade retention screws
Saber Pommel

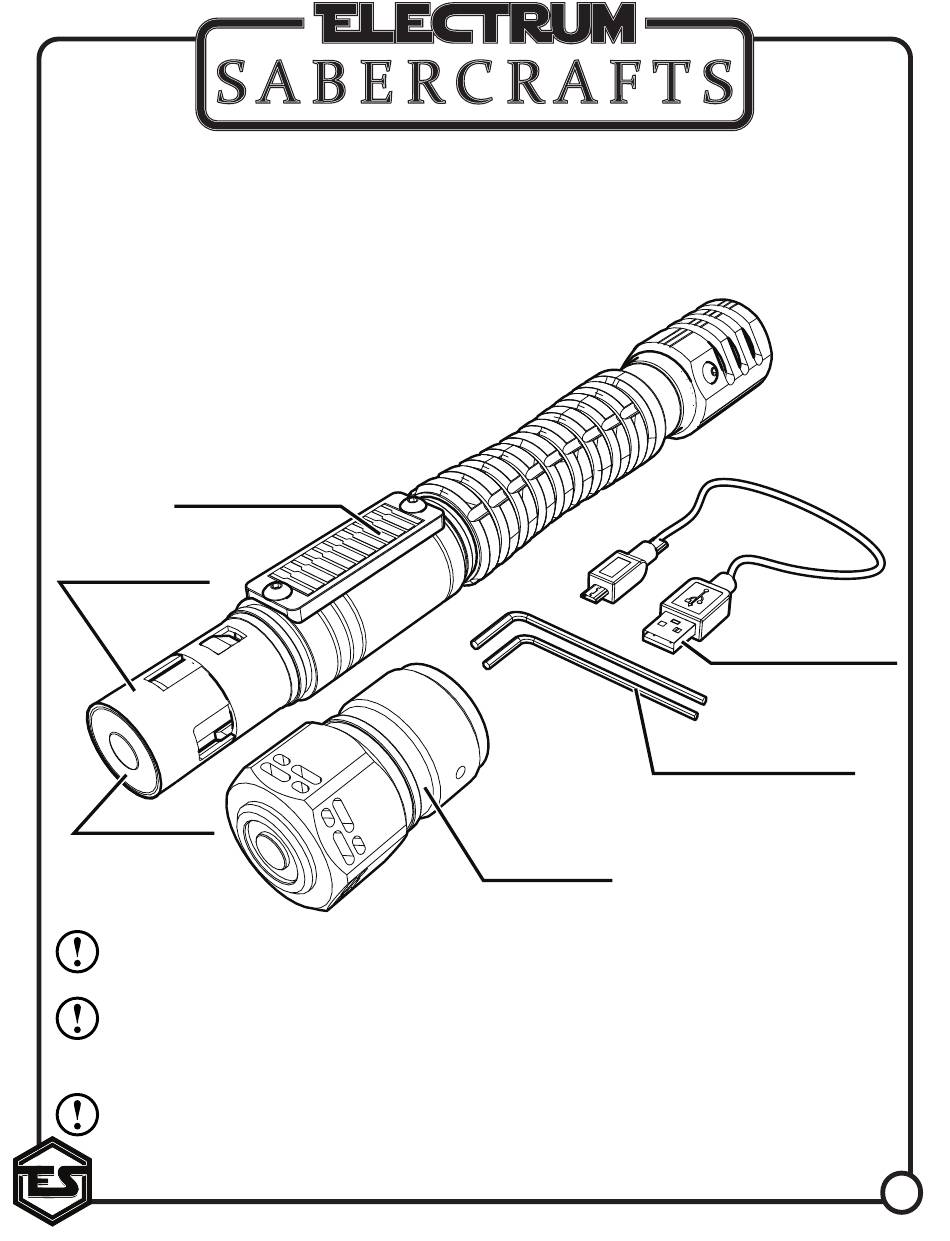

*Saber Drawing is an
example. Your Saber Model
may differ.
Micro USB Charge Cord
(2 Sizes Provided*)
* 3/32 Hex Key - for button screws
1
Advertisement
Related Manuals for Electrum Sabercrafts Smart Saber Aegis
Summary of Contents for Electrum Sabercrafts Smart Saber Aegis
- Page 1 Diatium3 Saber Core, and features these components in your package. Confirm upon receipt that these components are included. If your package is missing any of these components, contact the Electrum Sabercrafts team at support@electrumsabers.com *Saber Drawing is an example. Your Saber Model may differ.
-
Page 2: Basic Operation
Basic Operation Twist towards left to unthread your pommel. If your saber does not feature a threaded pommel, you can remove the pommel by loosening the set screw with one of the Deep Sleep The Recharge port is also provided hex keys. Switch located on this side, underneath the switch. - Page 3 Basic Operation Towards Blade Top Button Boot from Sleep Mode Middle Button Bottom Button Towards Pommel Auto Sleep Mode The Diatium3 Smart Saber features an intelligent “Sleep Mode”, that conserves power automatically when it is not in use. This mode activates after a period of time you set in “Switch Settings”...
- Page 4 Basic Operation Blaster Mo Auxiliary Mode Activati Activation Auxiliary Mode Menu The Auxiliary mode menu allows you to change your Volume, Sound Bank, User Profile, Pixel Profile and Blade Profile directly on the saber. This menu is accessed by holding the middle button on the switch while the saber is in a level horizontal position until all switch LEDs flash, then release.
- Page 5 Basic Operation Blaster Mode Activation Blaster Effect Motion Force Effect Motion Blaster Mode To enter Blaster Mode, hold the saber in a vertical position (blade up) within the range you set in the Unity App (Default 70°). While in this position, hold the bottom switch button until the LEDs on the plate flash to activate the mode.
- Page 6 Sound Fonts SD Card Access The SD card can be accessed from the side opposite the Deep Sleep Switch. DO NOT remove the Speaker cap to access the card. Adding Sound Fonts All Sound Fonts on your Electrum Saber are stored on the included SD card. This can be accessed by removing the pommel.
- Page 7 Check the blade side connector as well for dirt or debris. Electrum Sabercrafts does not warranty the Pixel Blade for full contact dueling. DO NOT over-tighten the blade set screw. Often a simple friction fit is enough to hold the blade for even heavy dueling sessions.
-
Page 8: Troubleshooting
Troubleshooting Towards Blade Towards Blade Hard Reset Soft Reset (Bottom Button) (Middle Button) Once Switch LEDs start flashing, hold the Correct button until they blink slowly (3 times for Soft Reset, Deep Sleep 6 for Hard Reset), as shown above. Switch Resetting the Saber You may encounter a scenario were you want to restore your factory settings, or refresh... - Page 9 Electrum Unity App 9:41 AM 100% 9:41 AM 100% AURORA ELECTRUM ELECTRUM2 SMART SABERS IN RANGE SMART SABERS IN RANGE SMART SABERS IN RANGE SMART SABERS IN RANGE SMART SABERS IN RANGE SMART SABERS IN RANGE MASTER VOLUME MASTER VOLUME MASTER VOLUME Kinetic Engine Kinetic Engine...
- Page 10 Electrum Unity App Blade Profiles This menu allows you to adjust main color, pulse color, clash color, and 9:41 AM 100% 9:41 AM 100% 9:41 AM 100% clash duration. Pixel Blade effects are also located here, if applicable. Blade Color The main color of your blade.
- Page 11 Electrum Unity App Kinetic Engine The Kinetic Engine allows for control over the motion perameters in the 9:41 AM 100% saber, allowing you to fine tune the saber to your specific movements. Motion Profile This option allows you to swap between classic Swing (plays a swing sound after a motion threshold, hum is static), Hybrid Swing (Classic swing sounds, mixed with dynamic hum based...
- Page 12 Electrum Unity App Kinetic Engine (Cont.) Classic Add Interval Changes how often a Classic/Accent Swing will 9:41 AM 100% play during your Hybrid Swing Motions. Auto Lockup Set to ON to have the lockup effect play after a clash is triggered and blade stays locked on the impact object.
- Page 13 F.A.Q. What types of sounds does the saber support? The Saber supports 16 bit WAV files, 22.1 kHz and 44.1 kHz. The Saber “Interlaces” sound effects, so sounds that are designed with the hum effect built into the effects (e.x. Plecter optimized) are best.
- Page 14 F.A.Q. Can I swap between a pixel blade and regular dueling blade? No, the pixel setup required a special pin connection that replaces the in-hilt LED. As such, using a regular blade in a pixel equipped saber would result in an unlit blade. I’m having trouble connecting to my Saber with my Android device.
-
Page 15: Limited Warranty
Warranty is non transferable. Electrum Sabercrafts Return Policy Electrum Sabercrafts offers a 3 day return policy. All returns are subject to a 30% restocking fee. The customer is responsible for cost of shipping. This only applies to product that is in brand new condition. - Page 16 For additional information on our Smart Saber lineup, visit us at ® www.ElectrumSabers.com Aegis Smart Saber® Torrent Smart Saber® Aurora Smart Saber® Evo-Flex Smart Saber® Remnant Smart Saber® Errant Smart Saber® Scion Smart Saber® Allegiant Smart Saber® Neophyte Smart Saber® Ebon Razor Smart Saber®...
