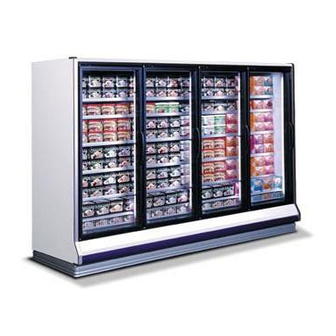

Hussmann IMPACT RLN Technical Data Sheet

Merchandisers
Warning:
Terminal block NOT for
case-to-case
wire connection!
Item Part # Description
F A , T
AN SSEMBLIES AND HERMOSTATS
A. 12W Standard Fan Assembly
0047000 Fan Motor, Evaporator
(MO.4410103)
0461805 Fan Blade (FB.4780446)
12W Optional Energy Efficient Fan Assembly (1)
0477655 Fan Motor, Evaporator
(MO.4410546)
0461805 Fan Blade (FB.4780446)
B. 0474033 Standard Non-adjustable
Defrost Thermostat (CT.4440726)
C. Optional Adjustable
Refrigeration Thermostat
D. 0344662 Defrost Limit Thermostat
(CT.4440261)
E. 0461814 Relay Control Thermostat or
Fan and Anti-sweat Heater
Thermostat (CT.4481296)
R
ELAYS
F. 0342598 Anti-Sweat Control Relay
(120V) (RL.4480238)
G. 0342599 Fan Control Relay (208V)
(RL.4480237)
NOTE:
Revision G adds LED lighting throughout and fan updates on Pages 1 and 4.
©2007 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM
®

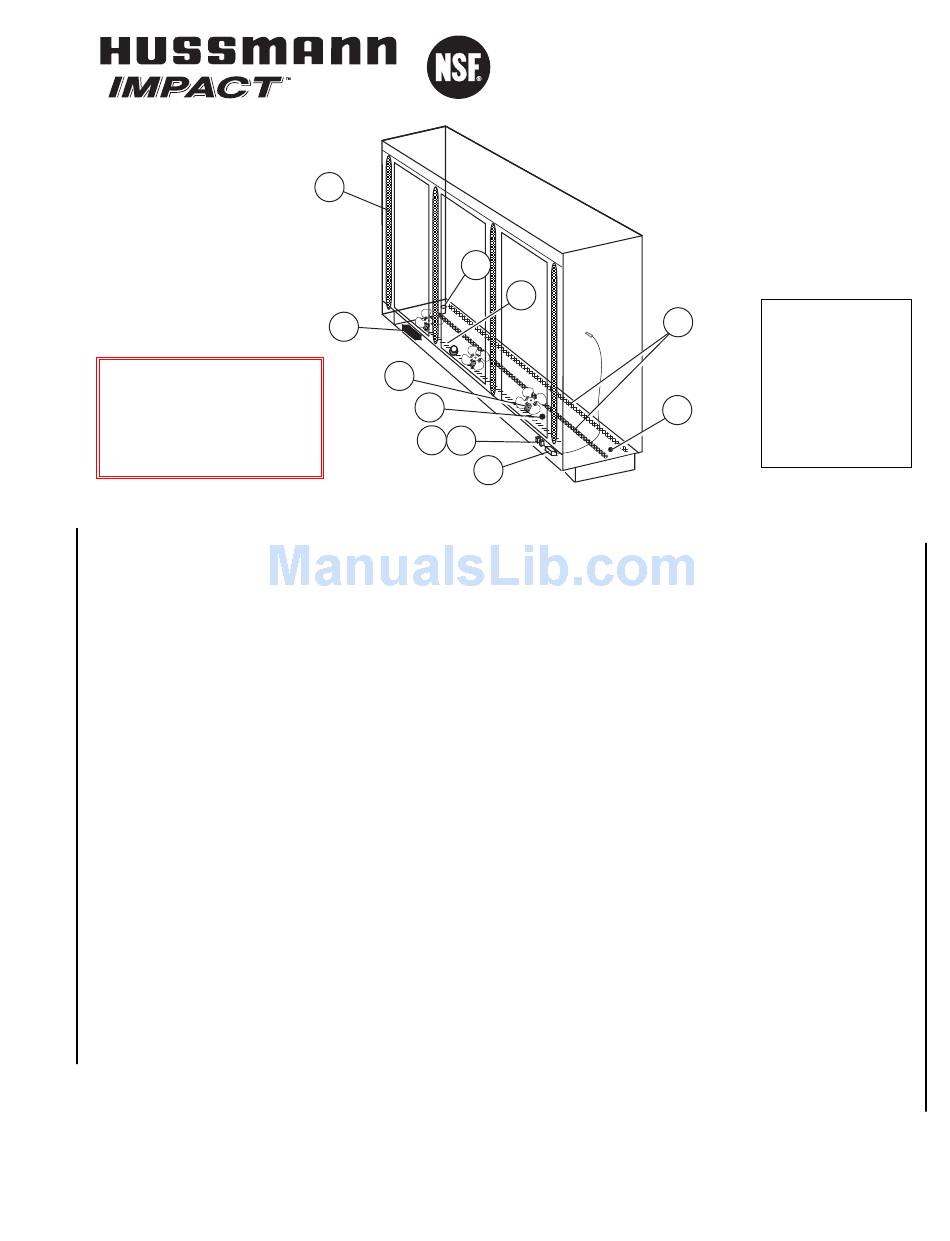

K
E
J
A
D
G
F
C
Wiring Item #
(1)
(2)
(3)
(4)
(5)
(6)
(7)
RLN
INNOVATOR
with
I
H
B
Item Part # (Qty) Description
H
EATERS
H. Electric Defrost Heaters – Front (208V)
0441755 (1) 2 Door Models (HE.4850346)
0441756 (1) 3 Door Models (HE.4850337)
0441757 (1) 4 Door Models (HE.4850347)
0441758 (1) 5 Door Models (HE.4850323)
Electric Defrost Heaters — Rear (208V)
0463891 (1) 2 Door Models (HE.4850358)
0463892 (1) 3 Door Models (HE.4850359)
0463893 (1) 4 Door Models (HE.4850360)
0463894 (1) 5 Door Models (HE.4850361)
I. Drain Pan Heater (Electric & Kool Gas)
(120V)
0387036 (1) 2 Door Models (HE.4850239)
0387037 (1) 3 Door Models (HE.4850240)
0387038 (1) 4 Door Models (HE.4850241)
0387039 (1) 5 Door Models (HE.4850242)
L B
AMPS AND ALLASTS
J. 0430329 1 Lamp Ballast (BA.4480341)
0430330 2 Lamp Ballast (BA.4480342)
0454319 3 Lamp Ballast (BA.4480601)
0424649 Export Ballast (BA.0424649)
K. Standard Fluorescent Lamp
Replace with like fixtures
NOTE:
For LED lighting parts contact your Hussmann
service representative at 1-800-922-1919. Please have
your model and serial number available.
Refer to I R
NNOVATOR EACH
I S
NSTALLATION AND ERVICE
for Innovator II door and frame replacement parts.
Doors
Technical Data Sheet
P/N 0435490_G
NSF
®
Certified
January 2007
We reserve the right to change
or revise specifications and
product design in connection
with any feature of our
products. Such changes
do not entitle the buyer to
corresponding changes,
improvements, additions or
replacements for equipment
previously sold or shipped.
Wiring Item #
-I G D
N LASS OOR
manual, P/N 0425683,
P/N 0435490_G
(8)
(8)
(9)
