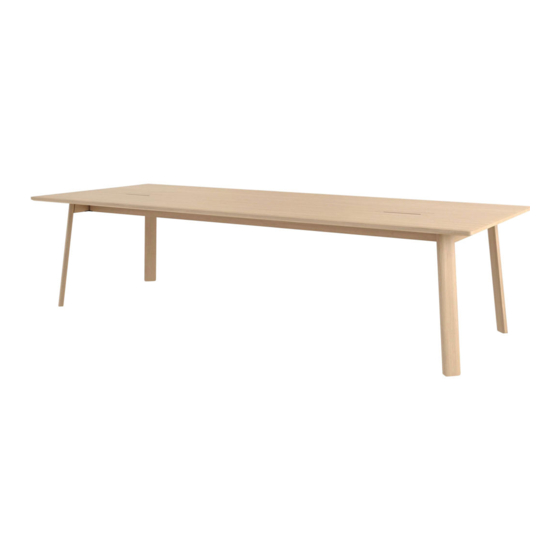

- Page 1 Alle Conference Media Table Assembly Instruction...
- Page 2 Alle Table, which features a structural beam on the underside recalling ancient Japanese temple architecture. In this and many other ways, the Alle Table is especially Hem: traditional modes of making reclaimed for modern manufacture; good looks and practicality given equal consideration;...
- Page 3 Parts 4 × Pins 8 × Screws 8 × Washers 1 × Locking hinge 2 × Media port covers 2 × Cable racks 2 × Cross beams 1 × Table top 2 × Legs...
- Page 4 Product Introduction When ready assembled, your table will look like this from underneath. In the image below you can see where the locking hinges of the table top will sit, keep this in mind while assmenbling.
- Page 5 Step 1 Starting with the frame, join the cross beams with the legs as shown on the image below. As shown on the picture to the left, there is two or three slots on each side of the cross beams. They need to be facing upwards and the same direction.
- Page 6 Step 3 Once the cross beams sit in the legs correctly, secure their position with the four pins provided. Make sure that the top of the pin are flush with the metal plates they sit in. Then, straighten the frame as shown below in the illustration.
- Page 7 Step 4 Next, turn the table top upside down and place it on a soft surface. Attach the media ports onto the table top as in the image below, use the washers and screws provided. Then, make sure that the locking hinges are parallel to the edges of the table top.
- Page 8 Step 5 Carefully place the table top onto the leg construction. The pins sticking out of the leg construction should now sit inside the fitting holes in the table top. Step 6 Carefully place the table top onto the leg construction. The pins sticking out of the leg construction should now sit inside the fitting holes in...
- Page 9 Step 7 Put the media port covers into place. Step 8 Your Alle Media Conference Table is now ready assembled!
- Page 10 Notes...
- Page 11 Notes...
- Page 12 Should you have any problems assembling your product, contact us at info@hem.com. We’re always happy to help!
