Zig Zag Shelf

Assembly

Instruction

Need help?

Do you have a question about the Zig Zag Shelf and is the answer not in the manual?

Page 1 Zig Zag Shelf Assembly Instruction...

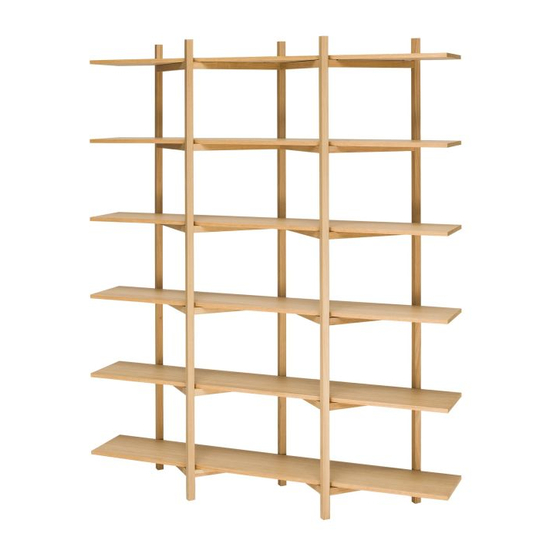

Page 2 Zig Zag Shelf Instant order There is a pleasing visual rhythm to the Zig Zag Shelf: its grid-like frame effort- lessly creates an elegant semblance of order, making whatever you choose to place on it feel instantly arranged and considered. Designers Studio deForm invented a system of construction that enables you, the end user, to assemble Zig Zag without tools.
Page 3 Parts 1 × Shelving frame 6 × Shelves 2 × Straps 2 × Screws 1 × Allen key...
Page 4 Step 1 Spread the shelving frame. Use the allen key to adjust the legs. Make sure the frame stands straight.
Page 5 Step 2 Place all shelves except for the top one. Make sure that all pins are firmly connected with the holes of the shelf.
Page 6 Step 3 Important: The shelf should always be firmly attached to the wall to avoid risk of tipping over! Carefully follow the instructions on the next page when installing the wall mounting. Choose mounting plugs suitable for your wall material. Screw holes for wall mounting.
Page 7 Step 4 Loop the strap around the top part of the shelving frame. Screw the bracket to the wall as illustrated. Pull the end of the cord to tighten the shelving firmly against the wall.
Page 8 Note: To avoid flex always load the shelves evenly. The maximum load per shelf is 40 kg evenly loaded. Never lean on the shelving. Should you have any problems assembling your product, contact us at info@hem.com. We’re always happy to help!
