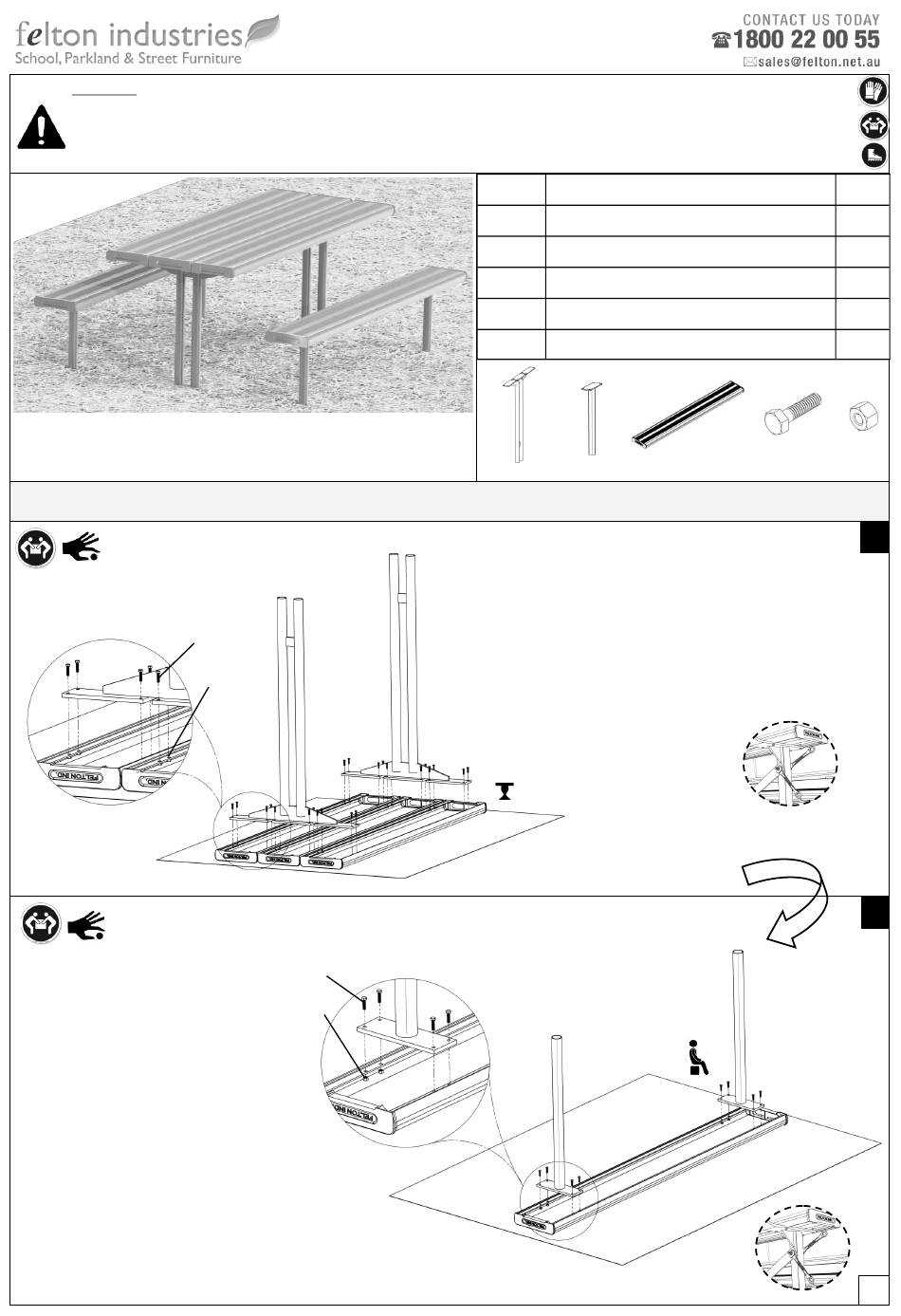

felton industries FELIGPS Assembly Instructions

WARNING: READ THE ASSEMBLY INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING THE IN GROUND PARK SETTING.
Make sure to wear protective gloves and foot protection when installing and assembling this product. Unpack the unit and make sure all the components are
included before proceeding. This activity requires two o more people as lifting is involved. Please ensure all bolts are only finger-tightened during the assembling
process for flexibility in lining up components. Securely tighten all bolts before anchoring the product to the ground.
IN GROUND PARK SETTING
(CODE No. FELIGPS)
Thank you for purchasing our high quality products. The In Ground Park Setting has been manufactured with certified materials, to achieve high reliability and minimum maintenance. It is our
commitment to provide you cost effective solutions for outdoor applications.
A. Place a seat plank (IGP3) on a flat surface and
attached them to the seat frames (IGPS1), by using
hexagonal head bolts (IGP4) and locknuts (IGP5) —
finger tighten.
B. Repeat the same process to assemble the two in
ground seat park settings.
C. Adjust all bolts properly, by using span, wrench and/
or any appropriate tool.
[IGP1]
[IGP4 x 4]
[IGP5 x 4]
[IGP4 x 4]
[IGP5 x 4]
ITEM
IGP1
IGP2
IGP3
IGP4
IGP5
IGP1
[IGP1]
[IGP3]
DESCRIPTION
TABLE FRAME
SEAT FRAME
TABLE / SEAT PLANK—1800 mm.
M6x25 mm. HEXAGONAL HEAD BOLT
M6 LOCKNUT
IGP3
IGP2
A. Place the 3 table planks (IGP3) up side down on a flat
surface and attached them to the table frames (IGP1), by
using hexagonal head bolts (IGP4) and locknuts (IGP5) —
finger tighten.
B. Adjust all bolts properly with a span, wrench and/or any
appropriate tool.
[IGP2]
[IGP3]
QTY
2
4
5
40
40
IGP4
IGP5
1
2
[IGP2]
P1
