felton industries FELPSBR Assembly Instructions

WARNING: READ THE ASSEMBLY INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING THE PARK SETTING WITH BACK REST.
Make sure to wear protective gloves and foot protection when installing and assembling this product. Unpack the unit and make sure all the components are
included before proceeding. This activity requires two o more people as lifting is involved. Please ensure bolts are only finger tightened during the assembly pro-
cess for flexibility in lining up components. Securely tighten the bolts before anchoring the product to the ground.

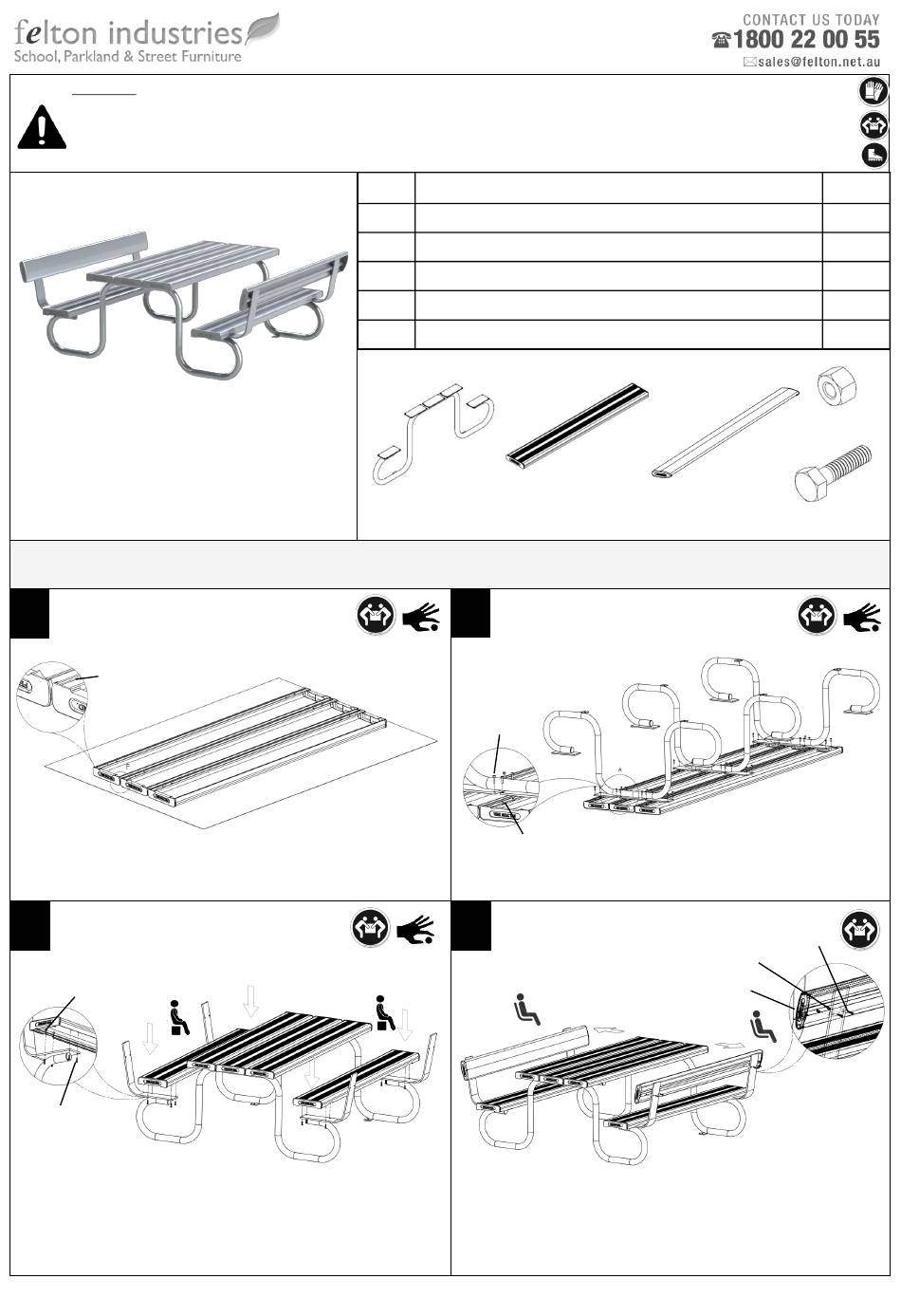

ASSEMBLY INSTRUCTIONS
PARK SETTING WITH BACK REST
(Code No. FELPSBR)
Thank you for purchasing our high quality products. The Park Setting with Back Rest has been manufactured with certified materials to achieve high reliability and minimum
maintenance. It is our commitment to provide cost effective solutions for outdoor applications.
1
[PR2]
Lay 3 table planks (PR2) upside down on a flat surface, making sure they are
level at both ends.
3
[PR4x2]
[PR3x4]
Turn the entire assembly up and attach two seat planks (PR2) to the main frame fixing
plates (PR1), by using hexagonal head bolts (PR3) and locknuts (PR4). Make sure the
hexagonal head bolts are installed upwards as illustrated.
ITEM
PR1
PR2 SEAT / TABLE PLANK –1800mm.
PR3 M6x25 mm. HEXAGONAL HEAD BOLT
PR4
PR5
PR1
2
[PR1]
[PR4x4]
[PR5x4]
Bolt the two main frames (PR1) to the table planks (PR2), frame tags facing
inward and upside bolts as illustrated.
4
Attach the back rest planks (PR5) to the main frame top plate (PR1) with hexagonal
head bolts (PR3) and locknuts (PR4) as illustrated. Make sure the hexagonal head bolts
are installed facing inwards as illustrated.
DESCRIPTION
MAIN FRAME
M6 LOCKNUT
BACK REST PLANK
PR5
PR2
[PR1]
[PR1]
[PR4x2]
[PR5]
QTY
2
5
48
48
2
PR4
PR3
[PR3x2]
