Part# SSB3-MDX07S2-WB SSB3-MDX07BK-WB
1
set

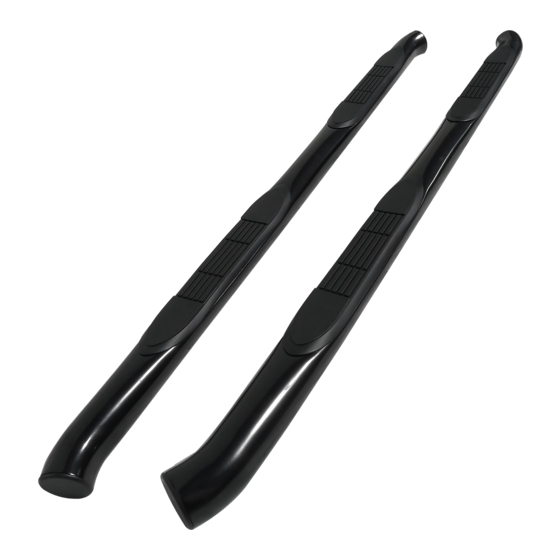

SIDE BAR
2
pc
MOUNT BRACKETS(left and right,
when sitting in the car)
14
pc
M8 X 25MM HEX HEAD BOLTS
26
pc
M8 LOCK WASHERS
6
pc
M8 HEX NUTS
PROCEDURE
1. Begin installation by working on left side of the vehicle

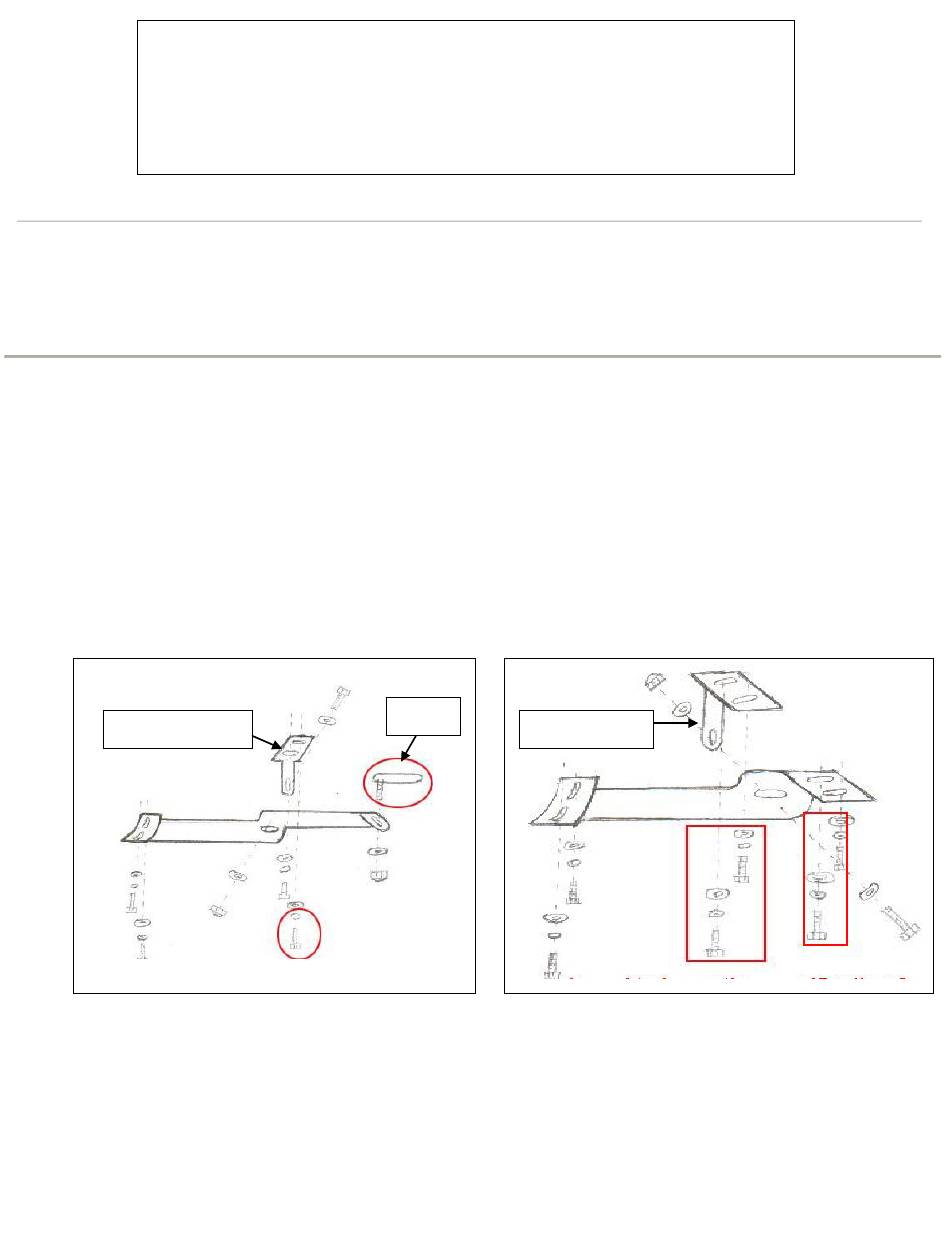

2. From underneath vehicle, place lefts side front bracket in position as shown in Fig. 1 Attach using hex
head bolts supplied with flat washers and lock washers and nuts. Secure the auxiliary mount bracket to
the front bracket using the bolts, flat washer, lock washer and nuts as shown in below pictures . Do not
fully tighten at this time
3. Attach and secure Rear Mount Bracket to underside of vehicles rear body mount in same manner as the
front. Secure the auxiliary mount bracket to the front bracket using the bolts, flat washer, lock washer
and nuts as shown in below pictures. Do not fully tighten at this time.
4. Attach side bar to brackets using the supplied head bolts, flat washers and lock washers.
5. Repeat steps 1-4 on Right side. Align side bar with vehicle and fully tighten all nuts and bolts.
ket
Auxiliary brac
Fig. #1
Installation Instruction
Side Bar
07-10 ACURA MDX
T-Bolt
Page 1 of 2
4
pc
AUXILIARY MOUNT
BRACKETS2
30
pc
M8 FLAT WASHERS
12
pc
M8*40 HEX HEAD BOLTS
2
pc
M8 T-BOLTS
Auxiliary bracket
Fig. #2
