SPEC-D Tuning SSB3-CHKE84S2-WB Installation Instructions

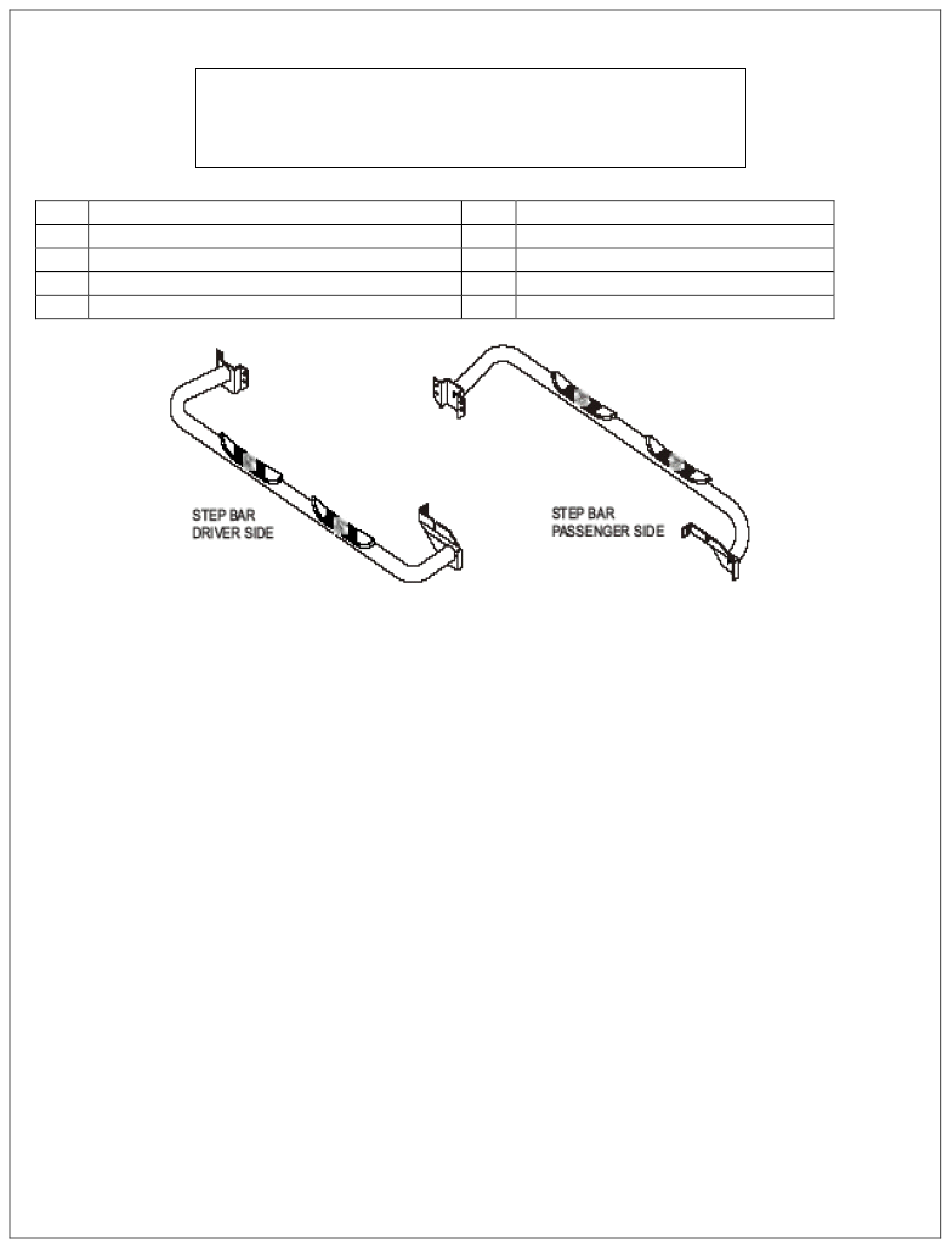

PARTS LIST

1 Step Bar Assembly, Drivers Side
1 Step Bar Assembly, Passenger Side
2 Front Mounting Brackets
1 Rear Mounting Bracket, Driver Side
1 Rear Mounting Bracket, Passenger Side

PROCEDURE:

Step 1: Remove all parts from the box and check for any damage. Verify all parts are there.
Step 2: Read and understand all of the instructions before installing.
Step 3: Install both front and rear mounting brackets onto the Step Bars using 4 of the 1/2"-13X2" hex
head bolts, 4 1/2" lock washer, and 4 flat washers leaving them loose. See Fig.1
Step 4: Loosen the front rear spring bolt, enough to slide the slotted top edge of the rear bracket can be
slid underneath the head bolt. NOTE: DO NOT REMOVE THIS BOLT.SEE Fig.2
Step 5: Place the rear of the Step Bar to the Spring Bracket, and tighten the Spring Bolt until it holds the
rear Step Bar bracket in place. See Fig.2
Step 6: Hold up the front end of the Step Bar to the front of the sub frame .Check to be sure the Step Bar
is properly aligned with the Body and mark the holes to be drilled.
NOTE: On some models be cautious of the diagonal oblong hole, it maybe necessary to locate the front
mounting bracket at an angle to miss this hole. See Fig 2.
Step 7: Drill the holes for the front bracket using the 5/16" drill bit and electric drill.
Step 8: Secure the front Mounting Bracket to the sub frame using 4 3/8" self tapping bolts. NOTE: DO
NOT OVER TIGHTEN THESE BOLTS.
INSTALLATION INSTRUCTIONS
Part# SSB3-CHKE84S2-WB

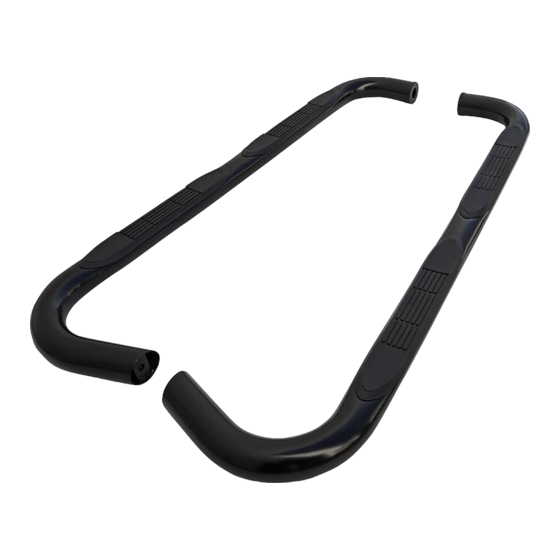

3'' SIDE BAR FOR JEEP CHEROKEE 4DR 84-00
SSB3-CHKE84BK-WB
4 1/2"-13*2Hex Head Bolt
4 1/2"Flat Washer
4 1/2"Lock Washer
10 3/8*1"Self Tapping Hex Head Bolt
Page 1 of 2
SIDE BAR
1984-2000 JEEP CHEROKEE 4DR.
