- Page 1 "RESPİROX" Suction Unit Aug. 10, 2017...

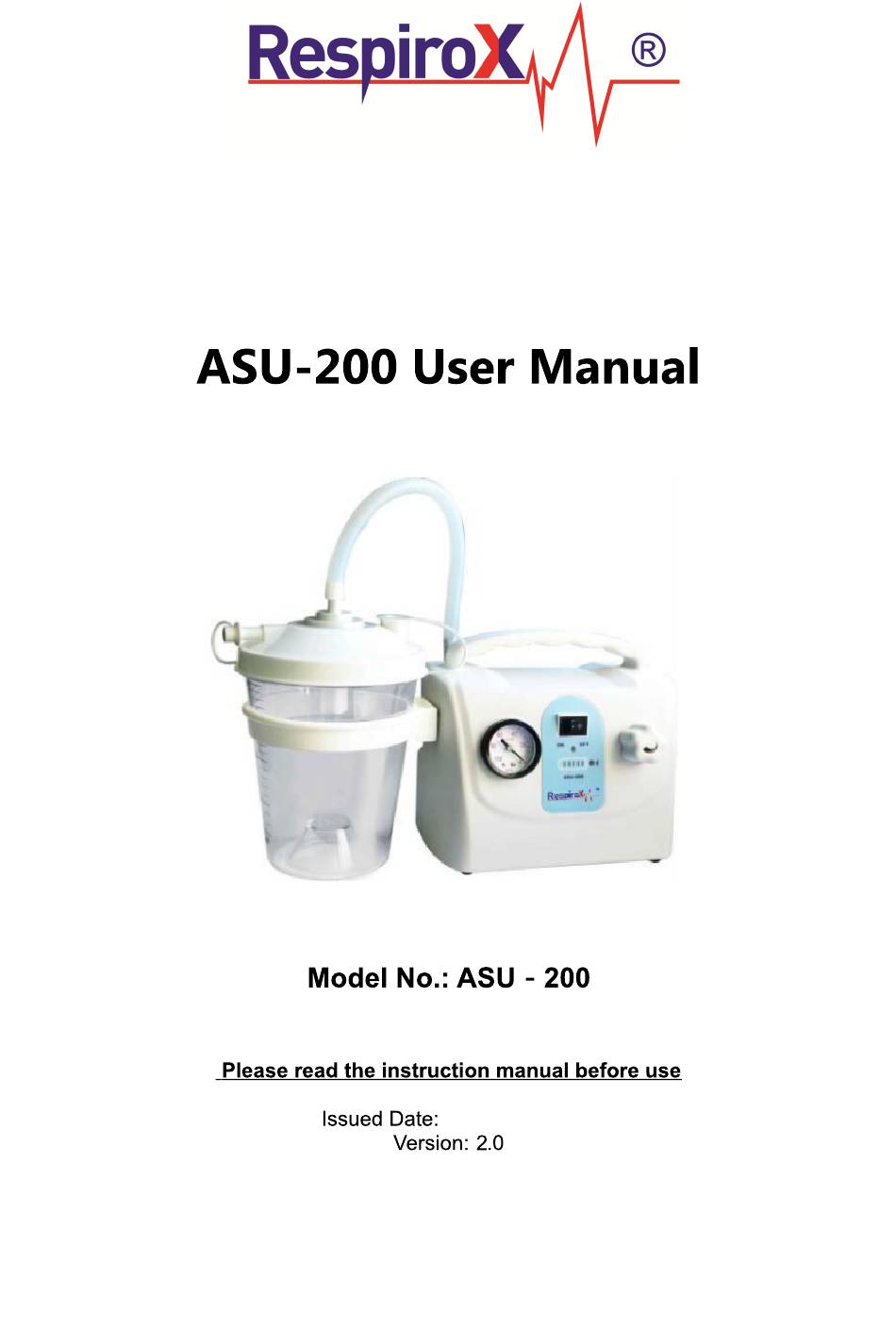

- Page 2 "RESPİROX" Suction Unit ASU-200 User Manual...
-
Page 3: Table Of Contents
Contents １、 Introduction ---------------------------------------------------------------- 2 ２、 Product Description --------------------------------------------------------2 ３、 Set-up ----------------------------------------------------------------------- 3 ４、 Operation Instruction-------------------------------------------------------3 ５、 Cleaning & Maintain -------------------------------------------------------4 ６、 Troubleshooting ------------------------------------------------------------4 ７、 Technical Specification -----------------------------------------------------5 ８、 Power Adapter---------------------------------------------------------------5 ９、 Symbol Definitions ---------------------------------------------------------6 １０、 Electromagnetic Compatibility---------------------------------------------7... - Page 4 Please read the instruction manual before use Warning & Caution 1. This device is intended for use by professional. The manufacture recommends that user train on use this device. 2. Do not place or store product where it can fall or be pulled into a tub or sink. 3.
-
Page 5: １、 Introduction
Chapter 1. Introduction 1.1 General Information Intend Use The device is used to remove fluids from the airway or respiratory support system and infectious materials from wounds. The device creates a negative pressure (vacuum) that draws fluids through disposable tubing that is connected to a collection container. The fluids are trapped in the collection container for proper disposal. -
Page 6: ３、 Set-Up
Chapter 3. Set-up Connect the connection tube on the vacuum outlet. Connect the other side of connection tube on the suction container. Hook up the container with the container connection base. Connect either end of the suction tubing to the tubing connector then connect the other end to the bacteria filter. -
Page 7: ５、 Cleaning & Maintain
Chapter 5. Cleaning & Maintain Recommend that pour the liquid in the container before met the full line. Disinfected with diluted medical alcohol to clean the device surface after use. Disinfected with diluted medical alcohol to clean the accessories, such as suction container, connection tube, and suction tube…etc. -
Page 8: ７、 Technical Specification
Manufacturer UE60- AC Power 1/ea Dongguan Shilong Fuhua Electronic Co., 180334SPAX Cord for Ltd. ASU-200 The power adapter plug is also served to disconnect the device, not to position the equipment to make it difficult to operate the disconnection device. -
Page 9: Symbol Definitions
Chapter 9. Symbol Definitions Symbol Explain Symbol Explain Type BF applied part The patient tubing is Protect against solid foreign objects of 50 φ applied part. & Protected against vertically IP21 falling water drops Attention, Consult Serial number of the product accompanying documents Manufacturer... -
Page 10: １０、 Electromagnetic Compatibility
Chapter 10. Electromagnetic Compatibility... - Page 13 IMPORTER : Ece Tıbbi Cihazlar ve Medikal San.Tic.A.Ş Mail : destek@ecemedikal.com.tr Website : www.ecemedikal.net Telephone : 444 78 96 Sümer Mh. 1782/17 The İstanbul Evleri Prof. Dr. Turan Güneş C No:57/Ac ZEYTİNBURNU İSTANBUL Turkey 6F.-3, No.24, Wuquan 2nd Rd., Xinzhuang Dist., New Taipei City 242 Taiwan...
