Summary of Contents for Respirox SS-6A

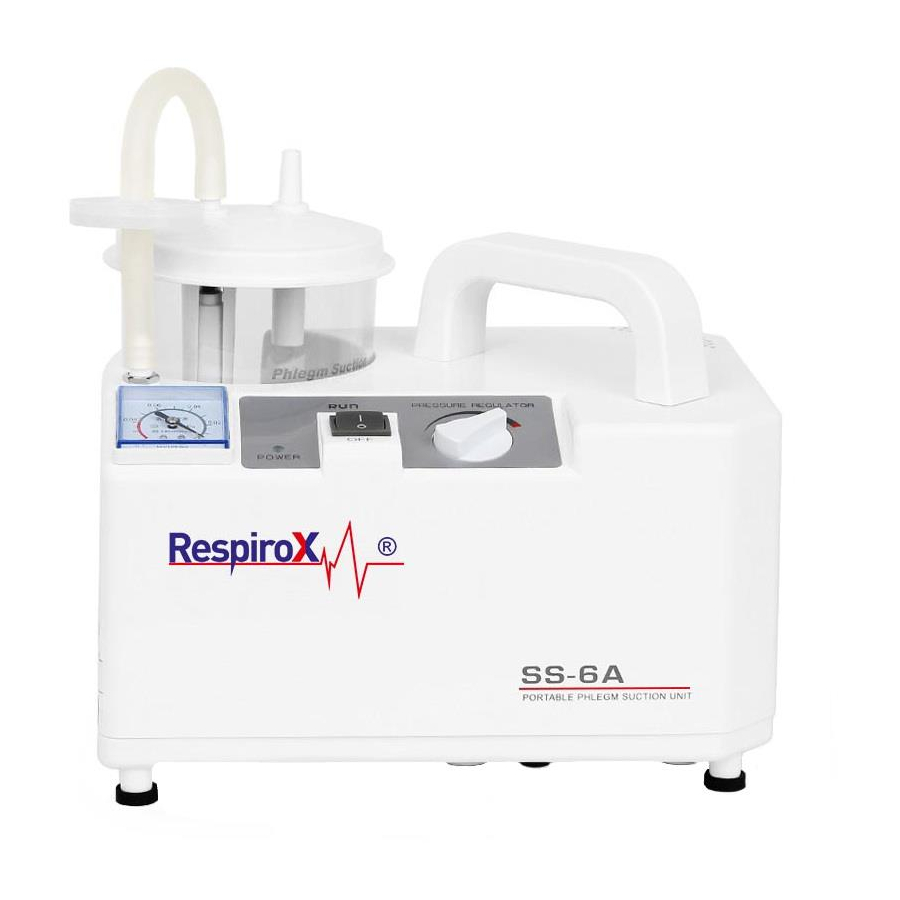

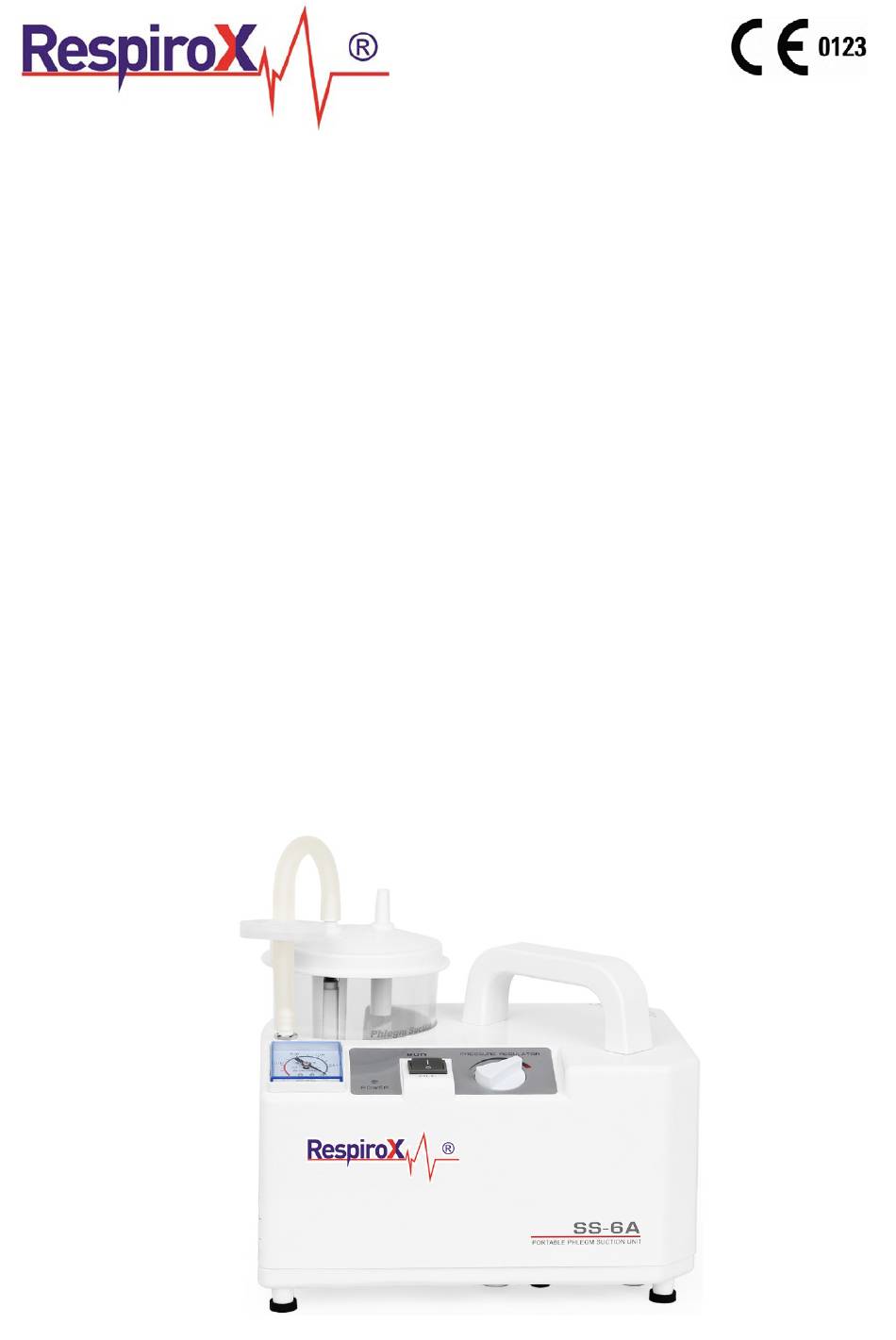

- Page 1 Instructions on Portable Absorb Phlegm Apparatus SS-6A...
- Page 2 Product Features General Structure & Working Principle • • • • • • • (Exhaust outlet) (Suction inlet) (Silencer) (Vacuum pump) (Negative pressure regulating knob) (Overflow valve) (To phlegm suction tube) (vacuum meter) (air filter) (liquid holder)
- Page 3 Main Technical Performances 0.075 Mpa; (1) Limit negative pressure: 0.02 Mpa ~ limit negative pressure (2) Negative pressure regulating range: (3) Suction rate: 15L/min(SS-6A) 65dB (A) (4) Noise: 1000 ml/pc, 1 pc (5) Liquid holder: AC 220 V ±22V, 50Hz±1Hz...
- Page 4 Power line connection Connect the plug with the power source. Turn on the power supply, and the power indicator will illuminate. Note: The power plug is used for power shut-off, and the power socket shall be grounded reliably. Connector inspection •...
- Page 5 Note: The liquid level still continuously ascends after the overflow device has been shut off, possibly due to: (1) Residual negative pressure still in the holder; (2) Valve mouth not fully closed. For Item (1), the liquid level in the holder will not ascend when the suction tube conductor is placed again into the liquid as suctioned, and for Item (2), the liquid level still ascends.
- Page 6 • Emergency measures in the process of application: --- Quickly loosen the negative pressure regulating knob to release the negative pressure if the suction tube is blocked by strong phlegm and mucus, and start suction again after changing the suction tube; --- Adopt the above method to loosen the negative pressure regulating knob if it is not easy to take out the suction tube after completion of suction or the tube is adhered to human body tissue.
- Page 7 Note 2: Necessary to frequently change air filter and destroy it centrally. 3. Changing the fuse tube The fuse tube is mounted at the rear of the base. Switch off the power supply, and turn it counterclockwise and open, then, start changing the tube. 4.Maintenance •...
-
Page 8: Troubleshooting
Trouble shooting Problem & Reason Possible Solution Remarks Question Limit a.Holder mouth leakage; a. Remove dirt, tighten or change the b. Change the negative broken suction holder cover, seal ring, and connector; tube pressure < b.Leakage on connecting b. Re-tighten each connection point; points;... - Page 9 Suction conductor (2m long): • Air filter: • Fuse tube (RF1 et>5X20/1.5A) two sets • one pc respectively Suction tube( SS-6A) • one pc Instruction manual: • one copy Product warranty card: • one copy Certificate of quality:...
- Page 10 Jiangsu Shuangsheng Medical Appliance Co., Ltd. Dandong Industrial Park, Danyang City (No. 12 Lingkou 122 Highway Industrial Zone), 212353 Danyang,P.R.China(96468) Prolinx GmbH Brehmstr. 56 40239, Düesseldorf GERMANY Tel: 0049 2131 4051968-0 Fax: 0049 2131 4051968-9 ECE TIBBİ CİHAZLAR VE MEDİKAL SAN. TİC. A.Ş İTHALATÇI: Sümer Mahallesi Prof.
