ASSEMBLY MANUAL

BRUKSANVISNING

NOTE: 50% TIGHTEN BEFORE FIXING ALL BOLTS

VIKTIGT – LÄS MONTERINGSANVISNINGARNA NOGA INNAN DU BÖRJAR

Please don't remove the batch code sticker at back side of this product!

Any feedback please take picture of this batch code for traceablity purpose

Ta inte bort ettiketten med batchnummer som ﬁnns på möbeln. Om du behöver hjälp med service eller reklamation av din möbel –

ange möblensbatchnummer till återförsäljaren, så att du kan få rätt reservdelar till just din möbel.

XX-YYWW

SKU: 166-1-55

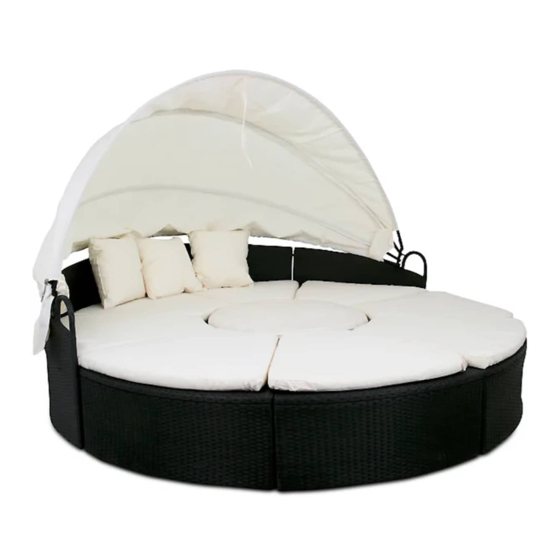

MODEL NAME: Höllviken

MODELLNAMN:

Höllviken

Konsumentkontakt

Arc E-commerce AB

Box 3124

13603 Haninge

Need help?

Do you have a question about the Hollviken and is the answer not in the manual?

Questions and answers

Summary of Contents for Lyfco Hollviken

Page 1 ASSEMBLY MANUAL BRUKSANVISNING NOTE: 50% TIGHTEN BEFORE FIXING ALL BOLTS VIKTIGT – LÄS MONTERINGSANVISNINGARNA NOGA INNAN DU BÖRJAR Please don’t remove the batch code sticker at back side of this product! Any feedback please take picture of this batch code for traceablity purpose Ta inte bort ettiketten med batchnummer som ﬁnns på...
Page 2 Attention! Please note that at first all screws should be inserted slightly by hand! Turn 2-3 times so that the screw grips on its own and connects all elements loosely. The screws must only be driven in tightly when all elements are connected with each other in this way. Otherwise the setup won´t be possible.
Page 3 Component Hardware 2 pcs Inside Frame 24 pcs Bolt M6 x 40 Outside Frame 2pcs 20 pcs Bolt M6 x 30 6 pcs Top Frame 80 pcs Bolt M6 x15 2 pcs Panel Side Frame D 1 pc Right Back Frame E 12 pcs Screw Right Back Frame F...
Page 4 Component Hardware 1 pc Left Back Frame I Seat Cushion 8 pcs 1 pc Left Back Frame K 1 pc Round Cushion 3pcs Frame L 36 pcs Path Frame M 1 pc 3 pcs Back Pillow Frame N 1 pc 1 pc Allen key 8 pcs...
Page 5 Component Component 1 pc Inside Frame 2 pcs Lid Open Frame 1 pc 1 pc Inside Frame Bottom Frame Outside Frame 1 pc 1 pc Bottom Frame 1 pc Outside Frame Bottom Frame 1 pc 1 pc 1 pc Top Frame Bottom Frame 1 pc 1 pc...
Page 6 STEP 1 STEP 2 Connect Inside Frame (A1) & Panel Side Frame (D) Connect part from STEP 1 & Outside Frame (B) with Bolt (2) with Bolt (2) STEP 3 STEP 4 Connect part from STEP 2 & Top Frame (C) with Connect part from STEP 3, Lid Open Frame (D1) &...
Page 7 STEP 5 STEP 6 Connect part from STEP 4 & Top Frame (C1) with Connect part from STEP 5 & Rain Cover (R1) Bolt (1) , (3) & Path (9) STEP 7 Connect part from STEP 6 & Bottom Frame (Q), (Q1) with Bolt (1), (3) &...
Page 8 STEP 9 STEP 8 Connect Inside Frame (A2) & Panel Side Connect part from STEP 8 & Outside Frame (B) Frame D (D) with Bolt (2) with Bolt (2) STEP 10 STEP 11 Connect part srom STEP 9 & Top Frame (C) Connect part from STEP 10, Outside Frame (B2) &...
Page 9 STEP 13 STEP 12 Connect part from STEP 11 & Top Frame (C2) Connect part from STEP 12 & Rain Cover (R) with Bolt (1), (3) & Path (9) STEP 13’ Connect part from STEP 13 & Bottom Frame (Q2), (Q3) with Bolt (1), (3) &...
Page 10 STEP 13 Connect Inside Frame (A) & Panel Side Frame (H) with Bolt (2) STEP 14 Connect part from STEP 3 & Right Back Frame E (E)
Page 11 STEP 15 Connect part from STEP 14 & Right Back Frame F (F) with Bolt (3) & Path (9) STEP 16 Connect part from STEP 15 & 2pcs Top Frame (C) with Bolt (1) & (2)
Page 12 STEP 17 Overturn STEP 16, Connect part from STEP 16 with Path (9) & Bolt (3) STEP 18 Overturn STEP 17 to complete the corner R3...
Page 13 STEP 19 Connect Inside Frame (A) & Panel Side Frame H (H) with Bolt (2) STEP 20 Connect part from STEP 19 & Left Back Frame I (I) with Bolt (2)
Page 14 STEP 21 Connect part from STEP 20 & Left Back Frame K (K) with Path (9) & Bolt (3) STEP 22 Connect part from STEP 21 & 2x Top Frame C (C) with Bolt (1) & (2)
Page 15 STEP 23 Overturn STEP 18, connect part from STEP 22 with Path (9) & Bolt (3) 3 3 3 3 STEP 24 Overturn STEP 23 to complete the corner R4...
Page 16 STEP 25 Connect part from STEP 18 & part from STEP 24 with Path (9) & Bolt (3) STEP 26 ( T1 Assembly) Connect Frame M (M), Frame N (N), 2 pcs Frame O (O) with Srcew (4)
Page 17 STEP 27 ( T2,T3,T4 Assembly) Connect 2xFrame O (O), Frame L (L) & Frame P (P) with Srcew (4) STEP 28 Connect part from STEPS 26 & 27 with Fabric (5)
Page 18 STEP 29 Connect part from STEP 28 & 25 with Bolt (3) STEP 30 Connect part from STEP 29 & Gaslift (6) with Bolt (2) & Washer M8 (12)
Page 19 STEP 31 Arrange complete as below image STEP 32 Put the Round Table (G) in the middle of the complete part from STEP 31...
Page 20 STEP 33 Put on 8x Seat Cushion (7) & Round Cushion (8) STEP 34 Put on Back Pillow (10) to complete Sofa Bed Finish...
