Leviton 9866-B0W Quick Start Manual

WARNINGS:
• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR
FUSE AND TEST THAT POWER IS OFF BEFORE WIRING!
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult an electrician.

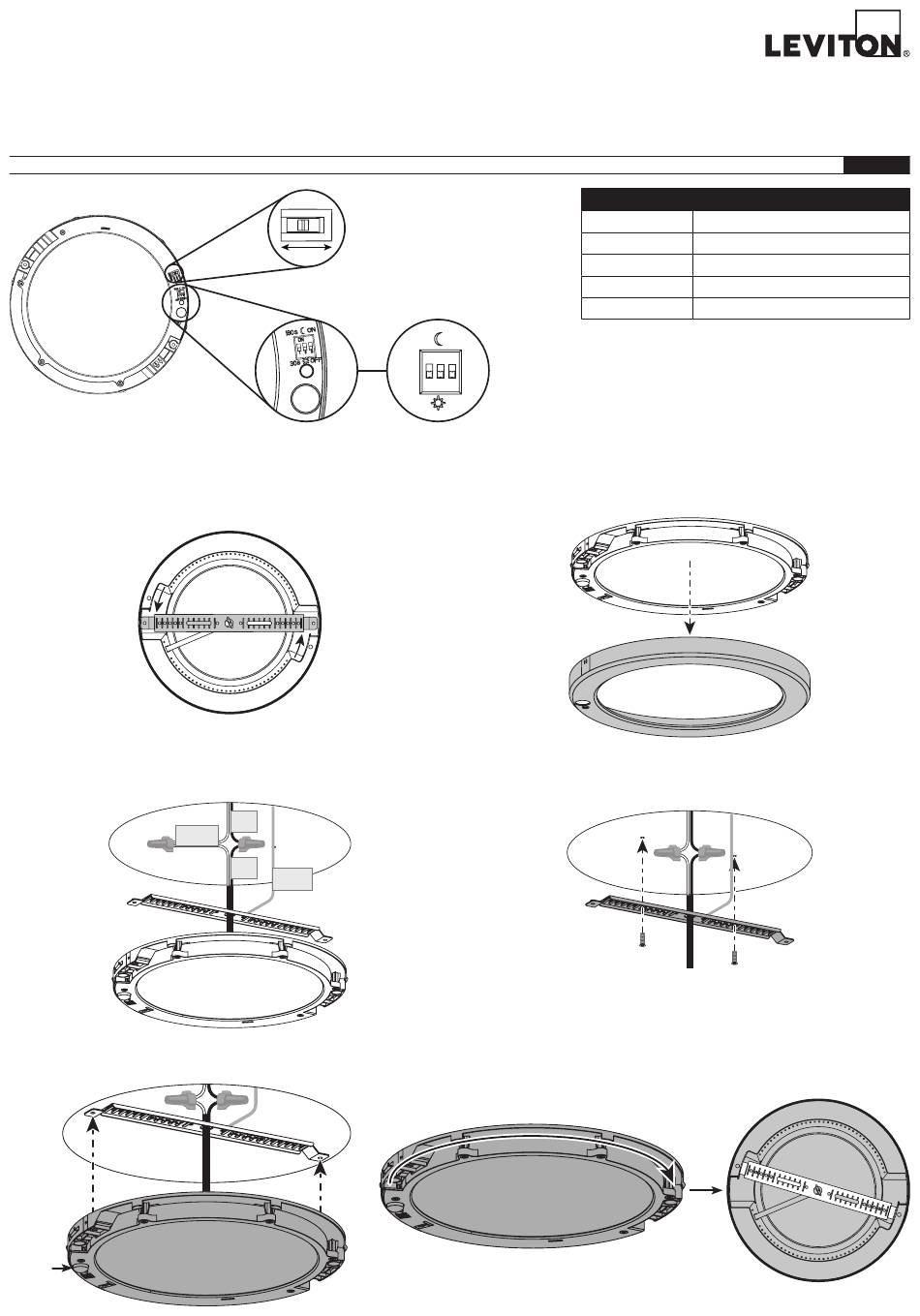

Product Overview

Flush-Mount with Bracket

WARNING: TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER
at circuit breaker or fuse and test that power is off before wiring!
1.
Rotate bracket counter clockwise.
3.
Wire the device as shown below.
NOTES:
• Run the main wire through the middle of the bracket.
• Wire Ground wire to green screw on the mounting bracket.
NEUTRAL
5.
a.
Push light body up to bracket. Be sure to align the
sensor towards the door or entry point.
Sensor

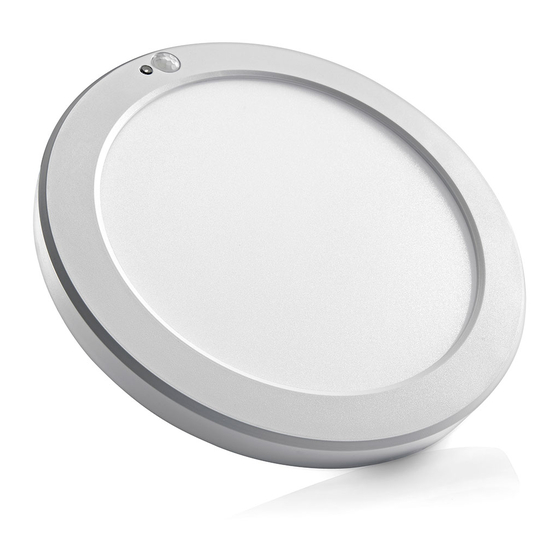

8" LED Downlight with Motion Sensor
INSTALLATION INSTRUCTIONS
3000K: Soft white, yellowish
4000K: Cool white
5000K: Daylight, bright white
CCT changeable
Motion Sensor
LINE LINE
(Black) (Black)
(White)
LOAD LOAD
(Black) (Black)
GROUND GROUND
(Green) (Green)
Cat. No. 9866-B0W
CAUTIONS:
• For indoor applications only.
READ AND SAVE THESE INSTRUCTIONS.
•
Switch 1: 30/180 seconds auto time-off options
180 ON
s
Switch 2: Sensor Modes
ON
• Daytime – Turns on lamp regardless of ambient light.
1 2 3
• Nighttime – Only turns lamp on when sensor detects motion and
30 OFF
there is no ambient light.
s
Switch 3: Sensor ON/OFF
• Turns off sensor so lamp can be used with a single pole switch.
2.
Remove surface cover.
4.
Tighten bracket until flush against the ceiling surface. DO NOT over
tighten. Over tightening will bend the bracket and make installation of
lamp difficult.
NOTE: Use 1/2 in. or 3/4 in. depending upon the depth of the ceiling box.
b.
Rotate light body clockwise to engage with
the bracket.

Specifications

LED Consumption 18 Watts
1440 Lumens
Light Output
Lamp Color 3000k, 4000k, 5000k
Temperature -25 C < Ta < +40 C
Operating Voltage 120V +/- 10% @ 60Hz
Bracket engaged.
DI-000-09866-05A
ENGLISH
