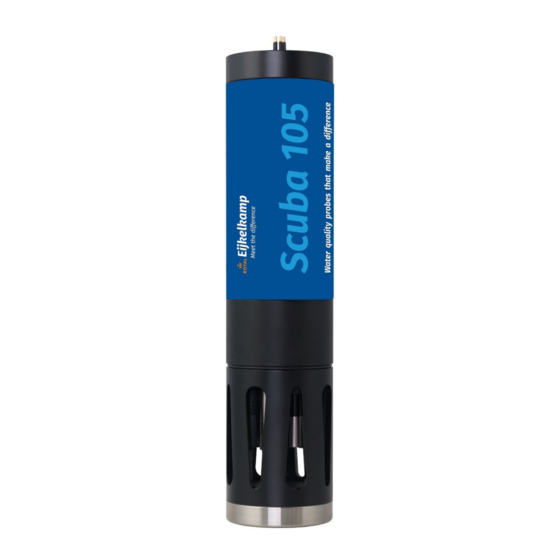

Scuba and Scuba Trimeter water quality probes
User manual
This manual covers the Royal Eijkelkamp water quality probes Scuba and Scuba Trimeter.
For simplicity the term "Scuba" is used collectively for all models.
Meet the difference
Nijverheidsstraat 9,
6987 EN Giesbeek, The Netherlands
T
+31 313 88 02 00
E
info@eijkelkamp.com
I
royaleijkelkamp.com
© 2022-07
M-Scuba

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Scuba and is the answer not in the manual?

Questions and answers

Related Manuals for EIJKELKAMP Scuba

Summary of Contents for EIJKELKAMP Scuba

  • Page 1 Scuba and Scuba Trimeter water quality probes User manual This manual covers the Royal Eijkelkamp water quality probes Scuba and Scuba Trimeter. For simplicity the term “Scuba” is used collectively for all models. Meet the difference © 2022-07...

  • Page 2: Table Of Contents

    Setting up logging runs, logging file management, logging interval ..............30 Activating Scuba logging ..........................30 Am I using battery pack power or cable power? ..................... 31 Logging with an Internal Battery Pack ......................31 5.7.1 Changing IBP batteries in Scuba 50, 65, and Trimeters and activating logging ............31...
  • Page 3 14 M-Warranty Scuba water quality probes Do you need help? Royal Eijkelkamp has the best customer service in the multiprobe market, so there’s no reason to get bogged down with a problem. We welcome your call at +31 313 880 200, or email at...

  • Page 4: About This Manual

    Bluetooth battery, a tablet or smart phone). 3. The storage/calibration cup protects the sensors when the Scuba is not in use (keep a few ounces of tap water in the storage/calibration cup when the Scuba is not being used). And with the lid removed, it holds your calibration solutions.

  • Page 5: Talk To Your Scuba

    Flash drive When the dialog box shown below opens, click Install Scuba software to upload the Scuba user interface software and the USB driver software onto your PC. Depending on which version of Windows you are accursed with, you might have to answer the usual questions about your intention to load new software on your PC.
  • Page 6 Click the Scuba icon to connect your PC and Scuba. The home page will appear, showing the Scuba’s real-time data and various menu options. You can close the program by clicking the X in the upper right corner.

  • Page 7: A Short Exercise

    1.3 A short exercise Let’s do a quick exercise to show how easy the Scuba is to use. We will connect the instrument to a PC, calibrate conductivity, and check the calibration log for the conductivity calibration information. Connect your Scuba to your PC with the USB adapter and either a data cable or underwater cable.

  • Page 8: Scuba Basics

    2.1 Deployment specifications The Scuba can be used in natural water up to 50 degrees C and 200 meters deep, except that ISE’s are rated to 10 meters deep, and TDG sensors and low-range depth should go no deeper than 25 meters.

  • Page 9: Underwater Cables

    A sequence of red and amber LED flashes tell you the voltage of your battery pack if you have activated logging. When you first power-up your Scuba, the red LED will blink five times to indicate that logging is activated and to indicate the first 3.5 volts of battery power, and then one amber blink for each volt, and one red blink for each half volt.

  • Page 10: The Usb Converter

    Eijkelkamp’s USB converter converts your Scuba’s data stream to a USB port. Newer models have a power port on the side that you can use to provide power to the Scuba if USB power is insufficient, or to protect your laptop’s battery. The connector is fairly standard for power supplies, so you can plug in many third-party power supplies –...

  • Page 11: The Scuba Control Software

    3. The Scuba control software 3.1 Scuba control software map...

  • Page 12: Home Page

    3.2 Home page We call the Scuba control software’s home page the “home page” because you can access all the Scuba functions from this screen. The home page functions are: These two These eight buttons are “hot buttons are pull buttons”;...

  • Page 13: Hot Buttons

    Click the “Scuba logging is OFF” (or, “Scuba logging is ON”) hot button to enable or disable the Scuba’s logging function. It lets you tell the Scuba that you will be deploying it in the field for unattended logging. Clicking the hot button toggles the logging on and off. Generally, logging should be off – turn logging to ON only when you’re preparing for unattended deployment.

  • Page 14: Pc" Pull-Down Menu

    3.4 “PC” pull-down menu The Scuba has two pull-down menus, called PC and Scuba. They’re called pull-downs because when you click on them, a bunch of hidden buttons appear. When you click on the “PC” pull-down menu, you get six buttons to choose from: Click Set Scroll Interval if you wish to change the time for which lines of data on your data display screen are updated.

  • Page 15: Scuba" Pull-Down Menu

    Scuba’s at the same time (like in a fish hatchery with multiple tanks). In that case, you can click COM Ports to see the list all the COM ports that your PC knows about and choose another COM port corresponding to another for the Scuba.

  • Page 16: Calibration Log

    3.5.3 Calibration log Click on the Cal Log button to see, you guessed it, the calibration record. This is a lifetime, permanent record of all calibration changes for your Scuba (4.4). 3.5.4 Sensors and parameters list Click on the Sensors and parameters list button enables the parameters listed by clicking the box (to the left of the parameter name) to produce the check mark.

  • Page 17: Calibrate

    3.5.5 Calibrate Click on the Calibrate button in the Scuba pull-down menu to get a screen listing all the parameters that can be calibrated in a Scuba. Click on the parameter you wish to calibrate to see its calibrate screen. This screen has calibration instructions for the specific parameter and shows the current reading for that parameter.

  • Page 18: Create A Custom Parameter

    0.88 to mimic the readings that you would get with the other turbidity sensor. The software specific to turbidity has changed as well. In most cases, you can update your Scuba’s software with these new software if you wish to take advantage of the new features dealing with turbidity.

  • Page 19: Sensors And Calibrations

    4.2 Basics of parameter calibrations The Scuba never guesses parameter values, so you have to calibrate it from time to time by simply telling the instrument what it should read in a calibration situation for which the correct parameter value is known. Here’s the general procedure;...

  • Page 20: Choosing Calibration Standards

    4.3 Choosing calibration standards For best results, choose a calibration standard whose value is close to what you expect to see in the field. For example, calibrate with a 1413 μS/cm specific conductance standard if you expect to see specific conductance readings between 500 and 1000 μS/cm in the field.

  • Page 21: Calibration Record ("Cal Log")

    If your response is 80 μA, your SRF would be 80%. When you press the OK button to accept a calibration, the Scuba automatically accepts your calibration if the SRF is between 60% and 140%. If the SRF falls outside that range, you will be cautioned to check your standard value, make sure the sensor is clean, make sure the reading has stabilized, etc.
  • Page 22 The manufacturers of optical-DO sensors recommend that you not calibrate the zero-DO point. However, we support zero-DO calibration in the Scuba software, and think it’s a good idea to check your sensor’s zero from time to time in either of three ways: Dissolve a few grams of sodium sulfite and a pinch of cobalt chloride in a half-litre of tap water.

  • Page 23: Conductivity

    Remove the reference cap by unscrewing it from the reference sleeve and discard old reference electrolyte. Fill the sleeve completely with fresh pH reference electrolyte (KCl saturated with silver chloride). Tap the Scuba a few times to dislodge any bubbles.

  • Page 24: Orp

    Eijkelkamp’s depth sensors are usually inside the instrument, with a small pressure port that can be seen on the outside of the Scuba bottom cap. They require no regular maintenance, but you might check occasionally to make sure the...

  • Page 25: Turbidity

    Depth calibration is nothing more than “zeroing” the sensor in air, where one assumes the depth to be zero: Make sure the Scuba is not in the water. Follow the Scuba control software’s calibration instructions. Notice that the depth sensor cannot distinguish between water pressure and the air pressure over that water (i.e.

  • Page 26: Fluorometers

    Notice that the Allen set screw seats on the flat side of the wiper motor shaft.  The new Scuba software version adds several turbidity features for the hard-core turbidity people. Please see 3.6. 4.14 Fluorometers Eijkelkamp’s chlorophyll, rhodamine, blue-green algae, CDOM, fluoroscein,...

  • Page 27: Ion-Selective Electrodes (Ise's)

    If your Scuba is equipped with more than one ISE, use care when replacing tips so that you don’t put a tip on the wrong sensor (for example put a nitrate on the sodium sensor).

  • Page 28: Total Dissolved Gas (Tdg)

    The sensor looks like a light bulb and receives light from all directions except the “blind spot” at its base. Eijkelkamp mounts the PAR sensor a few inches away from the multiprobe, facing away from the multiprobe, so that the multiprobe is in the blind spot.

  • Page 29: Set Barometric Pressure And Set Time And Date

    BP and altitude boxes. Click on the Set Date and Time button to see the Scuba’s opinion on time and date. If you wish to change any of those values, just type the new value in the appropriate box or click the box at the bottom of the screen (above, right) to...

  • Page 30: Data Logging

    For instance, the HDO dissolved oxygen sensor takes 20 seconds to warm up and the turbidity sensor takes 25 seconds to warm up. So, the Scuba turns on the DO sensor 20 seconds, and the turbidity sensor 25 seconds, ahead of the time data is required.

  • Page 31: Am I Using Battery Pack Power Or Cable Power

    Don’t forget to activate logging. All you have to do to start logging for Scuba 35 and 40 models is load batteries and, when you get to the field, turn the IBP switch on the top cap to “ON”. Don’t forget to activate logging.

  • Page 32: Changing Ibp Batteries In Scuba 75 Models And Activating Logging

    5.7.2 Changing IBP batteries in Scuba 75 models and activating logging Replace all batteries at the same time and use the same brand of battery. Clean all moisture, dirt, grit and any other debris off the Scuba because you are going to expose sealing surfaces as you change the batteries.

  • Page 33: Changing Ibp Batteries In Scuba 90 And 105 Model And Activating Logging

    Battery Pack (EBP), a watertight housing with a cassette for batteries that can be removed from the Scuba. Most EBP’s are used for logging, but they can also be used to power the Scuba while it is connected to a data display if the data display cannot provide sufficient power.

  • Page 34: Changing Ebp Batteries And Activating Logging

    5.8.2 Changing EBP batteries and activating logging Replace all batteries at the same time and use the same brand of battery. Clean all moisture, dirt, grit and any other debris off the Scuba because you are going to expose sealing surfaces as you change the batteries.

  • Page 35: Installing And Removing The Ebp

    Clean the connectors on the EBP and Scuba and add a little silicone grease to each. Find the white dot on the hexagonal sleeve on the bottom of the EBP and note that the Scuba connector has six pins with a gap in the outer circle of pins.

  • Page 36: Batteries And Battery Life

    That pressure can damage the instrument and/or you. It’s a good idea to remove the batteries from the Scuba battery pack if the Scuba is not going to be used for a while. This helps prevent battery leakage.

  • Page 37: Controlling Sensor Fouling

    Available on Scuba 75, 90, and 105 models with turbidity sensors. Eijkelkamp’s mini cleaner is used for sensor brushing when the Scuba does not have a turbidity sensor (and hence cannot have the extended turbidity brush). It can be programmed for frequency of brush cycles and number of sweeps per cycle.

  • Page 38: Small Screen Data Displays

    PC’s, but with some concessions to make the small screens readable (especially in bright sunlight). Nonetheless, the small-screen menu structures are nearly identical to the screens you see when operating a Scuba with a PC (3.1). 6.2 Connecting the Amphibian 3 with a cable (Please see 6.4.1 if you wish to connect to your Amphibian 3 via Bluetooth instead of a cable.)

  • Page 39: Connect To "Classic Bluetooth" Android Data Displays

    “Save”. Now select “COM Ports” at the top of the screen. Next select “New Outgoing Port”, then your Scuba BT will show up highlighted. Select “Next” from the bottom and use the pull-down menu to select an available COM port, such as COM5.
  • Page 40 Home Page Snapshot Menu Create New Snapshot File Snapshot Files Snapshot Annotation View Snapshot File Contents...
  • Page 41 Snapshot Report About: Amphibian Software Version Calibrate Menu Calibration: Conductivity 1 Calibration: Conductivity 2 Calibration: Acceptance...
  • Page 42 Calibration: Barometric Pressure 1 Calibrate: Set Time and Date Calibration: Barometric Pressure 2 PC Sync Report Sensor and Parameter List Set Scroll Interval...
  • Page 43 Logging Setup: Browse Manage Scuba Files Scuba log Scuba Logging Setup: Interval and Wiping Logging Setup: Interval and Wiping Scuba Graphs Turned On...

  • Page 44: Screens Scubalink App

    6.5.2 Screens ScubaLink App...

  • Page 45: Frequently Asked Questions

    Judgment gained from observing your field conditions and data requirements tells you when to maintain sensors. If you are logging data over long periods, the time when you collect your data from the Scuba is a good time for maintenance and calibration (2.10).
  • Page 46 You’ve been paying € 175 a year to replace DO caps, haven’t you? It’s OK; lots of people have been in the same boat. Now that you are a Scuba owner, you can expect your DO caps to last five years or more. You can see the condition of your cap when you calibrate DO.

  • Page 47: Calibration And Maintenance

    SRF calculation, but the effect is the same). If your response is 80 μA, your SRF would be 80%. When you click the OK button to accept a calibration, the Scuba automatically accepts your calibration if the SRF is between 60% and 140%.
  • Page 48 Milligrams per litre tells you just that: how many milligrams of oxygen are dissolved in one litre of water. For instance, if your Scuba was reading 6.0 mg/l and the saturation tables told you that at that temperature, salinity, and barometric pressure the saturation value was 8.0 mg/l, then your % sat would be 6/8 =...

  • Page 49: Communication And Software

    External Battery Pack is shown as cable voltage. There is no fixed cut-off point, but any time the battery pack or cable voltage drops below about 5 VDC, the voltage may not be adequate for the Scuba to boot properly.

  • Page 50: General Faq's

    Can I add sensors to my Scuba? The Scuba can handle as many as 12 sensors. If you have fewer than 12 and wish to add one or more sensors, we can do it. Why do you build the Scuba the way you do? Unlike the products of lesser manufacturers, the Scuba uses the same basic electronic and mechanical components regardless of how many sensors you order.
