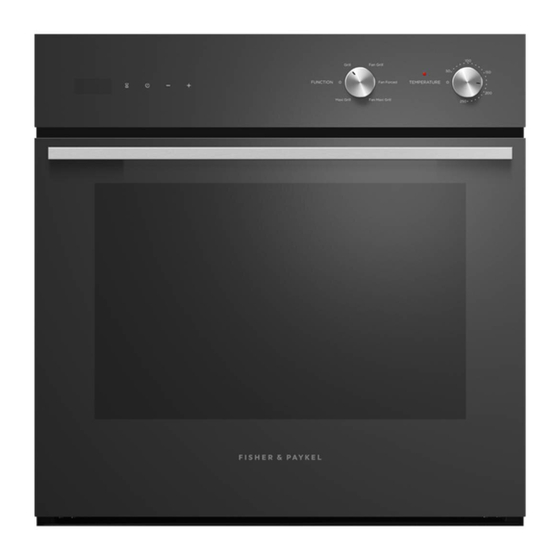

- Page 1 BUILT-IN OVEN CONTEMPORARY OB60SC5LB, OB60SC6LEB & OB60SC7LEB INSTALLATION GUIDE NZ AU...
- Page 2 SAFETY AND WARNINGS READ AND SAVE THIS GUIDE WARNING! WARNING! Electric Shock Hazard To avoid hazard, follow these instructions carefully before installing or using this appliance. Failure to follow this advice may result in electric shock or death. Please make this information available to the person installing the appliance—doing so could reduce your installation costs.
- Page 3 INSTALLATION CONSIDERATIONS COMPONENTS REQUIRED Before installation, please ensure the following: PARTS SUPPLIED The countertop and oven cavity are square and level, and are the required dimensions. The installation will comply with all clearance requirements and applicable standards and regulations. The isolating switch will be easily accessible to the customer with the oven installed. The electrician provides sufficient free length of power supply cable to reach from the bottom rear of the cavity to at least 1.5 metres in front of the bottom edge of the opening.
- Page 4 PRODUCT DIMENSIONS FRONT PROFILE PRODUCT DIMENSIONS A Overall height of oven B Overall width of oven C Overall depth of oven (excluding handle and dials) D Height of chassis E Width of chassis F Depth of chassis G Depth of oven frame and control panel (distance between front of chassis and front of oven door, excl.
- Page 5 CABINETRY DIMENSIONS PROUD INSTALL 16-20mm PROFILE PLAN FLUSH INSTALL CABINETRY DIMENSIONS 16-20mm A Minimum inside width of cavity B Overall width of cabinetry C Minimum inside height of cavity D Overall height of cabinetry E Minimum inside depth of cavity If installing a cooktop above the oven, ensure adequate clearance is provided as per the cooktop manufacturer’s instructions.
- Page 6 DISCARD PACKAGING RESPONSIBLY SECURE THE OVEN TO THE CABINETRY Remove the accessories box from the top of the oven and set aside. Recycle responsibly Do not lift the oven by the door handle. Do not over-tighten the screws. ELECTRICAL CONNECTION Do not seal the oven into the cabinetry with silicone or glue.
- Page 7 INSTALLER CHECKLIST Read all installation guidance in this document to see if the unit has been correctly installed. Ensure that installation has been completed correctly before use. TO BE COMPLETED BY THE INSTALLER … … Ensure the oven is level and securely fitted to the cabinetry. Set the oven to Bake at 50°C.
- Page 8 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2020. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
