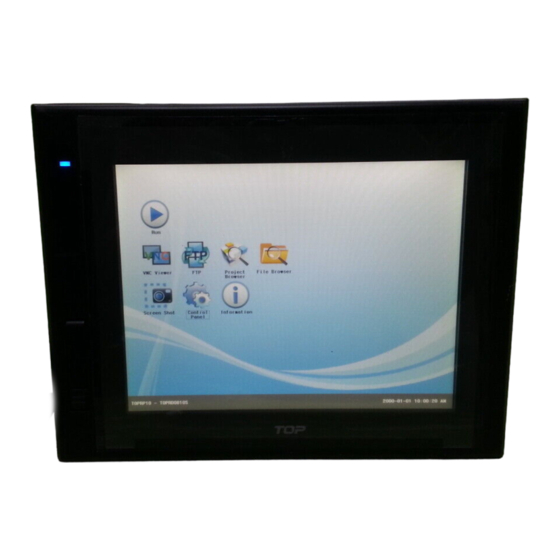

TOPR Series (Process Module) Hardware Manual
M2I Corporation
Industrial HMI Touch Panel
TOPR Series (Process Module)
Hardware Manual
Thank you for purchasing the industrial HMI touch panel series of M2I corporation.
Please read this manual carefully to know installing, wiring, operating this equipment for safe use of this
product.
M2I Corporation
1 / 18
11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for M2I TOPR Series
Summary of Contents for M2I TOPR Series
- Page 1 Industrial HMI Touch Panel TOPR Series (Process Module) Hardware Manual Thank you for purchasing the industrial HMI touch panel series of M2I corporation. Please read this manual carefully to know installing, wiring, operating this equipment for safe use of this product.
-
Page 2: Table Of Contents
Chapter 9 Products and Warning Label Location ........................17 Chapter 10 Products Label ..................................18 10.1 AC Power Models ............................... 18 10.2 DC Power Models ............................... 18 M2I Corporation 2 / 18 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 3: Chapter 1 Safety Precautions
Incorrect wiring could result in fire, damage or malfunctions. Tighten the terminal screw with the specified torque. If the screws of terminal are loose, it could M2I Corporation 3 / 18 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 4: Disposal Precautions
■ All field-wiring connections to this unit shall be from Limited Voltage / Limited Current, below 24 Vdc isolated secondary source with an output fuse, or Class 2. M2I Corporation 4 / 18 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 5: Chapter 2 Overview
Item Figure Quantity Process Module Manual Power Connector USB Memory USB Cable Accessories (Sold separate) User Options SD Card Front Protect Sheet M2I Corporation 5 / 18 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 6: Explanation Of Model Name
T : P + D 12 : 12.1” 30 : Premium S : SVGA(800*600) 15 : 15” X : XGA(1024*768) W: WQVGA(480*272) WVGA(800*480) M2I Corporation 6 / 18 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 7: Chapter 3 General Specifications
Class 3(Under 100Ω) Protection Classification IP2X(Display Module: IP65) 3.4 Structure Specifications Dimension(㎜) 201.6X147.6X39.8 Weight(㎏) 0.8Kg Cooling System Natural air circulation Case Material AL(Aluminium) M2I Corporation 7 / 18 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 8: Chapter 4 Parts Identification And Functions
TOPR Series (Process Module) Hardware Manual Chapter 4 Parts Identification and Functions 4.1 TOPRP Series 4.1.1 Product Dimension M2I Corporation 8 / 18 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... - Page 9 Input format: NTSC, PAL, SECAM 3.5mm Audio AUDIO output terminal, external speaker connection. ④ AUDIO Only TOPRP20 Plug * Video, WAV file playback support. M2I Corporation 9 / 18 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...
- Page 10 RS-232C/422/485 Serial Comm. with PLC ② COM1 DSUB9 (Switchable the Comm. Software select) RS-232C/422/485 Serial Comm. with PLC ③ COM2 DSUB9 (Switchable the Comm. Software select) M2I Corporation 10 / 18 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...
-
Page 11: Chapter 5 External Device Interface
Output RS-422/485 Send Data(-) *1 If VCC is required for an external device, connect pin 7(+ 5.0V) and pin 5(* 0.2A output). M2I Corporation 11 / 18 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 12: Ethernet Communication Specifications
Green/White Blue Not Available in 10BaseT Blue/White Not Available in 10BaseT Green Brown/White Not Available in 10BaseT Brown Not Available in 10BaseT M2I Corporation 12 / 18 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 13: Usb Interface
5.5 RCA Specification [Only TOPRP20] Type Item Specification Interface CVBS Standard Video signal NTSC, PAL or SECAM video Connector Type Composite RCA Jack (Yellow) M2I Corporation 13 / 18 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 14: Hdmi Specification [Only Toprp20]
Simple or Stranded wire (use copper conductor only) Conductor type Conductor length Temperature rating of the field installed 65 ℃ Only conductors M2I Corporation 14 / 18 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 15: Ground Wiring
C) Common ground (4) Use the cable more than 4mm . Put the point of the ground near product and shorten Ground line. M2I Corporation 15 / 18 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 16: Chapter 8 Maintenance
Only the authorized worker from M2I Corporation can check and repair problems related to malfunction of the machine. c. If the problem cannot be solved at the installation site, the equipment can be collected and moved to M2I Corporation. -
Page 17: Chapter 9 Products And Warning Label Location
TOPR Series (Process Module) Hardware Manual Chapter 9 Products and Warning Label Location M2I Corporation 17 / 18 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 18: Chapter 10 Products Label
Copyright: M2I corporation 2020.12 www.m2i.co.kr - When using M2I equipment, thoroughly read this datasheet and associated manuals introduced in this datasheet, also pay careful attention to safety and handle the module properly. - Store this datasheet in a safe place so that you can take it out read it whenever necessary.
