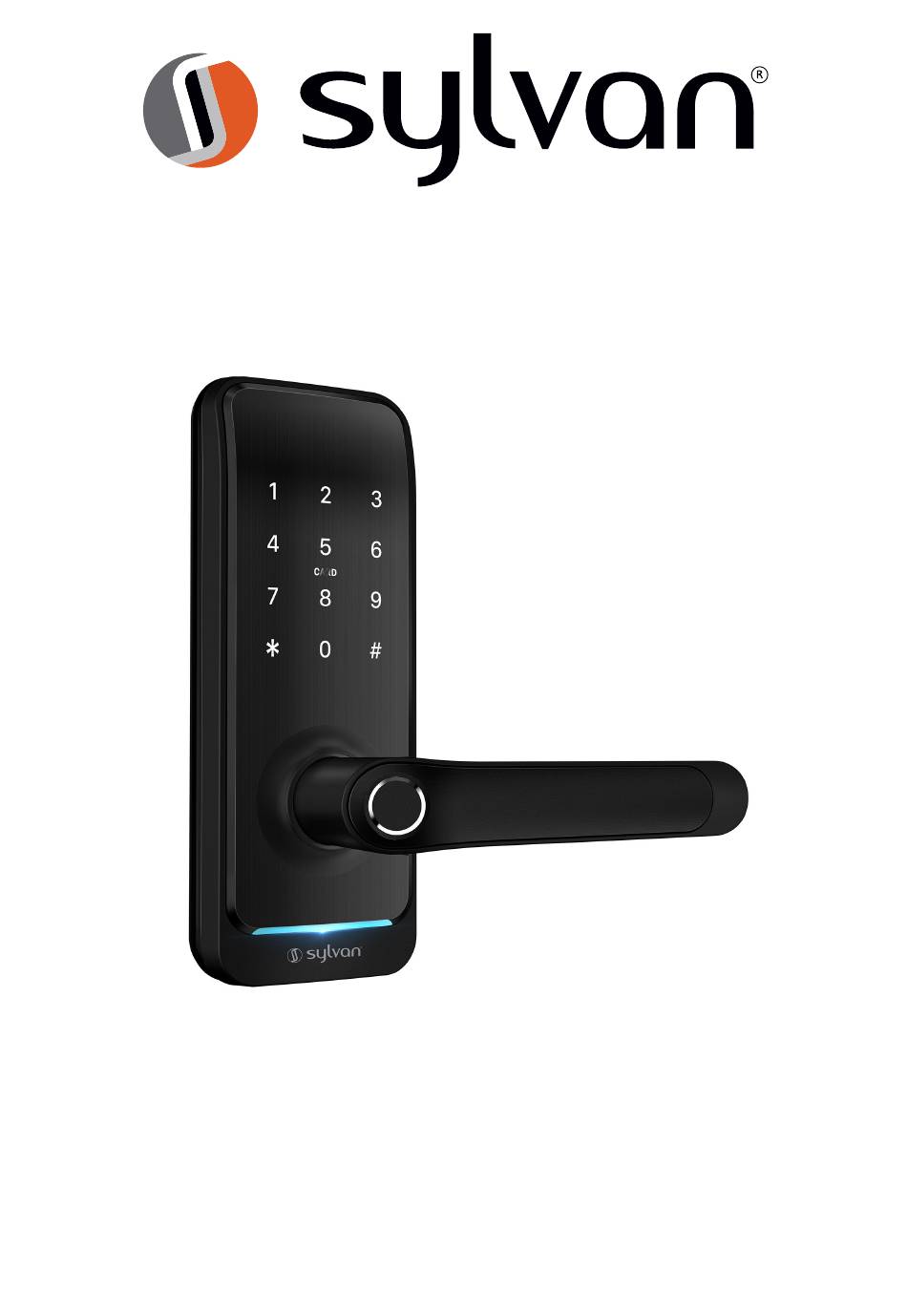

User Manual
SL40E
Special Attention:
1.Mechanical keys please keep outdoor, just in case keys are required to unlock door in low power conditions.
2.Please replace for the battery when low wattage alarm. (check app status)
3
.Reading this manual carefully before installation, and keep it for future reference.
4. Alkaline (4 x AA) batteries MUST be used, do not use lithium batteries.
www.sylvan.co.nz
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sylvan SL40E
Summary of Contents for Sylvan SL40E
- Page 1 User Manual SL40E Special Attention: 1.Mechanical keys please keep outdoor, just in case keys are required to unlock door in low power conditions. 2.Please replace for the battery when low wattage alarm. (check app status) .Reading this manual carefully before installation, and keep it for future reference.
- Page 2 Thank you for choosing our Sylvan Smart Lock, as with all Smart Locks there are a few key tips that will ensure your Smart Lock meets your expectations. • Good quality Alkaline batteries should always be used • The supplied rubber boot must be installed, however smart locks are not suitable for use on a tongue and groove door, water can penetrate the lock via a grove.
-
Page 3: Packing List
(For Aluminum Door) Mortise Screws:M4*25mm Back Panel (For Wooden Door) 60mm Square shaft Mortise 80mm Square shaft Card Mechanical Key M5*25mm Screw Waterproof Rubber M5*40mm Screw Plate Screw Stubs:M5*35mm User Manual Strike&Strike Box U-Clip Sliding M3*10mm Panel screws Screws:M5*10mm www.sylvan.co.nz... -
Page 4: Specifications
1.3.Specifications Suitable for Doors Aluminum door SL40E Models Applicable Wooden door Working Aluminum alloy Materials 6V/4x AA Batteries Voltage Door Thickness Lock Weight 3 KG 35-65mm to Fit Bluetooth Fingerprint(option) Fingerprint 200 Unlocking Password Data Capacity Password 150 Card Card 200... -
Page 5: Installation
2.Installation 2.1Turn the handle Notice: Adjust the handle according to the direction you open the door. For Front Panel: Toward Direction Toward For Back Panel: Loosen screws Toward Direction Toward www.sylvan.co.nz... - Page 6 Installation Diagram(For Latch ) 2.2. Step 1 Install Mortise Step 2 Install Sliding Screw Casing IMPORTANT Step 3 Install back gasket Step 4 Install Back Panel and link wire Step 5 Install battery and back cover Step 6 installation complete www.sylvan.co.nz...
-
Page 7: Operation
Generally, a lock that has not been added, as long as the lock keyboard is touched, it will enter the add mode. The default password is 123456 if not added by the phone www.sylvan.co.nz... -
Page 8: Setting Passcode
Select e-key format (Timed, permanent, One-time, Recurring) Enter recipient's account of TTlock,set the name and effective time of the eKey, Can choose to allow remote unlocking or disallowing, authorized administrator or not authorized, as shown in figure Send The recipient's account has Bluetooth unlock permission www.sylvan.co.nz... - Page 9 .All generated passwords can be viewed and managed in the Click " " password management module. This includes a password change, password deletion, password reset, and password unlock record. 3.4.8.Unlock records Click " "you can query your unlock record as shown in figure www.sylvan.co.nz...
-
Page 10: Add Gateway
3.5.1. Add Gateway 3.5.2. Manual After a short period of time, you can see which locks are in their coverage in the app. Once the lock is bound to the gateway, the lock can be managed through the gateway www.sylvan.co.nz... - Page 11 8 How many times will the password be Enter the wrong password more than 5 times locked? How long is it locked? in a row, the keyboard is locked for 5 minutes Other ways to can open the door www.sylvan.co.nz...
-
Page 12: Product Warranty
Please keep this card so that you can use it when you need warranty service. We provide you with a two-year warranty from the date of purchase. 127 Diana Drive Glenfield Auckland 0627 Ph: +64 9 444 5359 Email: sales@gdrutter.co.nz Web: www.sylvan.co.nz www.sylvan.co.nz...
