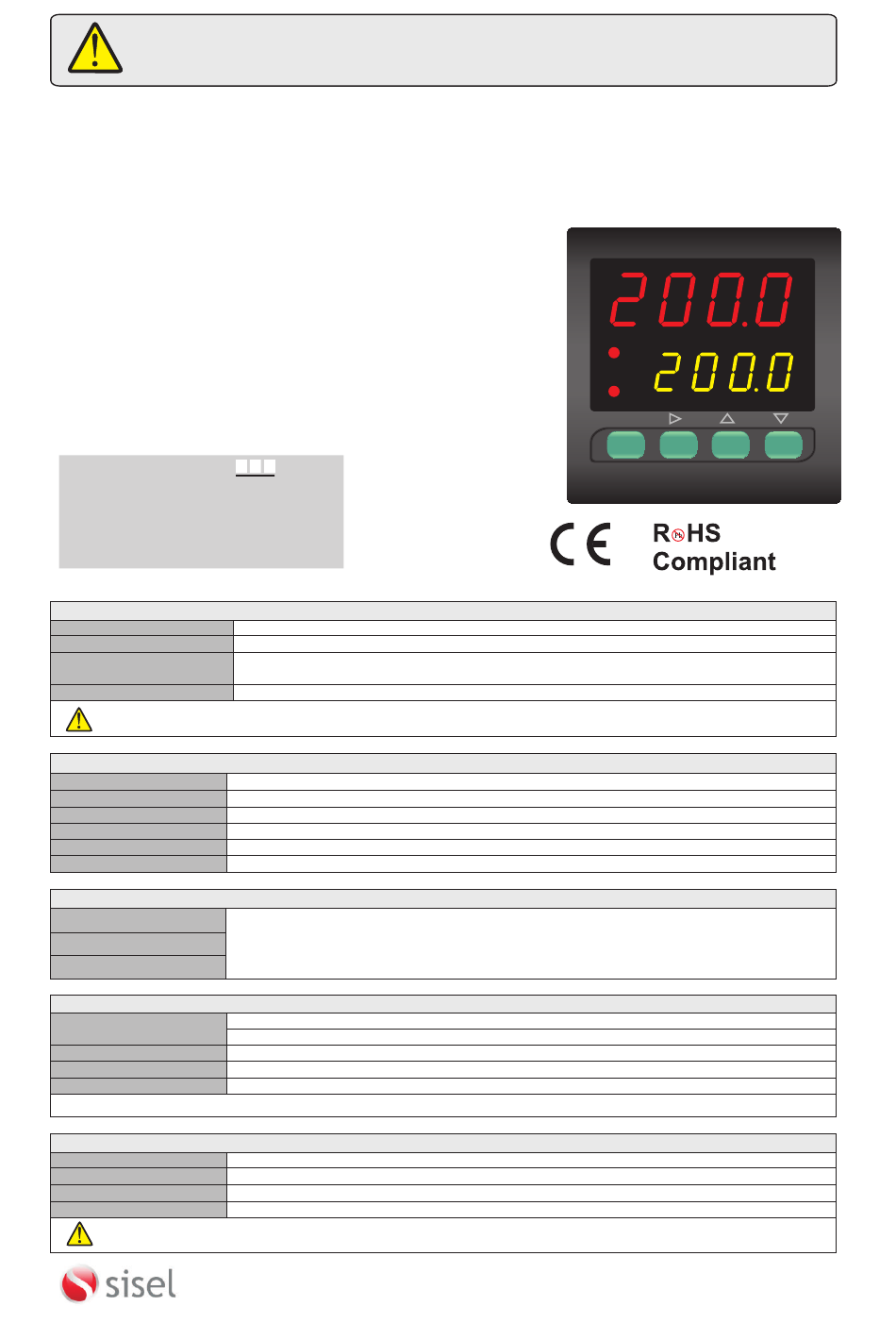

sisel ENDA ETM742 Quick Start Manual

Read this document carefully before using this device. The guarantee will be expired by
damaging of the device if you don't attend to the directions in the user manual. Also we don't
accept any compensations for personal injury, material damage or capital disadvantages.

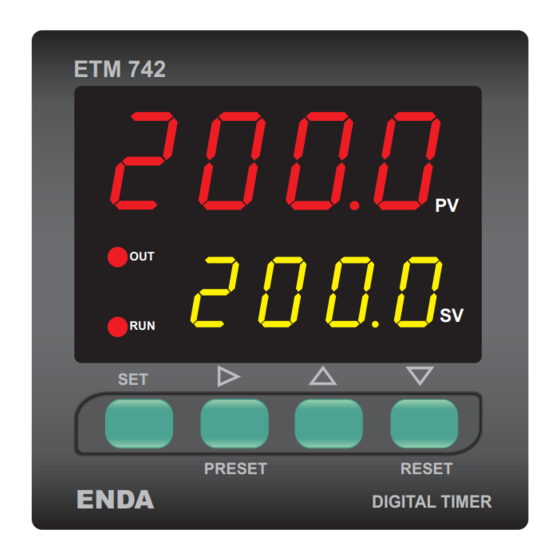

ENDA ETM742 DIGITAL TIMER
Thank you for choosing ENDA ETM742 digital timer.
* 72x72mm sized.
* 2x4 digits display.
* Easy to use by front panel keypad.
* Selectable 9 different time bases between 0-99.99s and 0-9999h.
* Selectable PNP or NPN sensor type.
* Selectable up/down counting direction for time.
* Adjustable Minimum On and Off times for pulses.
* Operation with or without memory for each output type.
* 9 different output types.
* Bottom display can be adjusted to show time unit or set value.
* Selectable functional reset.
* Parameter access protection on 3 levels.
* Easy connection by removable screw terminal.
* CE marked according to European Norms.
Order Code : ETM742 -
Supply Voltage
230......230V AC
LV........10-30V DC /
8-24V AC
TECHNICAL SPECIFICATIONS
ENVIRONMENTAL CONDITIONS
Ambient/storage temperature
Max. relative humidity
Rated pollution degree
Height
Do not use the device in locations subject to corrosive and flammable gases.
ELECTRICAL CHARACTERISTICS
Supply
Power consumption
Wiring
Date retention
EMC
Safety requirements
INPUTS
START input
GATE input
RESET input
OUTPUTS
Control output (OUT)
Auxiliary power supply
Life expectancy for relay
Accuracy
Note : Relay and S.S.OUT outputs are in synchronization . When OUT relay is energized S.S. OUT transistor goes into saturation.
HOUSING
Housing type
Dimensions
Weight
Enclosure material
While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.
SİSEL MÜHENDİSLİK ELEKTRONİK SAN. VE TİC. A.Ş.
Şerifali Mah.
ÜMRANİYE/İSTANBUL-TURKEY
Tel : +90 216 499 46 64 Pbx.
url : www.enda.com.tr
1
0 ... +50 °C/-25 ... +70°C (with no icing)
80 % up to 31 °C decreasing linearly 50
According to EN 60529
Max. 2000m
230V AC +%10-%20, 50/60Hz ; 10-30V DC / 8-24V AC SMPS
Max. 7VA
2.5mm² screw-terminal connections
EEPROM (Min. 10 years)
EN 61326-1: 1997, A1: 1998, A2: 2001 (Performance criterion B for the EMC standard)
EN 61010-1: 2001 (pollution degree 2, overvoltage category II)
Input types can be adjusted as PNP or NPN in programming mode.
Minimum On and Off times for input pulses can be adjusted between 5 and 100ms.
For PNP input types, active level is 5 to 30V pulse,
For NPN input types, active level is 0 to 2V pulse.
Relay : 250V AC, 2A (for resistive load), NO+NC
Open collector output (S.S. OUT): Max. 30V DC, 100mA
12V DC, max. 50mA (without regulation)
Mechanical 30.000.000 operation; Electrical 300.000 operation
± 0.1% ± 20ms
Suitable for flush-panel mounting according to DIN 43 700.
W72xH72xD97mm
Approx. 210g (after packing)
Self extinguishing plastics
Barbaros Cad. No:18 Y.Dudullu 34775
Fax : +90 216 365 74 01
ETM 742
ENDA
% at 40 °C .
Front panel : IP65
Rear panel : IP20
1/5
OUT
RUN
SET
PRESET RESET
DIGITAL TIMER
ENDA
ETM742-EN-08-220103
PV
SV
TM
