Read this document carefully before using this device. The guarantee will be expired by device
demages if you don't attend to the directions in the user manual. Also we don't accept any
compensations for personal injury, material damage or capital disadvantages.

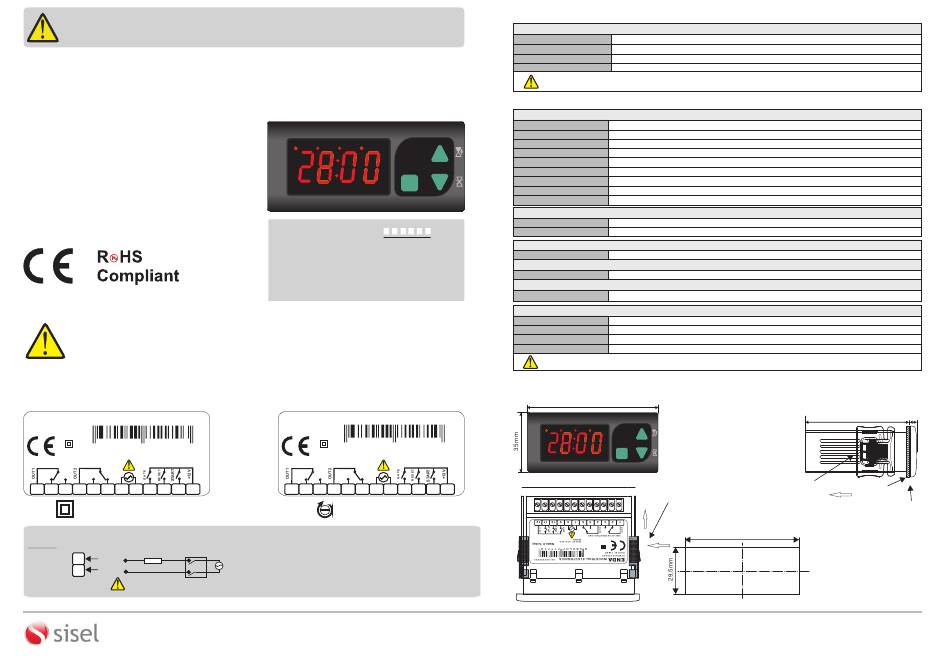

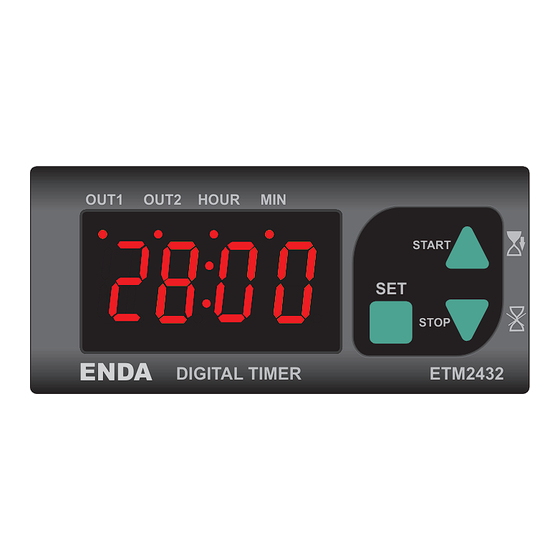

ENDA ETM2432 DIGITAL TIMER
Thank you for choosing ENDA ETM2432 digital timer.
*
77 x 35mm sized.
*
Dual contact output for timing control.
*
External start, reset, and gate inputs.
*
Hours - minutes and minutes - seconds indications can be selected.
*
Scale 0:01 .... 99:59 minutes
0:01 .... 99:59 hours
*
Time increasing and decrement steps can be adjusted.
* Counting in downward direction.
*
Start and stop process can be controlled by the front panel.
*
8 different warning tones.
*
Upper and lower limits can be adjusted to setpoint value.
*
CE marked according to European Norms.
CONNECTION DIAGRAM
ENDA ETM2432 is intended for installation within control panels. Make sure that the device is
used only for intended purpose. The shielding must be grounded on the instrument side. During an
installation, all of the cables that are connected to the device must be free of electrical power. The
device must be protected against inadmissible humidity, vibrations, severe soiling. Make sure
that the operation temperature is not exceeded. All input and output lines that are not connected to
the supply network must be laid out as shielded and twisted cables. These cables should not be close to the
power cables or components. The installation and electrical connections must be carried out by a qualified staff
and must be according to the relevant locally applicable regulations.
ENDA
SN: XXXXXXXXX
INDUSTRIAL ELECTRONICS
ETM2432-230VAC
DIGITAL TIMER
8 6 8 0 4 0 7 7 1 1 7 0 3
Made In Turkey
230V AC +10% -20%
50/60Hz
250V AC 8A RESISTIVE LOAD
1 2 3 4 5 6 7 8 9 10 11 12
Equipment is protected throughout by
DOUBLE INSULATION
NOTE :
Fuse
SUPPLY: F 100 mA
Switch
250V AC
Phase
7
184-253V AC
50/60Hz 5VA
8 Neutral
Fuse should
Cable size: 1,5mm²
be connected.
SİSEL MÜHENDİSLİK ELEKTRONİK SAN. VE TİC. A.Ş.
Şerifali Mah. Barbaros Cad. No:18 Y.Dudullu 34775
ÜMRANİYE/İSTANBUL-TURKEY
Tel : +90 216 499 46 64 Pbx. Fax : +90 216 365 74 01
url : www.enda.com.tr
OUT1 H M
OUT1 OUT2 HOUR MIN
SET SET
SET SET
ENDA
ENDA
DIGITAL TIMER
Order Code : ETM2432 -
1
1 - Supply Voltage
230VAC...230V AC
24............24V AC/DC
12............12V AC/DC
SM............9-30V DC / 7-24V AC
ENDA
INDUSTRIAL ELECTRONICS
ETM2432-24
DIGITAL TIMER
8 6 8 0 4 0 7 7 1 1 7 1 0
24V AC/DC +10% -20%
50/60Hz
250V AC 8A RESISTIVE LOAD
1 2 3 4 5 6 7 8 9
Holding screw
0.4-0.5Nm.
Note 1) Mains supply cords shall meet the requirements
of IEC 60227 or IEC 60245.
2) In accordance with the safety regulations, the
230V AC
power supply switch shall bring the identification of
Supply
the relevant instrument and it should be easily
accessible by the operator.
ENVIRONMENTAL CONDITIONS
Ambient/Storage temperature
Relative Humidity
Protection Class
Height
Do not use the device in locations subject to corrosive and flammable gasses.
ELECTRICAL CHARACTERISTICS
Supply
Power Consumption
Wiring
START Scale
Sensitivity
Time Accuracy
Indıcator
STOP
EMC
Safety Requirements
ETM232
ETM2432
OUTPUT
Out
Life Expectancy for Relay
START INPUT
Input Type
RESET INPUT
Input Type
GATE INPUT
Input Type
HOUSING
Housing Type
Dimensions
Weight
Enclosure Materials
While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.
Dimensions
77mm
SN: XXXXXXXXX
OUT1 H M
OUT1 OUT2 HOUR MIN
Made In Turkey
ENDA
ENDA
DIGITAL TIMER
10 11 12
1/4
TECHNICAL SPECIFICATIONS
0 ... +50 / °C -25... +70 °C
Max. humidity 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C.
According to EN60529; Front panel: IP65 Rear panel : IP20
Max. 2000m
230V AC ±%10, 50/60Hz or 12/24V AC/DC %10, 50/60Hz or 9-30V DC/7-24V AC, 50/60Hz ±
Max. 7VA
2.5mm²'lik screw-terminal
Selectable 99:59 min. or hour.
1 second.
±%1
4 digits, 12.5mm, 7 segment red LED
EN 61326-1: 2013 (Performance criterion B is satisfied for EN 61000-4-3)
EN 61010-1: 2010 (Pollution degree 2, overvoltage category II)
2 Relays: 250V AC, 8A (for resistive load), NO and NC control output.
30.000.000 Switching for no-load operation; 300.000 switching for 8A resistive load at 250VAC.
Mechanical contact (Minimum = 50ms)
Mechanical contact (Minimum = 50ms)
Mechanical contact (Minimum = 50ms)
Suitable for flush-panel mounting according to DIN 43 700.
W77xH3 xD7 mm 5 1
Approx. 198g (A fter packing )
Self extinguishing plastics
For removing mounting clamps:
- Push the flush-mounting clamp
START in direction 1 as shown in the
figure below.Then, pull out the
SET SET
SET SET
clamp in direction 2 .
STOP
ETM232
ETM2432
Flush mounting
Flush mounting
clamp
2
Panel Cut-out
1 71,5mm
Depth
60mm 5mm
2
Panel
clamp
Rubber
Packing
Note: 1) Panel thickness should
be maximum 7mm.
2) If there is not 60mm free
space at the back side of
the device,it would be
difficult to remove it from
the panel.
ENDA TM
ETM2432-E-01-151012
