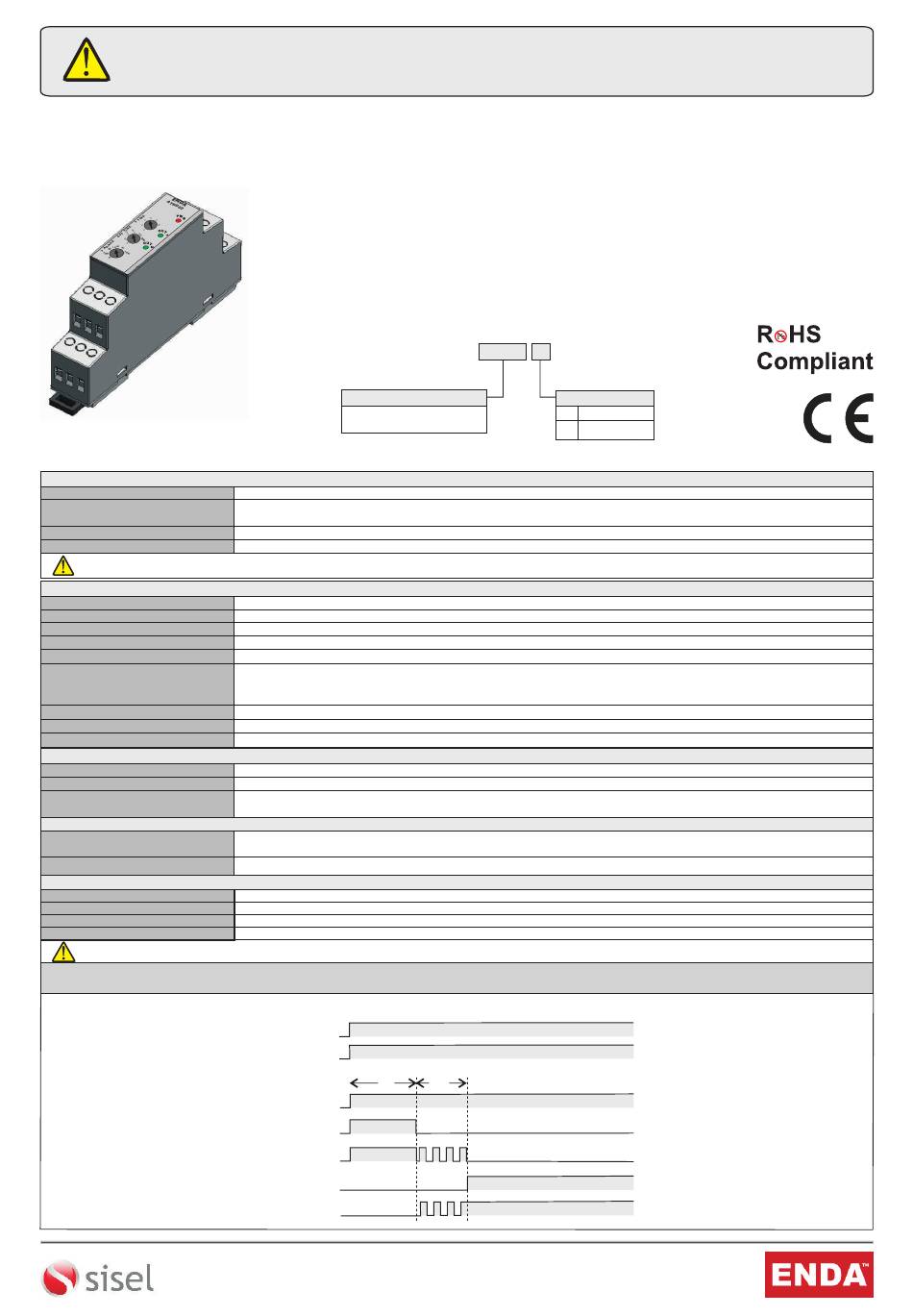

sisel Enda ATSD02 Instruction Manual

Read this document carefully before using this device. The guarantee will be expired by device demages if you don't
attend to the directions in user manual. Also we don't accept any compensations for personal injury, material
damage or capital disadvantages.

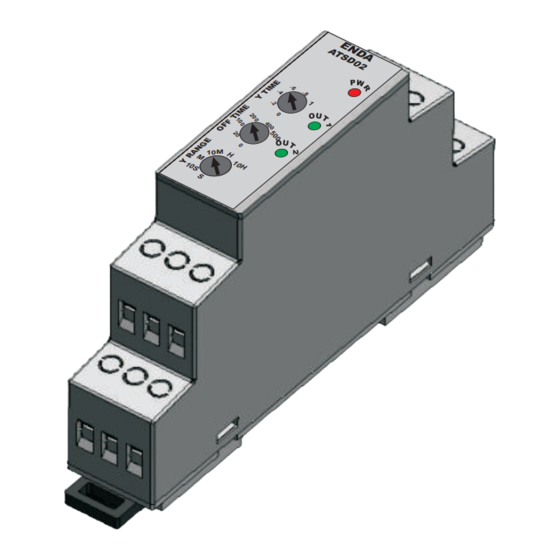

ENDA ATSD02 Rail Mounted Star-Delta Analog Timer.
Thank you for choosing ENDA ATSD02 Rail mounted star-delta analog timer.
Technical Specifications
ENVIRONMENTAL CONDITIONS
Ambient/storage temperature
Max. relative humidity
Rated pollution degree
Height
Do not use the device in locations subject to corrosive and flammable gasses.
ELECTRICAL CHARACTERISTICS
Supply voltage
Power consumption
Connection
Scale
Reset time
Accuracy
EMC
Safety requirements
İnsulation test voltage
OUTPUTS
Control outputs (OUT1/OUT2)
Life expectancy for relays
Control output state
CONTROL
Timing function
Timing unit
HOUSING
Mounting
Dimensions
Weight
Enclosure material
While cleaning the device,solvents (thinner,benzine,acid etc.) or corrosive materials must not be used.
OUTPUT CONTROL
ATSD02 - xV
SİSEL MÜHENDİSLİK ELEKTRONİK SAN. VE TİC. A.Ş.
Şerifali Mah. Barbaros Cad. No:18
ÜMRANİYE/İSTANBUL-TURKEY
Tel : +90 216 499 46 64 Pbx.
url : www.enda.com.tr
*
Separate contacts for star and delta connections (OUT1 - OUT2).
*
Star connection to remain active time can be adjusted.
*
Star-delta switching time can be adjusted.
*
6 Different timing unit for star connection (S, 10S, M, 10M, H, 10H).
*
Rail Mounted.
*
Screw-terminal connection.
*
CE marked according to European Norms.
ORDER CODE
Product Basic Code
Rail Mounted Star-delta
Analog Timer
0 ... +50°C/-25 ... +70°C (With no condensation and icing).
Max. humidity 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C.
IP20, According to EN 60529
Max. 2000m
90-250V AC 50/60Hz ; 24V AC/DC 50/60Hz
Max. 10VA
Screw-terminal connection.
For Star connection 0-1. For OFF delay time 0, 20, 100, 200, 400, 500 milliseconds.
Max. 0.04 seconds.
Depending on the effect of voltage: max %0.2
Depending on the set value settings:max %4.5
Depending on the effect of temperature :max %1
EN 61326-1: 2012
EN 61010-1: 2010 (pollution degree 2, overvoltage category II)
3kV AC min. 1 minute, 4,2kV DC min. 1 minute.
Relay: 250V AC, 10A (for resistive load), NO+NC
Without load 10.000.000 operation; 250V AC, 10A resistive load 50.000 operation.
OUT1 LED lights up when OUT1 relay is turned on, OUT2 LED lights up when OUT2 relay is turned on.
OUT1 and OUT2 LEDs blinks during OFF time.
Y TIME : ON time duration for OUT1 Relay. OFF TIME: OFF time duration for OUT1 and OUT2 relays.
Can be adjusted on device.
For Y TIME Second, 10 seconds, minute, 10 minutes, hours, 10 hours can be selected on device.
Rail mounted (EN 60715, Th35)
W18xH90xD66mm
Approx. 90g (after packaging)
Self extinguishing plastics.
Power
Power Led
t
Y
Power
OUT1 NO
OUT1 Led
OUT2 NO
OUT2 Led
Y.Dudullu 34775
Fax : +90 216 365 74 01
ATSD02 - xV
Supply Voltage
90-250V AC
UV
LV 24V AC/DC
t
off
1 / 2
t
Y=Y RANGE x Y TIME
t
off=OFF TIME
ATSD02-EN-02-220103
