sisel ENDA ATF02 Quick Start Manual

Read this document carefully before using this device. The guarantee will be expired by device demages if you don't
attend to the directions in user manual. Also we don't accept any compensations for personal injury, material
damage or capital disadvantages.

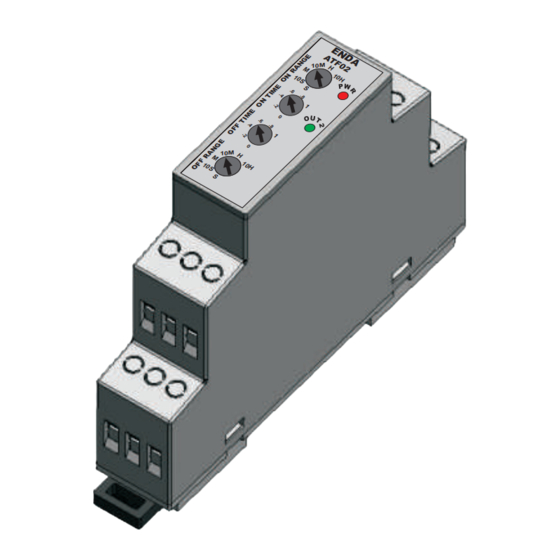

ENDA ATF02 Rail Mounted Flasher Analog Timer
Thank you for choosing ENDA ATF02 Rail mounted flasher analog timer.
Technical Specifications
ENVIRONMENTAL CONDITIONS
Ambient/storage temperature
Max. relative humidity
Rated pollution degree
Height
Do not use the device in locations subject to corrosive and flammable gasses.
ELECTRICAL CHARACTERISTICS
Supply voltage
Power consumption
Connection
Scale
Reset time
Accuracy
EMC
Safety requirements
İnsulation test voltage
OUTPUTS
Control outputs (OUT1/OUT2)
Life expectancy for relays
Control output state
CONTROL
Timing function
Timing unit
HOUSING
Mounting
Dimensions
Weight
Enclosure material
While cleaning the device,solvents (thinner,benzine,acid etc.) or corrosive materials must not be used.
OUTPUT CONTROL
ATF02 - xR - xV
SİSEL MÜHENDİSLİK ELEKTRONİK SAN. VE TİC. A.Ş.
Şerifali Mah. Barbaros Cad. No:18
ÜMRANİYE/İSTANBUL-TURKEY
Tel : +90 216 499 46 64 Pbx.
url : www.enda.com.tr
*
Can be triggered with supply voltage.
*
Triggering output (OUT1 optional).
*
Contact output for timing function (OUT2).
*
*
6 Different timing units (S, 10S, M, 10M, H, 10H)
*
Rail mounted.
*
Screw-terminal connection.
*
CE marked according to European Norms.
ORDER CODE
Product Basic Code
Rail Mounted
Analog Timer
0 ... +50°C/-25 ... +70°C (With no condensation and icing).
Max. humidity 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C.
IP20, According to EN 60529
Max. 2000m
90-250V AC +%10 -%20, 50/60Hz or 24V AC %10, 50/60Hz or
Max. 10VA
Screw-terminal connection.
Can be adjusted between 0 and 1.
Max. 0.04 seconds.
Depending on the effect of voltage: max %0.2
Depending on the set value settings:max %4.5
Depending on the effect of temperature :max %1
EN 61326-1: 2012
EN 61010-1: 2010 (pollution degree 2, overvoltage category II)
3kV AC min. 1 minute, 4,2kV DC min. 1 minute.
Relay: 250V AC, 10A (for resistive load), NO+NC
Without load 10.000.000 operation; 250V AC, 10A resistive load 50.000 operation.
OUT2 LED lights up for length of ON and blinks for length
t
ON : ON time duration for relay.
ON and OFF time durations can be selected as, second, 10 seconds, minute, 10 minutes, hours and 10 hours on device.
Rail mounted (EN 60715, Th35)
W18xH90xD66mm
Approx. 90g (after packaging)
Self extinguishing plastics.
Power
Power Led
OUT1 NO
t t
on
Power
OUT2 NO
OUT2 Led
Y.Dudullu 34775
Fax : +90 216 365 74 01
t
t
ON and OFF time durations can be adjusted separately.
ATF02 - xR - xV
±
t
t
OFF : OFF time duration for relay. Can be adjusted on device.
t t
off on off
1/2
Supply Voltage
UV 90-250V AC
24V AC/DC
LV
Output Relay(s)
1R 1 Relay
2 Relays
2R
24V DC %10 ±
t
OFF.
t
on=ON RANGE x ON TIME
t
off=OFF RANGE x OFF TIME
ATF02-E-01-201412
