IMPORTANT! READ CAREFULY AND KEEP THIS USER'S
MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE!
INSTRUCTION MANUAL FOR

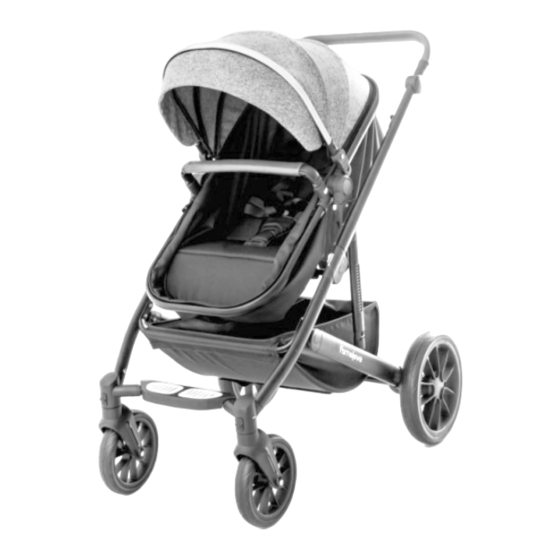

BABY STROLLER
"ENIGMA"
This stroller
has been manufactured in accordance with
the Product Safety Directive 2001/95/EU of the European Parliament and The
Council and with European standard EN 1888-1 "Child care articles. Wheeled
child conveyances. Part 1: Baby strollers and carry cot", EN 1888-2 "Child care
articles. Wheeled child conveyances. Part 1: Baby strollers from 15 up to 22 kg
and the regulations of national law, including Consumer Protection Law.
Advertisement
Related Manuals for Chipolino Enigma
Summary of Contents for Chipolino Enigma
- Page 1 IMPORTANT! READ CAREFULY AND KEEP THIS USER’S MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE! INSTRUCTION MANUAL FOR BABY STROLLER “ENIGMA” This stroller has been manufactured in accordance with the Product Safety Directive 2001/95/EU of the European Parliament and The Council and with European standard EN 1888-1 “Child care articles.
- Page 2 ATTENTION! YOUR CHILD WILL BE MOST SECURE IF YOU FOLLOW THE INSTRUCTIONS AND RECOMMENDATIONS GIVEN IN THIS USER’S MANUAL! WARNING! INSTRUCTIONS AND WARNINGS FOR SAFETY CAUTION! NEVER LEAVE YOUR CHILD UNATTENDED! CAUTION! ALWAYS USE SAFETY BELTS, AS SOON AS THE CHILD CAN REMAIN IN A SITTING POSITION UNAIDED AND CAN PUSH HIMSELF WITH HANDS OR KNEES! ...
-
Page 3: Main Parts
(whichever comes first); The seat transforms into a carry cot that can be used for children aged less than 6 months and weighting not more than 9 kg.; Car seat “ENIGMA”, Group 0+ (0-13 kg). It is safe and compatible with stroller’s frame; Note: Car seat is sold separately. All instructions and recommendations for safety usage and installation are given in separate user’s manual; Seat unit can be installed in 2 modes – mother facing mode and motion facing mode;... -
Page 4: Front Bumper
Canopy Front bumper 1– Front wheels Frame 2 – Rear wheels Transformable seat ATTENTION! Please, check if all described parts are available and in good working order! ASSEMBLY INSTRUCTION AND FUNCTIONS This stroller is supplied partially assembled. In order to complete the assembly, you don’t need any tools. - Page 5 ASSEMBLY 1 – OPEN THE FRAME 1-1 and 1-2 – Unfasten the safety belt. 1-3 Pull the handle upwards until the frame opens. 1-4 When stroller fixes in open position, you will hear a click sound. 2 – INSERT AND REMOVE OF REAR WHEELS 2-1 – Insert the axis of rear wheel into the hub at frame and press. 2-2 When wheel fixes you will hear a click sound. Make sure that wheel is securely fixed to frame, as trying to pull it out.
- Page 6 9 – PARKING DEVICES ATTENTION! Apply the parking devices always when stroller is not in motion to avoid risk of stroller sliding. 10 – HANDLE HEIGHT ADJUSTMENT Press simultaneously the buttons for height adjustment of handle and set the handle upwards or down- wards until you get the required position. 11 – BACKREST ADJUSTMENT Press the mechanism for backrest adjustment and move it up or down. Release the mechanism to fix the backrest in required position.
-
Page 7: Installation
19 – INSTALLATION OF CAR SEAT “ENIGMA” ON FRAME OF STROLLER ATTENTION! ALWAYS INSTALL THE CAR SEAT IN FACE TO FACE MODE. On the frame of this stroller, you can install car seat “ENIGMA” through the adaptors. Installation: 19-1 - Install the adaptors to the car seat. You must hear a click sound. - Page 8 Button for removal “click” Button for removal “click” Button for removal бутон “click” swiveling straight direction activated not activated...
- Page 9 Button to adjust the Backrest adjustment 11-1 height of handle mechanism Backrest adjustment 11-2 12-1 12-2 mechanism “click” 13-1 13-2 13-3 Button for removal Button at central buckle Adjustment button 15-1 Position 1 Position 2 Position 3 Belt adjuster Folding “click”...
- Page 10 16-2 16-3 16-4 Fixing belt “click” 17-1 17-2 18-1 18-2 Button for removal “click” “click” Adaptor Button for Button to adjust removal the position of the handle...
-
Page 11: Care And Maintenance
CARE AND MAINTENANCE The brakes and wheels wear out faster than other parts. Replace them when necessary. Regularly oil the moving parts.Use silicone oil or silicone spray for oiling. Dirt could make difficult the function of your stroller. Clean and oil all dirty metal and plastic parts regularly. Clean the fabrics, plastic parts and metal parts with damp cotton cloth or sponge and mild soap. ... - Page 12 1 Goliamokonarsko shosse, Plovdiv, BULGARIA www.chipolino.com...
