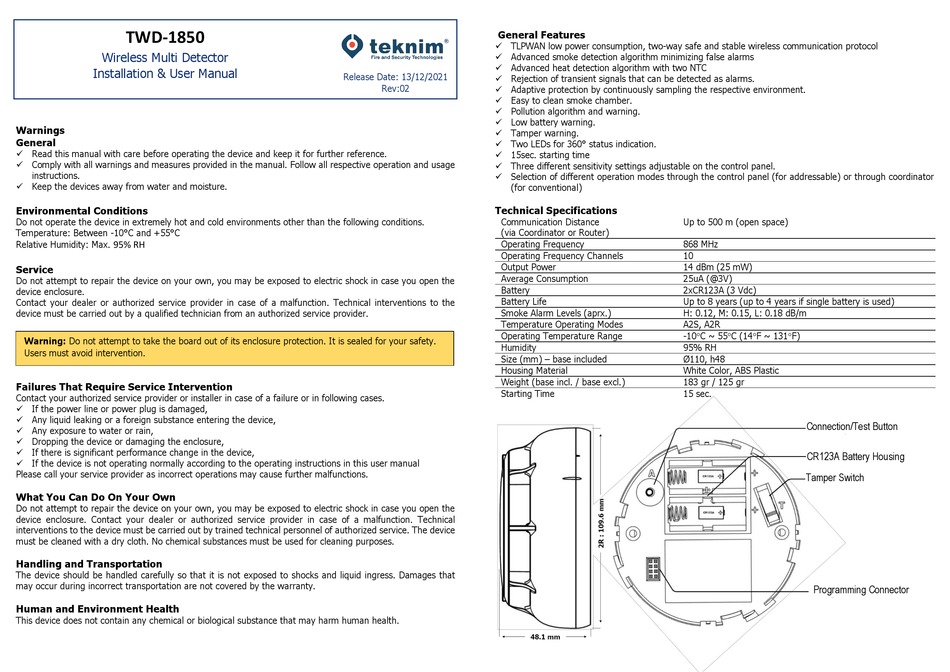

Teknim TWD-1850 Installation & User Manual

TWD-1850 TWD-1850
TLPWAN Wireless Multi Detector Wireless Multi Detector
Installation & User Manual
Installation & User Manual
Warnings
General
✓ Read this manual with care before operating the device and keep it for further reference.
✓ Comply with all warnings and measures provided in the manual. Follow all respective operation and usage
instructions.
✓ Keep the devices away from water and moisture.
Environmental Conditions
Do not operate the device in extremely hot and cold environments other than the following conditions.
Temperature: Between -10°C and +55°C
Relative Humidity: Max.
95% RH
Service
Do not attempt to repair the device on your own, you may be exposed to electric shock in case you open the
device enclosure.
Contact your dealer or authorized service provider in case of a malfunction. Technical interventions to the
device must be carried out by a qualified technician from an authorized service provider.
Warning: Do not attempt to take the board out of its enclosure protection. It is sealed for your safety.
Users must avoid intervention.
Failures That Require Service Intervention
Contact your authorized service provider or installer in case of a failure or in following cases.
✓ If the power line or power plug is damaged,
✓ Any liquid leaking or a foreign substance entering the device,
✓ Any exposure to water or rain,
✓ Dropping the device or damaging the enclosure,
✓ If there is significant performance change in the device,
✓ If the device is not operating normally according to the operating instructions in this user manual
Please call your service provider as incorrect operations may cause further malfunctions.
What You Can Do On Your Own
Do not attempt to repair the device on your own, you may be exposed to electric shock in case you open the
device enclosure. Contact your dealer or authorized service provider in case of a malfunction. Technical
interventions to the device must be carried out by trained technical personnel of authorized service. The device
must be cleaned with a dry cloth. No chemical substances must be used for cleaning purposes.
Handling and Transportation
The device should be handled carefully so that it is not exposed to shocks and liquid ingress. Damages that
may occur during incorrect transportation are not covered by the warranty.
Human and Environment Health
This device does not contain any chemical or biological substance that may harm human health.
General Features
✓ TLPWAN low power consumption, two-way safe and stable wireless communication protocol
✓ Advanced smoke detection algorithm minimizing false alarms
✓ Advanced heat detection algorithm with two NTC
Release Date: 13/12/2021
✓ Rejection of transient signals that can be detected as alarms.
Rev:02 ✓ Adaptive protection by continuously sampling the respective environment.
✓ Easy to clean smoke chamber.
✓ Pollution algorithm and warning.
✓ Low battery warning.
✓ Tamper warning.
✓ Two LEDs for 360° status indication.
✓ 15sec. starting time
✓ Three different sensitivity settings adjustable on the control panel.
✓ Selection of different operation modes through the control panel (for addressable) or through coordinator
(for conventional)
Technical Specifications
Communication Distance
(via Coordinator or Router)
Operating Frequency
Operating Frequency Channels
Output Power
Average Consumption
Battery
Battery Life
Smoke Alarm Levels (aprx.)
Temperature Operating Modes
Operating Temperature Range
Humidity
Size (mm) – base included
Housing Material
Weight (base incl. / base excl.)
Starting Time
Up to 500 m (open space)
868 MHz
10
14 dBm (25 mW)
25uA (@3V)
2xCR123A (3 Vdc)
Up to 8 years (up to 4 years if single battery is used)
H: 0.12, M: 0.15, L: 0.18 dB/m
A2S, A2R
-10C ~ 55C (14F ~ 131F)
95% RH
Ø110, h48
White Color, ABS Plastic
183 gr / 125 gr
15 sec.
Connection/Test Button
CR123A Battery Housing
Tamper Switch
Programming Connector
