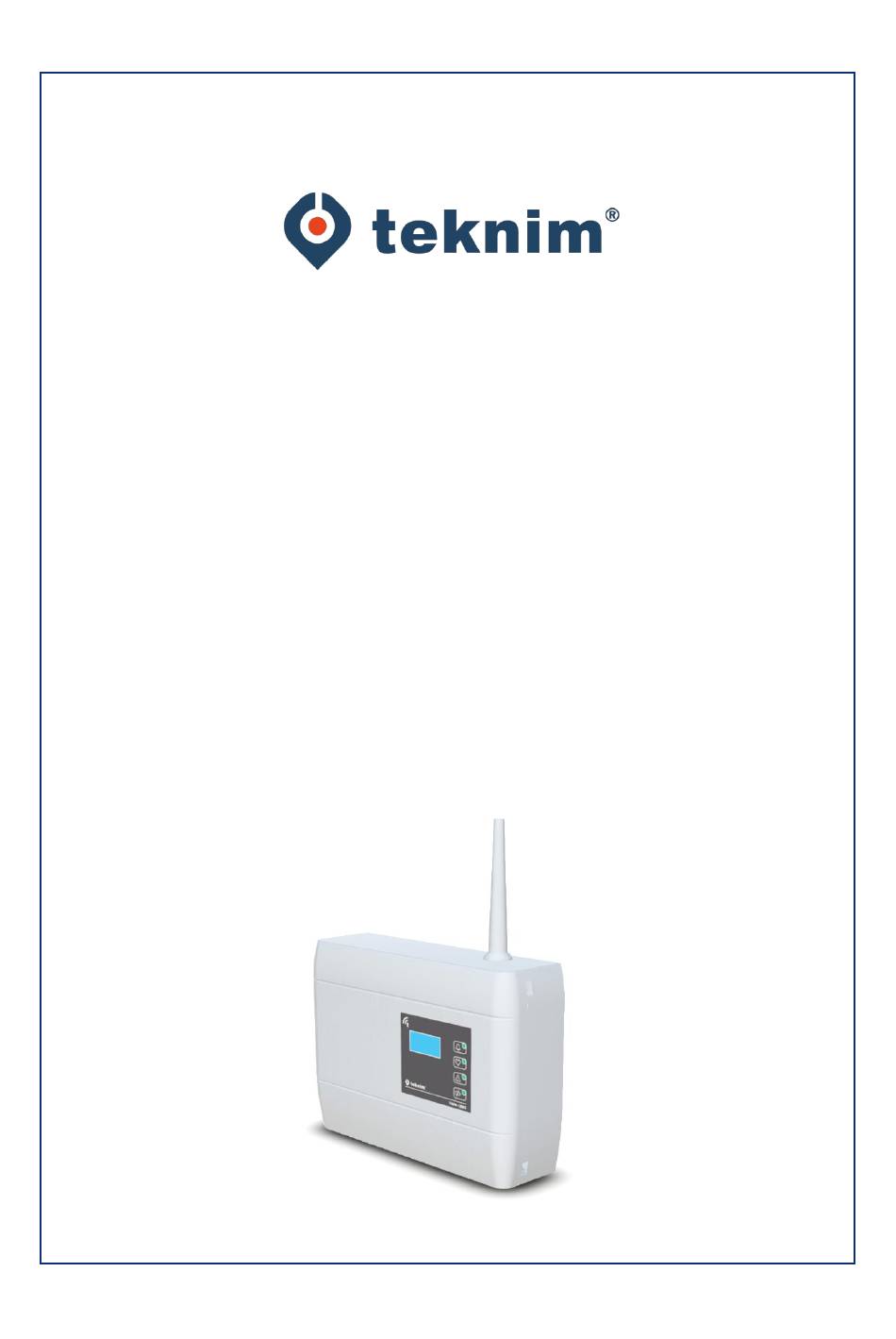

- Page 1 TWM-1885 Analogue Addressed Wireless Coordinator Installation & User Manual Release Date: 15/09/2021 Rev:01...
-
Page 2: Table Of Contents
TWM-1885 ANALOGUE ADDRESSED WIRELESS COORDINATOR – R01 Contents General Definitions .......................... 2 Technical Specifications ........................2 Installation ............................3 Mounting ..........................3 3.1.1 Cable Holes ........................3 3.1.2 Wall Mounting ......................... 4 Antenna Installation ........................ 4 Network Cable Connection...................... 5 Relay Cable Connection ...................... -
Page 3: General Definitions
FLASHLINK-TLPWAN protocol converter. TLPWAN (Teknim Low Power Wide Area Network) is a wireless communication protocol developed by Teknim which allows low power consumption devices on a wider area in a stable and safe manner by using two-way communication. FLASHLINK, is an uninterrupted and safe communication protocol developed by Teknim which allows the data communication between the network card and terminals through power line. -
Page 4: Installation
TWM-1885 ANALOGUE ADDRESSED WIRELESS COORDINATOR – R01 Installation Under this topic, the installation of TWM-1885 Addressed Wireless Coordinator module will be explained step by step in details. Please read all steps carefully. Mounting The following articles must be followed carefully in order to provide a good communication with the devices connected to the coordinator: •... -
Page 5: Wall Mounting
Figure 1 – Mounting Hole Sizes Antenna Installation TWM-1885 Addressed Wireless Coordinator module is placed in the box with the antenna wire and antenna housing disassembled. Ensure a good installation of the antenna in order to provide a good communication between devices. Otherwise, there may be distance problems and communication performance losses. -
Page 6: Network Cable Connection
TWM-1885 ANALOGUE ADDRESSED WIRELESS COORDINATOR – R01 Figure 2 – Antenna Wire Installation Once the wire antenna is fixed into its place, push the antenna housing into the antenna input tightly to fix it into its place. Figure 3 – Antenna Housing Installation... -
Page 7: Relay Cable Connection
TWM-1885 ANALOGUE ADDRESSED WIRELESS COORDINATOR – R01 Figure 4 – Network Connection Diagram Relay Cable Connection Addressed Wireless Coordinator module has the activation feature just like the addressed in-out modules. The conditions during which the relay on the Addressed Wireless Coordinator module will be active/passive can be determined by selecting the output activation feature on the analogue addressed fire alarm panel. -
Page 8: Module Interface
TWM-1885 ANALOGUE ADDRESSED WIRELESS COORDINATOR – R01 Module Interface Tamper Button OLED Screen Network Connection L3 - Alarm Led L4 - Heart Led Relay Connection L5 – Heart Led L6 – Low Battery Led L1 Led L2 Led Serial Port... -
Page 9: Events
TWM-1885 ANALOGUE ADDRESSED WIRELESS COORDINATOR – R01 If there are no events on the system when the menu is opened or the upmost menu is selected by using the BACK button, the following main screen will be displayed initially: FORWARD for the Menu 3.6.1 Events... -
Page 10: Settings
TWM-1885 ANALOGUE ADDRESSED WIRELESS COORDINATOR – R01 18850601200001 >1.Address: (1)0 2.Tamper Active 3.6.2 Settings This is the menu which device address, number of devices, channel, language and screen contrast settings can be adjusted. Settings To enter the menu: “Main screen” > FORWARD > DOWN > “Settings” > FORWARD Settings >1.Addressing... - Page 11 TWM-1885 ANALOGUE ADDRESSED WIRELESS COORDINATOR – R01 above will allow new devices to be added between 10 and 41 in the Addressed Fire Alarm panel in a situation that "31" wireless devices are added to the system. (The number of devices was selected as 3.6.2.2...
-
Page 12: Functions
TWM-1885 ANALOGUE ADDRESSED WIRELESS COORDINATOR – R01 Example: The channel value selected as “0” above, provides all channels to be scanned during the wireless system setup and allows the most available channel to be selected automatically. 3.6.2.4 Language The language of the Addressed Wireless Coordinator module can be changed with this setting. To enter the Language screen, navigate through the settings menu by using UP and DOWN buttons and select “Language”... - Page 13 TWM-1885 ANALOGUE ADDRESSED WIRELESS COORDINATOR – R01 Functions >1. Setup PAN 2. Delete PAN!! 3. Connection Permission 4. Reset PER 3.6.3.1 Setup PAN Setting up a new wireless system can be made from this menu. PAN is an abbreviation used in the network terminology and it stands for Personal Area Network.
- Page 14 TWM-1885 ANALOGUE ADDRESSED WIRELESS COORDINATOR – R01 Delete PAN Delete PAN Delete PAN Delete PAN Yes Delete PAN Yes Delete PAN Yes Successful Waiting.. All devices All devices All devices will be deleted! will be deleted! will be deleted! 3.6.3.3...
-
Page 15: Device List
TWM-1885 ANALOGUE ADDRESSED WIRELESS COORDINATOR – R01 Select “Yes” or “No” by using by using UP and DOWN buttons for resetting the PER values of all devices and the operation is carried out by pressing FORWARD button. The screenshots of this operation can be seen below. -
Page 16: Information
TWM-1885 ANALOGUE ADDRESSED WIRELESS COORDINATOR – R01 by the device. This value is directly related to the distance between the receiver and the transmitter as well as to other environmental factors. Refer to the “Signal Strength” table for RSSI value ranges. - Page 17 TWM-1885 ANALOGUE ADDRESSED WIRELESS COORDINATOR – R01 Information Information >1.16 Device 4.SW: 1.0.0 2.4 Router 5.PAN Set 3.HW: 1.0.0 6.Channel: 4 4.SW: 1.0.0 7.PAN ID: 10 5.PAN Set >8.TX Power: 14dBm Information Detail Screen: 1. Number of battery-operated devices in the wireless system.
-
Page 18: Ping Time
TWM-1885 ANALOGUE ADDRESSED WIRELESS COORDINATOR – R01 Ping Time Ping time, indicates the frequency that the devices will communicate with the connected coordinator or router. A shorter ping time means that the coordinator will communicate with the device faster and that reduces battery life. -
Page 19: Quick Menu Access
TWM-1885 ANALOGUE ADDRESSED WIRELESS COORDINATOR – R01 Quick Menu Access General structure of the module menu is shown in the following diagram. Address Device X Fire Type Fires Device Z Address Events Fault 1 Faults Device A Fault 2 Warnings Fault.. -
Page 20: Events And Indicators
TWM-1885 ANALOGUE ADDRESSED WIRELESS COORDINATOR – R01 Events and Indicators The events about all devices on the wireless system and the manner of displaying such events are shown in the following tables. Wireless Detector OLED Smoke Alarm Temperature Alarm Pollution Alarm... -
Page 21: Signal Strength Table (Rssi Table)
Software Update You may download the software files of all wireless devices under the “Firmware & Software” section of www.teknim.com.tr web site and carry out the update operation by using “Teknim Updater” software. TWM-1885 ANALOGUE ADDRESSED WIRELESS COORDINATOR – R01... -
Page 22: Manufacturer Company And Service
TWM-1885 ANALOGUE ADDRESSED WIRELESS COORDINATOR – R01 1922 Bilgi Elektronik San. ve Tic. A.Ş. Dudullu OSB 1. Cad. İsmet Tarman İş Merkezi No:1 Kat:2 No:32 Ümraniye / İstanbul 1922-CPR-1596 EN 54-18:2005, EN 54-18:2005/AC:2007 Fire Detection And Fire Alarm Systems (Input/Output Devices)
