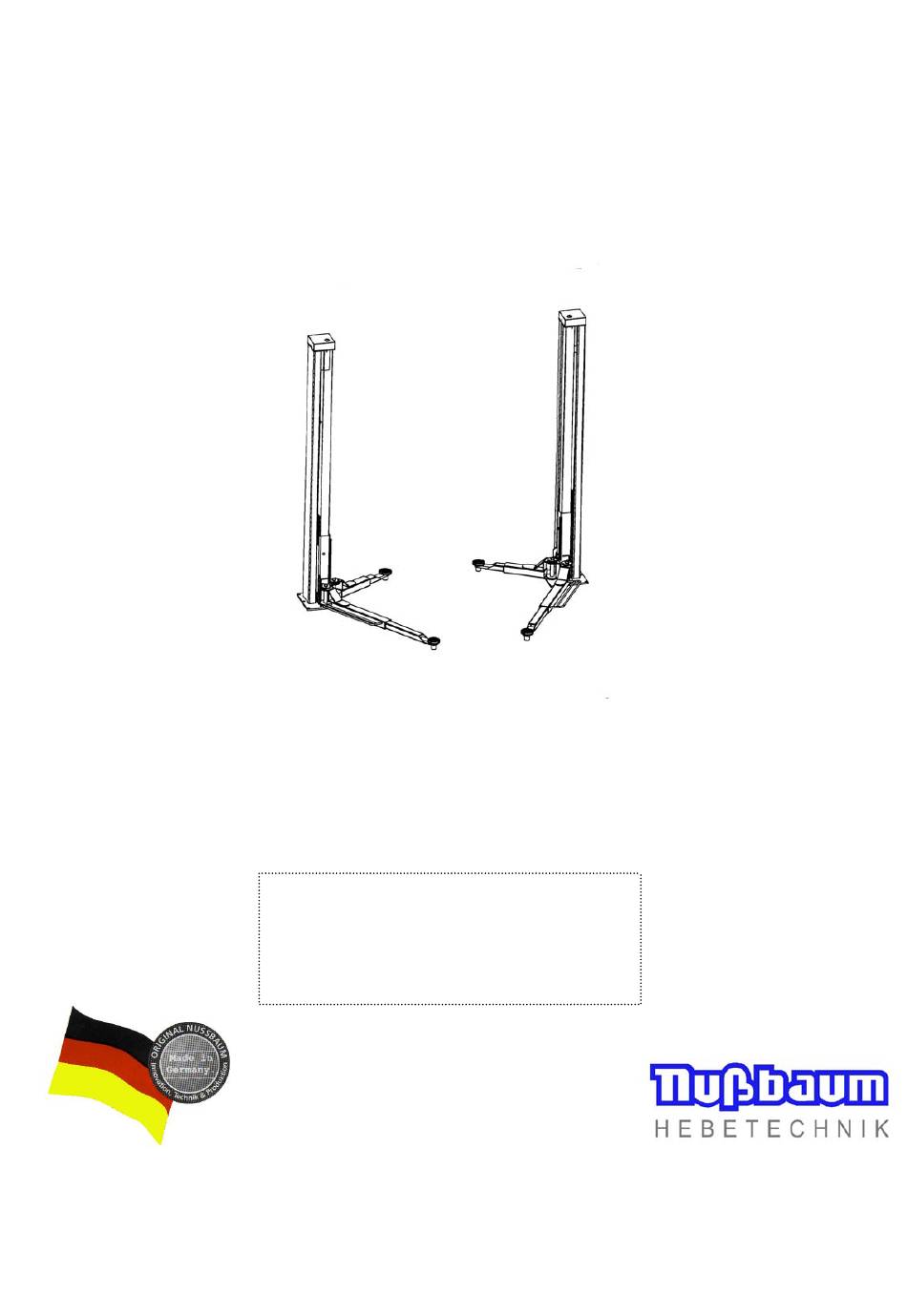

2.30 SL E
Automotive Lift date: 10-2000
Manual date: 06.10.2000
Version: electronic
Operating Instruction and Documentation
Serial-number:........................................................
Retailer address /Phone
Nußbaum Hebetechnik GmbH & Co.KG//Korker Strasse 24//D-77694 Kehl-Bodersweier//Tel: +49(0)7853/8990
Fax: +49(0)7853/8787//E-mail: info@nussbaum-lifts.de//http://www.nussbaum-lifts.de
Advertisement
Table of Contents
Related Manuals for Nußbaum Hebetechnik 2.30 SL E
Summary of Contents for Nußbaum Hebetechnik 2.30 SL E
- Page 1 2.30 SL E Automotive Lift date: 10-2000 Manual date: 06.10.2000 Version: electronic Operating Instruction and Documentation Serial-number:............Retailer address /Phone Nußbaum Hebetechnik GmbH & Co.KG//Korker Strasse 24//D-77694 Kehl-Bodersweier//Tel: +49(0)7853/8990 Fax: +49(0)7853/8787//E-mail: info@nussbaum-lifts.de//http://www.nussbaum-lifts.de...
-
Page 2: Table Of Contents
Operating Instruction and Documentation 2.30 SL E Table of contents Foreword..............................3 1. Introduction............................. 2. Master document of the lift........................2.1 Manufacturer ........................... 6 2.2 Application............................6 2.3 Changes of construction........................6 2.4 Changing of the installation place ....................6 2.5 CE-certificate/attestation of conformity.................. -
Page 3: Foreword
Operating Instruction and Documentation 2.30 SL E Foreword Nussbaum-Lifts are a result of long-standing experiences. The high quality and the superior concept guarantee them reliability, a long lift time and the economic business. To avoid unnecessary damages and dangers, read the operating instruction attentive and observe the contents. - Page 4 Operating Instruction and Documentation 2.30 SL E Organising requirements The instructions for use are constantly to be kept at the place of operation being at hand at any time. In addition to the instructions for use rules pertaining to other regulations i.e. accident prevention and environmental rules are to be observed and directed.
-
Page 5: Introduction
1. Introduction The document ”Operating Instructions and Documentation” contains important information about installation, operation and maintenance of the 2.30 SL E/T/MB. To furnish proof of installation of the automotive lift the form ”Record of Installation” must be signed and returned to the manufacturer. -
Page 6: Master Document Of The Lift
Germany 2.2 Application The automotive lift 2.30 SL E is a lifting stage for lifting and repairing vehicles with a laden weight of 3000 kg. It is not allowed to put the load on one or two carrying arms. It is not allowed to install the standard lift in the a explosive location or wash halls. -
Page 7: Ce-Certificate/Attestation Of Conformity
Operating Instruction and Documentation 2.30 SL E 2.5 CE-Certificate/attestation of conformity The automotive lift 2.30 SL E with the serial number............. Is in accordance with the tested lift (CE-certificate-number 04-205-2563/96) ....................... place, date company stamp, signature - 7 -... -
Page 8: Technical Information
Operating Instruction and Documentation 2.30 SL E 3. Technical Information 3.1 Technical ratings Lifting capacity 2.30 SL E 3000 kg Load of one carrying arm max. 1000 kg ( It is not allowed to put the load on one or two carrying arms.) Lifting time approx. -
Page 9: Safety Regulations
• The laden weight of the lifted vehicle mustn’t be more than 3000 kg for automotive lift 2.30 SL E , the lifting capacity of one carrying arm mustn’t be more than 1000 kg. It is not allowed to load only one of the carrying arms. -
Page 10: Operating Instructions
Operating Instruction and Documentation 2.30 SL E 5. Operating instructions The Safety Regulations must be observed during working with the automotive lift. Read the safety regulations in chapter 4 carefully before working with the lift! 5.1 Positioning the vehicle • Drive the vehicle in the lift. Observe the following pictures A and B. -
Page 11: Lifting The Vehicle
Operating Instruction and Documentation 2.30 SL E 5.3 Lifting the vehicle • Lift the vehicle free. Check the position of the pads under the vehicle. • Turn the changing switch in Position „ “ until the wheels are free. (see pic 2) •... -
Page 12: Led Display Visibly At The Operating Unit
Operating Instruction and Documentation 2.30 SL E 5.5 LED - (display visibly) at the operating unit A position measure system observe the lifting and lowering process. Additional the functions are made by a visibly display. Find the explanations following: Operating unit at the column... - Page 13 Operating Instruction and Documentation 2.30 SL E - 13 -...
-
Page 14: Maintenance
Operating Instruction and Documentation 2.30 SL E 6. Maintenance A regular service has to be performed every three months by the lifts operator according to the following schedule. If the lift is in continuous operation or dirty environment, the maintenance rate has to be increased. -
Page 15: Adjust Of The Polyflex-Belt
Operating Instruction and Documentation 2.30 SL E Do not use aggressive means for cleaning the workshop floor and the automotive lift. A permanent contact with every kind of liquid is forbidden. Do not use any high pressure device for cleaning the lift. -
Page 16: Check The Carrying Nut System
Operating Instruction and Documentation 2.30 SL E Put the device on a solid flat surface. Push it down until the pin is on the flat surface too. Put the clock on zero – turn the ring of the clock so long until the indicators are on zero. -
Page 17: Check Of The Stability Of The Automotive Lift
Operating Instruction and Documentation 2.30 SL E Pic.11: carrying nut 6.4 Check of the stability of the automotive lift • check the dowels with a torque key as described by the dowel manufacturer. (example: Liebig Company - 80 Nm ) 7. -
Page 18: Emergency Lowering In Case Of Power Failure
Operating Instruction and Documentation 2.30 SL E 7.1 Emergency lowering in case of power failure In case of power failure the lift can not lowered with the motors. In this case there is the possibility to lower the lift manually. Draw the main plug or switch off and lock the main switch and remove the cover of the v-belt pulleys. -
Page 19: Manually Equalisation Of The Lifting Carriage
Operating Instruction and Documentation 2.30 SL E 7.4 Manually equalisation of the carriage The lift is equipped with a position measuring system which guarantee the synchronisation of the lift. The electrical control recognizes if one lifting carriage is approx. 18 mm earlier at the definite height. The electrical control stopped the motor of this carriage until both carriage have the same height again. -
Page 20: Installation And Initiation
Operating Instruction and Documentation 2.30 SL E • If the Potentiometer 3 (top-limit) is turned clockwise, the upper end-point has been moved down. The lift stops earlier. • If the Potentiometer 4 (bottom-limit) is turned anticlockwise, the lower end-point has been moved up. - Page 21 Operating Instruction and Documentation 2.30 SL E pic.12: complete view: automotive lift with ascending pipe and traverse. A foundation must be constructed in accordance with the data sheet “foundation plan”. It must be paid attention of an even installation place of the lift because of a straight contact between lift and concrete floor.
-
Page 22: Electro Mounting And Current Connection
Operating Instruction and Documentation 2.30 SL E • Tighten the dowels with the dynamometric key (example: Liebig-dowel 80 Nm). Each dowel must be tightened with the demanded torque. Otherwise the normal function of the lift can not guaranteed. • If you need the cable not under the floor mount the traverse and the ascending pipe. -
Page 23: B) Without Using Ascending Pipe And Traverse
Operating Instruction and Documentation 2.30 SL E B) without using traverse and ascending pipe (under floor) • It is possible to lay the cable under the floor. • Do not need the traverse and the ascending pipe. • Make a foundation in accordance with the drawing. The opening for the cable is in the base plate of the lift. -
Page 24: Initiation
Operating Instruction and Documentation 2.30 SL E 8.2 Initiation Before the initiation a security check must be performed. therefore use form: First security check. If the lift is installed by a competent person, he will perform this security check. If the operator installs the lift by himself, he has to instruct a competent person to perform the security check. - Page 25 Operating Instruction and Documentation 2.30 SL E After the construction of the lift has been changed (changing the lifting height or capacity for example) and after serious maintenance works (welding on carrying parts) an extraordinary security check must be performed by an expert.
-
Page 26: Datasheet
Operating Instruction and Documentation 2.30 SL E Datasheet - 26 -... - Page 27 Operating Instruction and Documentation 2.30 SL E - 27 -...
-
Page 28: Foundation Plan (Version With Traverse And Ascending Pipe)
Operating Instruction and Documentation 2.30 SL E Foundation plan (Version with traverse and ascending pipe) - 28 -... -
Page 29: Foundation Plan (Version Without Traverse And Ascending)
Operating Instruction and Documentation 2.30 SL E Foundation plan (Version without traverse and ascending pipe) - 29 -... -
Page 30: Block Foundation Plan (With Ascending Pipe And Traverse)
Operating Instruction and Documentation 2.30 SL E Block foundation plan 3400 - 30 -... -
Page 31: Selection Of Dowels (With Floor Covering)
Operating Instruction and Documentation 2.30 SL E Pic. 21: choice of the dowel length with floor pavement or tile surface Table to picture 21. Dowel type Liebig B20; UPAT UMV 100 (or UMV80 for version with base frame bow) or equal dowels of other manufacturer (with licence) -
Page 32: Selection Of Dowels (Without Floor Covering)
Operating Instruction and Documentation 2.30 SL E Pic. 22: choice of the dowel length without floor pavement or tile surface Table to picture 22. Dowel type Liebig B20; UPAT UMV 100 (or UMV80 for version with base frame bow) or equal dowels of other manufacturer (with licence) -
Page 33: Electrical Diagram Drawing Part 1
Operating Instruction and Documentation 2.30 SL E Electrical diagram drawing - 33 -... -
Page 34: Electrical Diagram Drawing Part 2
Operating Instruction and Documentation 2.30 SL E Electrical parts list F01: Thermo switch in the motor F02: Thermo switch in the motor up contactor up contactor Motor 400V, 1420 U/min, 1,5 kW master side Motor 400V, 1420 U/min, 1,5 kW opposite side... -
Page 35: Record Of Installation
Otto Nussbaum Hebetechnik GmbH & Co.KG Korker Strasse. 24 77694 Kehl-Bodersweier Germany Record of installation The automotive lift 2.30 SL E with the serial number:..........was installed on:..........at the firm:..........at:..............the safety was checked and the lift was started. -
Page 36: Record Of Handing Over
Operating Instruction and Documentation 2.30 SL E Record of handing over The automotive lift 2.30 SL E with the serial number:..........was installed on:..........at the firm:..........at:..............the safety was checked and the lift was started. The persons below were introduced after the installation of the automotive lift. The introduction was carried out from an erector of the lift-manufacturer or from a franchised dealer (competent person). -
Page 37: Document "First Security Check Before Installation
Operating Instruction and Documentation 2.30 SL E First security check before installation Filling out and leave in this manual defect veri- kind of check right missing fication remark ---------------------------------------------------------------------------------------------------------------------------------------- Type plate......................Short operating instruction................... Warning designation.................... Designation lifting/lowering...... -
Page 38: Document "Regular Security Check
Operating Instruction and Documentation 2.30 SL E Regular security check Filling out and leave in this manual defect veri- kind of check right missing fication remark ---------------------------------------------------------------------------------------------------------------------------------------- Type plate......................Short operating instruction................... Warning designation.................... Designation lifting/lowering................ - Page 39 Operating Instruction and Documentation 2.30 SL E Regular security check Filling out and leave in this manual defect veri- kind of check right missing fication remark ---------------------------------------------------------------------------------------------------------------------------------------- Type plate......................Short operating instruction................... Warning designation.................... Designation lifting/lowering................
- Page 40 Operating Instruction and Documentation 2.30 SL E Regular security check Filling out and leave in this manual defect veri- kind of check right missing fication remark ---------------------------------------------------------------------------------------------------------------------------------------- Type plate......................Short operating instruction................... Warning designation.................... Designation lifting/lowering................
- Page 41 Operating Instruction and Documentation 2.30 SL E Regular security check Filling out and leave in this manual defect veri- kind of check right missing fication remark ---------------------------------------------------------------------------------------------------------------------------------------- Type plate......................Short operating instruction................... Warning designation.................... Designation lifting/lowering................
- Page 42 Operating Instruction and Documentation 2.30 SL E Regular security check Filling out and leave in this manual defect veri- kind of check right missing fication remark ---------------------------------------------------------------------------------------------------------------------------------------- Type plate......................Short operating instruction................... Warning designation.................... Designation lifting/lowering................
- Page 43 Operating Instruction and Documentation 2.30 SL E Regular security check Filling out and leave in this manual defect veri- kind of check right missing fication remark ---------------------------------------------------------------------------------------------------------------------------------------- Type plate......................Short operating instruction................... Warning designation.................... Designation lifting/lowering................
- Page 44 Operating Instruction and Documentation 2.30 SL E Regular security check Filling out and leave in this manual defect veri- kind of check right missing fication remark ---------------------------------------------------------------------------------------------------------------------------------------- Type plate......................Short operating instruction................... Warning designation.................... Designation lifting/lowering................
-
Page 45: Document "Extraordinary Security Check
Operating Instruction and Documentation 2.30 SL E Extraordinary security check Filling out and leave in this manual defect veri- kind of check right missing fication remark ---------------------------------------------------------------------------------------------------------------------------------------- Type plate......................Short operating instruction................... Warning designation.................... Designation lifting/lowering................
