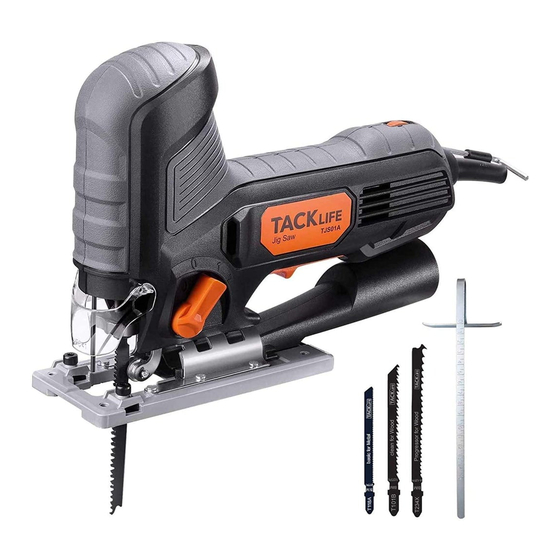

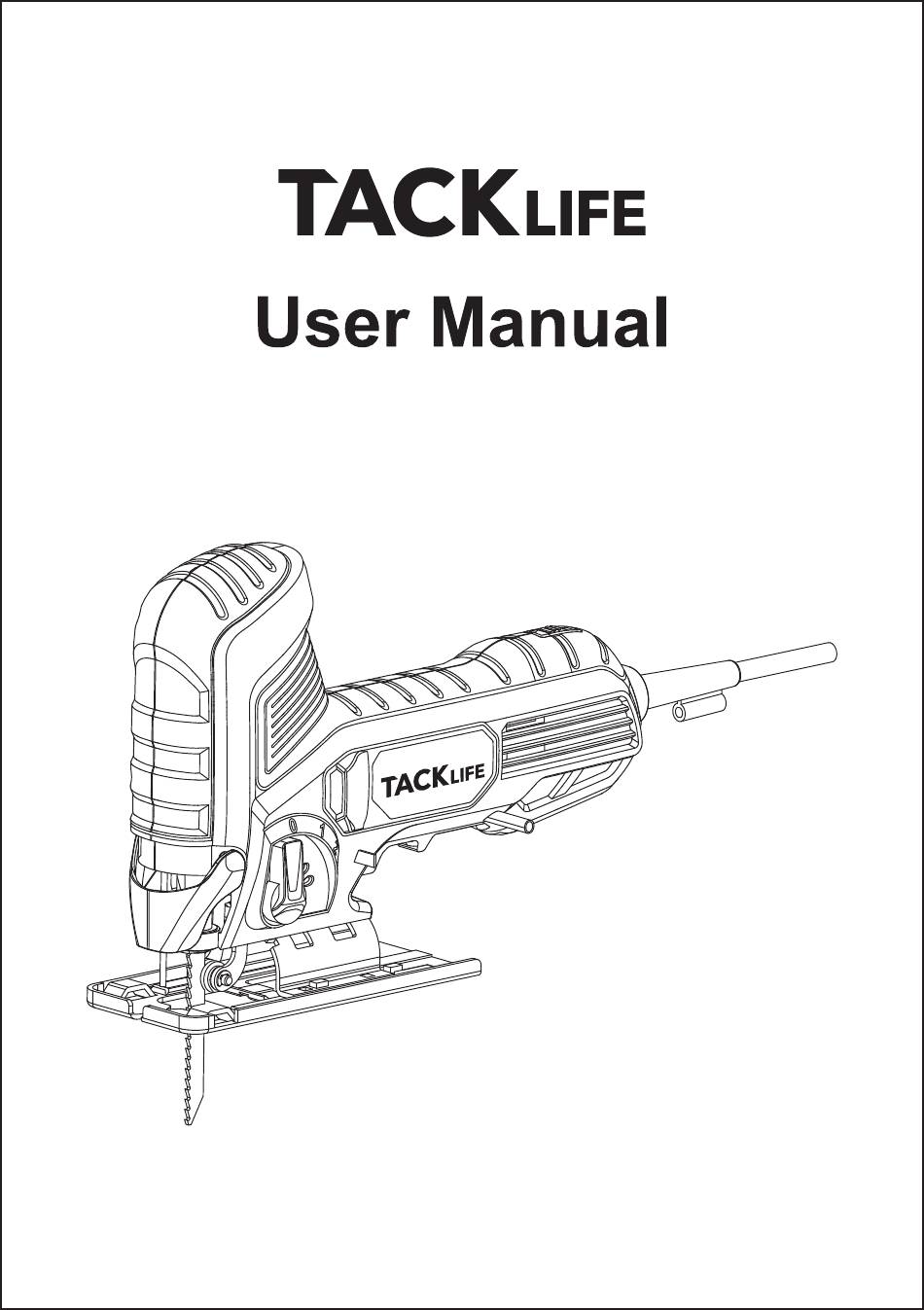

- Page 1 Jig saw Model:TJS01A...
-
Page 2: Description Of The Symbols
DESCRIPTION OF THE SYMBOLS The use of symbols in this manual is intended to draw your attention to possible risks. The safety symbols and the explanations that accompany them must be fully understood. Class II symbol: this machine is designed with double insulation. It is not necessary to connect it to an earthed power socket. -
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS Model TJS01A Voltage 110V~50Hz (US) 230V~50Hz (UK) Input current 5A (600 W) No-load speed 800-3000 SPM Max. cutting thickness: Steel 8 mm Wood 80 mm MAX cutting angle 45° Acoustic pressure level 87.3dB(A) k = 3 dB(A) Acoustic power level 98.3dB(A) k = 3 dB(A) - Page 4 OPERATON Before use Before making assembly, changing and adjustment for any accessory, disconnect the tool from the mains supply to avoid any unintentional starting. Please always check the mains supply voltage before use! It must correspond with the rating label on the appliance.
- Page 5 Insert a saw blade into the blade holder and clamp it. Loosen the screws and insert the parallel guide into the intended hole. Move the parallel guide until the distance between the tips of blade and edge of work piece corresponds with the required size.
-
Page 6: Maintenance
Dust suction To assembly the vacuum cleaner, please follow below steps: Click the dust extraction nozzle adapter and soft tube securely to the jig saw Push the blower button back for dust blowing. WARNING When sawing metal, sparks can be generated; do not use vacuum cleaner and keep other persons and combustible material away from work area. -
Page 7: Exploded View And Part List
● Was not used with the wrong accessories. ● Repairs where not carried out by any other than the authorized workshop. The warranty certificate is only valid in connection with the receipt. Please keep both in a safe place. The warranty does not affect your statutory rights. - Page 8 1. Push botton 2. Screw ST3.9x17 3. House 4. Blank 5. Protect cover 6. Hex screw M5x12 7. Contact plate 8. Aluminum plate 9. Pin￠4x24 10. Eccentric cap 11. Washer￠11x￠6.4x0.5 12. Blade assembly 13. Washer￠13x￠6.4x0.8 14. Open retaining ring￠6 15. Washer￠13x￠6.4x1 16.
- Page 10 Tel:929-533-7707 Shenzhen Take Tools Co., Ltd. www.tacklifetools.com www.facebook.com/Tacklife.US support@tacklifetools.com No.B714,Niulanqian Building, Minzhi Road, Longhua District, Shenzhen, Guangdong, China 518000...
