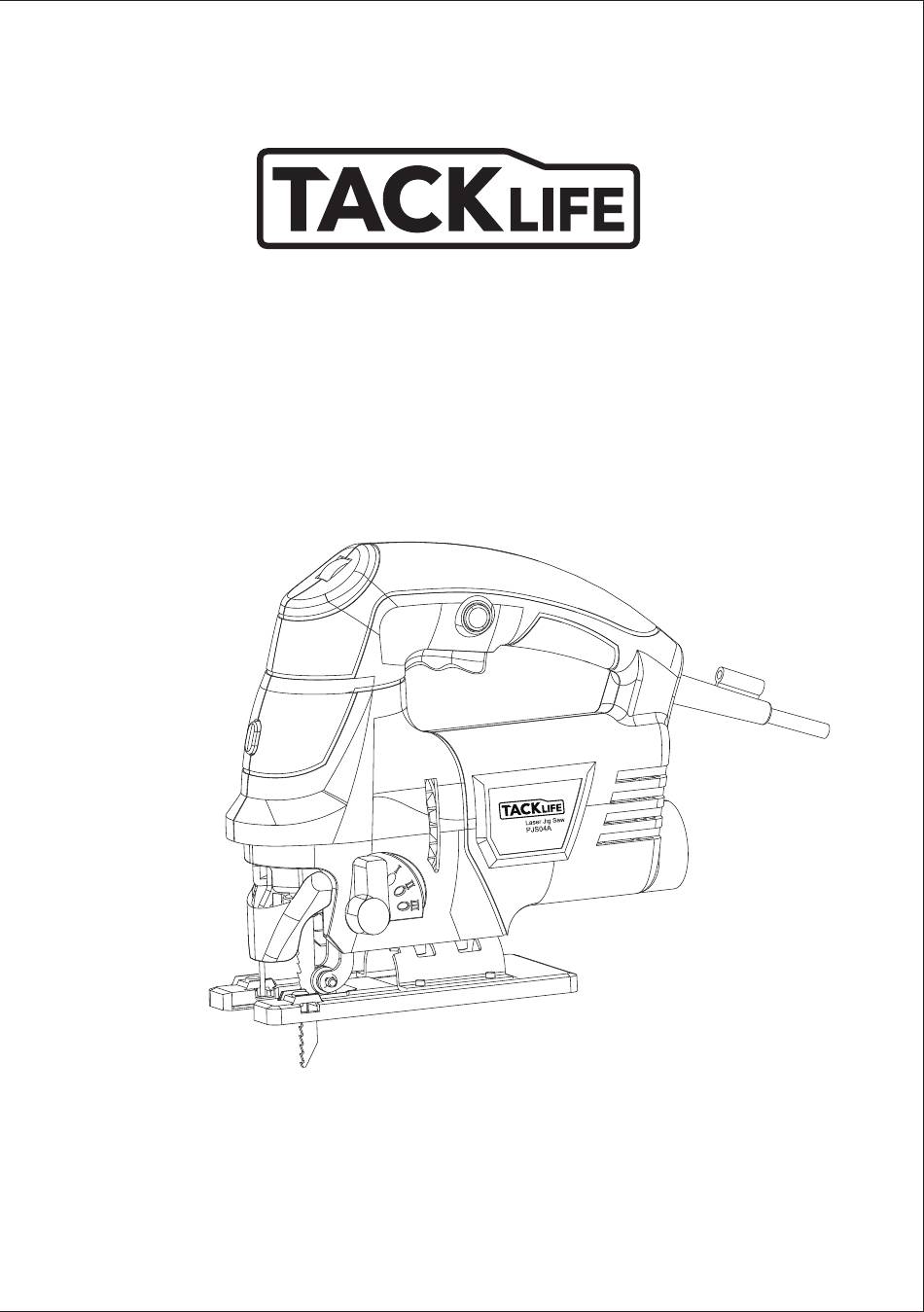

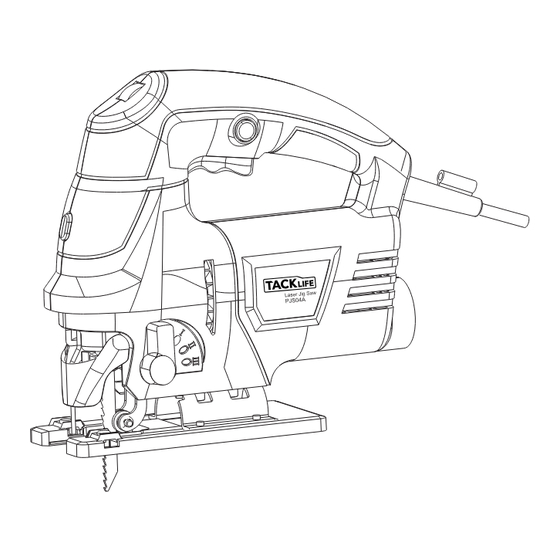

- Page 1 User Manual Laser Jig Saw Model: PJS04A...
-
Page 2: Operating Controls
Congratulations! Dear Customer! TACKLIFE confía is confident of the quality of its products and offers n outstanding guarantee. Our aim is to provide quality tools at an affordable price. We hope that you will enjoy sing this tool for many years. - Page 3 General safety hints for work with electric tools • Please, read and take note of the following comments that regard your protection against electric shock and risk of injury and fire. • Verify that the power supply in your area is compatible with the voltage listed on the machine. •...
- Page 4 Inserting / Replacing the saw blade Before any work on the machine itself, pull the mains plug. Use the adjusting wrench to loosen both holding screws on the saw blade holder.Insert the saw blade (teeth in cutting direction) until it latches in the stroke rod. When inserting the saw blade, take care that the back of the saw blade rests in the groove of the guide roller 6.Tighten holding screws again.
-
Page 5: Operating Instruction
switching can take place with the machine running: Step 0: No pendulum action; Step I: Small pendulum action; Step II: Medium pendulum action; Step III: Large pendulum action; The following basic recommendations are to be observed: • the smallerthe pendulum step selected (orswitched off), the finer and cleaner the cut edge; •... -
Page 6: Maintenance And Cleaning
a certain amount of practice, however, and is possible only with short saw blades. Place the front edge of the base plate on the work piece and switch on. Press the machine firmly against the workpiece and plunge the saw blade slowly into the workpiece. After reaching the required cutting depth, bring the machine again to the normal working position so that the complete surface of the base plate rests on the workpiece and continue to saw along the cutting line. - Page 7 Shenzhen Take Tools Co., Ltd. Web: www.tacklifetools.com Facebook: www.facebook.com/Tacklife.US/ E-mail: support@tacklife.net ADD: No.B714, Niulanqian Building, Minzhi Road,Longgang District, Shenzhen, Guangdong, China 518000 Made in China...
