Summary of Contents for TACKLIFE EPN01A

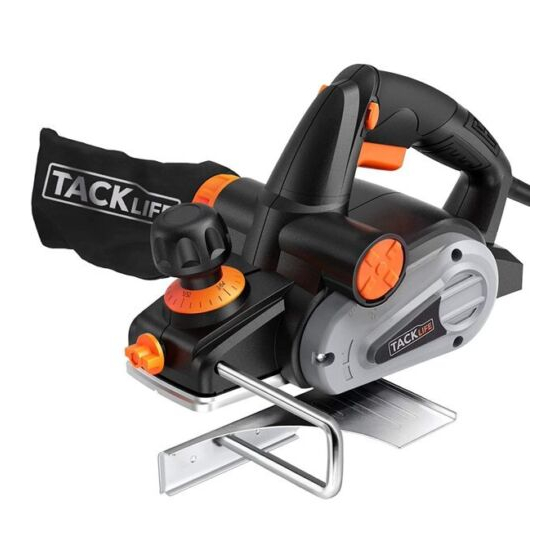

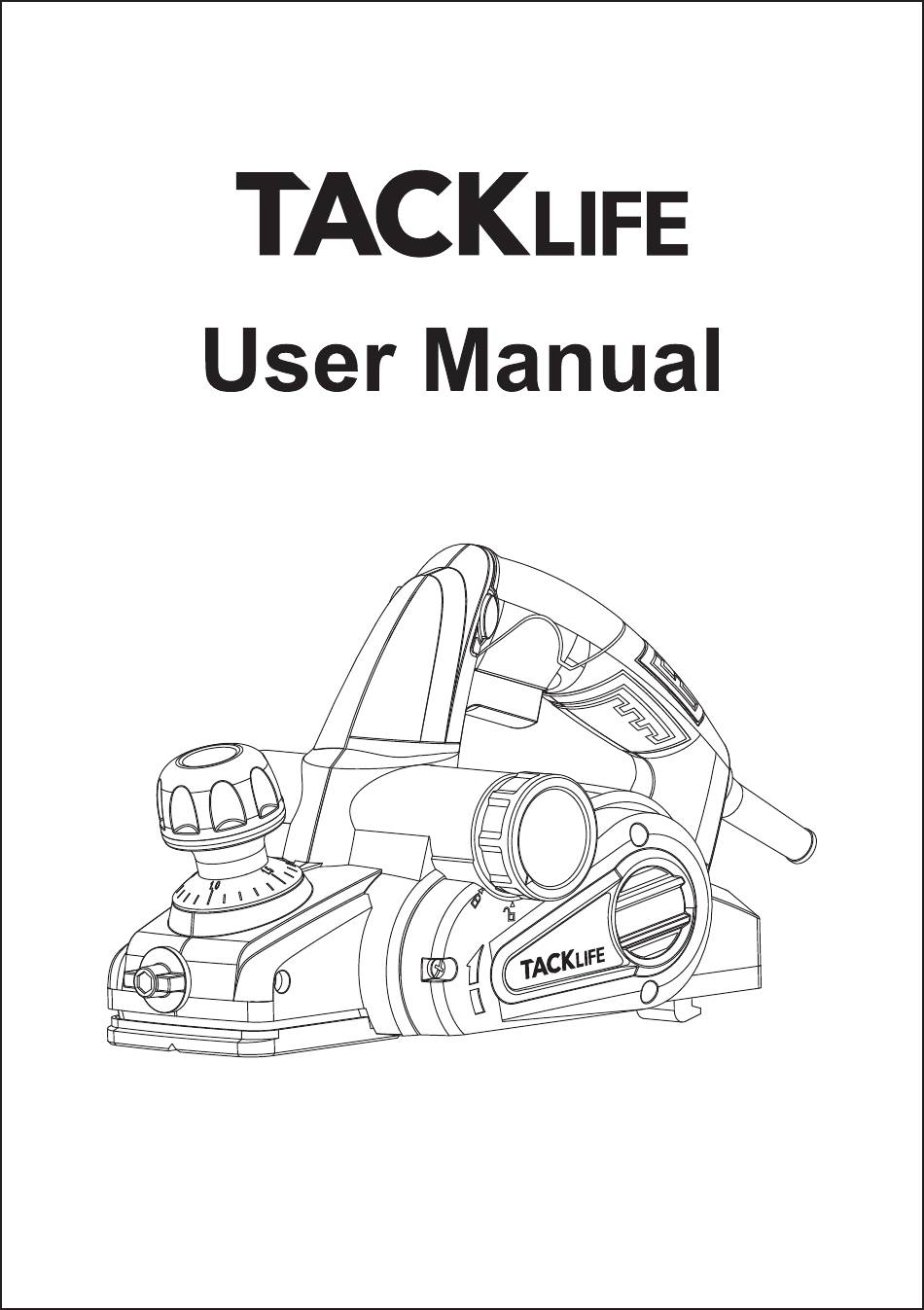

- Page 1 Electric Planer Model:EPN01A...
-
Page 2: Safety Notes
Safety Notes Model EPN01A Rated Power 220-240V 710W 50Hz Planing Width 82mm Planing Depth No-load speed 16500/min Protection class General Power Tool Safety Warnings Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. - Page 3 ● Prevent unintentional starting. Ensure the switch is inthe off-position before connecting to power source and/or battery pack, picking up or carrying the tool.Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. ●...
- Page 4 damaged and lead to increased vibrations. Products sold in GB only: Your product is fitted with a BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent.
- Page 5 Handle the blades very carefully. Use gloves or rags to protect your fingers or hands when removing or installing the blades. Use only the TACKLIFE wrench provided to remove or install the blades. Failure to do so may result in overtightening or insufficient tightening of the installation bolts. This could cause an injury...
- Page 6 1.Hex key ⑥ ⑦ ⑤ 2.Hex bolt ③ ④ 3.Socket wrench ① 4.SHCS ② 5.Small wooden stick 6.Blade holder 7.Blade 1） To remove the blade on the blade shaft, first turn the machine upside down on the workbench with the blade facing the operator, turn the blade shaft by hand to expose the screw, and then remove the screw.First use the socket wrench to turn the three hex bolts counterclockwise, and use the hex key to turn the two hex socket screws counterclockwise.
-
Page 7: Machine Use
Machine use Chips on both sides ① （Pic1） （Pic2） 1.Nozzle assembly ② 2.Dust bag 3. Dust bag zipper ③ Installing and removing Nozzle assembly： Installing (Pic 1)，insert the boss on the flute tube into the groove of the casing and turn it counter- clockwise to the position. - Page 8 Chamfering To make a chamfering cut as shown in the figure, align the“V” groove in the front base with the edge of the workpiece and plane it. Attention：Always be sure that the tool is switched off and unplugged before attempt- ing to perform inspection or maintenance.
-
Page 9: Maintenance And Customer Service
1. Tools and exhaust holes must be kept clean to avoid blockages. 2. If the power cord is damaged, you must purchase a power cord that adapts to the current. 3. The user replaceable parts are the transmission belt and carbon brush. Please contact TACKLIFE for other parts. -
Page 10: Warranty Registration
Warranty Registration We are glad to invite to register the warranty information at www.tacklifetools.com.After registration,you may kindly enjoy the exclusive service... - Page 11 Shenzhen Take Tools Co., Ltd. www.tacklifetools.com www.facebook.com/Tacklife.US support@tacklifetools.com No.B714,Niulanqian Building, Minzhi Road, Longhua District, Shenzhen, Guangdong, China 518000...
