HOSHIZAKI
CRESCENT CUBER
KM-151BAH
MODEL
PARTS LIST

Advertisement

loading
Need help?

Need help?

Do you have a question about the KM-151BAH and is the answer not in the manual?

Questions and answers

Related Manuals for Hoshizaki KM-151BAH

Summary of Contents for Hoshizaki KM-151BAH

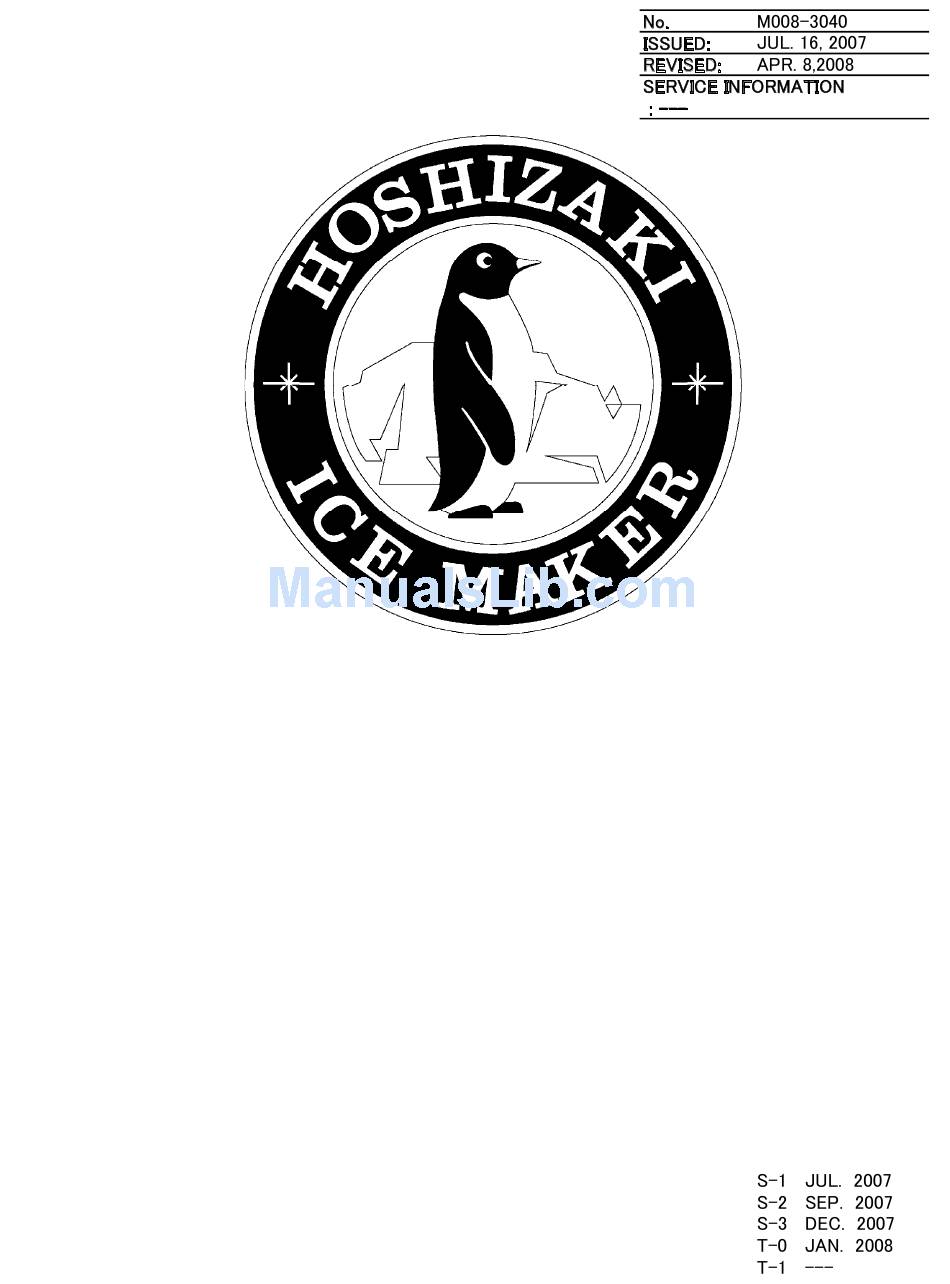

  • Page 1 HOSHIZAKI CRESCENT CUBER KM-151BAH MODEL PARTS LIST...

  • Page 2: Material Abbreviations

    MATERIAL ABBREVIATIONS ALUMINUM Aluminum COPPER Copper PLASTIC Acrylonitritrile -butadiene - styrene Polyacetal Ethylene vinyl acetate Polyamide = Nylon Polycarbonate Polyethylene Polyester PETP Polyethylene terephthalate = Tetlon Polypropylene Polystyrene PTFE Polytetrafluoroethylene = Teflon Polyurethane Polyvinyl chloride RUBBER Vinyl Nitrile EPDM EP rubber Nitrile butadiene rubber Natural rubber Neoprene...
  • Page 3 FASTENER ABBREVIATION LIST Phillips Truss Head Machine Screw Phillips Pan Head Machine Screw Phillips Flat Head Machine Screw Phillips Pan Head Machine Screw with Split Lock Washer Phillips Pan Head Machine Screw with Split Lock Washer and Flat Washer Phillips Truss Head Tapping Screw (Correspond to Type A) Phillips Truss Head Tapping Screw (Correspond to Type B) Phillips Truss Head Tapping Screw (Correspond to Type C) Phillips Truss Head Tapping Screw (Special)
  • Page 5 : KM-151BAH MODEL INDEX DESCRIPTION ICE MAKING MECHANISM ASSY MECHANICAL BIN SWITCH WATER CIRCUIT ASSY REFRIGERATION CIRCUIT CONTROL BOX ASSY LABEL LOCATION ACCESSORIES BODY ASSY FRONT FRAME RAIL (L) RAIL (R) AIR GUARD GROMMET-PIPE (C) GROMMET-PIPE (B) GROMMET-PIPE (A) FRONT PANEL...
  • Page 6 : KM-151BAH MODEL : A. ICE CUBER ASSY TITLE REQ'D NUMBER INDEX MATERIAL OR PART DESCRIPTION MODEL NUMBER NUMBER S-1,S-2S-3,T-0 T-1 TOP PANEL 369005A09...
  • Page 8 : KM-151BAH MODEL INDEX DESCRIPTION WATER TANK BRACKET - FLOAT SWITCH FLOAT SWITCH PUMP MOTOR ELBOW CUBE GUIDE (A) CUBE GUIDE (C) BRACKET - ICE MAKING INSULATION - MECHANISM (A) INSULATION - MECHANISM (B) SOLENOID VALVE WATER SUPPLY PIPE (A)
  • Page 9 : KM-151BAH MODEL INDEX DESCRIPTION INSULATION/MECHANISM (C) INSULATION/MECHANISM (D) PIPE/OVERFLOW SILICONE HOSE INSULATION - PUMP : B. ICE MAKING MECHANISM ASSY TITLE MATERIAL OR PART MODEL NUMBER NUMBER S-1,S-2S-3,T-0 T-1 3Y2430Z01 3Y2431Z01 369038P03 H11418230 L=230 14 DIA x 18 DIA...
  • Page 11 : KM-151BAH MODEL INDEX DESCRIPTION MECHANICAL SWITCH CASE DETECTOR : C. MECHANICAL BIN SWITCH TITLE MATERIAL OR PART MODEL NUMBER NUMBER S-1,S-2S-3,T-0 T-1 369019G01 371153G01 369020G01 371152G01 REQ'D NUMBER...
  • Page 13 : KM-151BAH MODEL INDEX DESCRIPTION WATER SUPPLY PIPE WATER VALVE RUBBER GASKET SOLENOID VALVE DRAIN HOSE DRAIN HOSE HOSE - VALVE DRAIN FITTING CABLE TIE INSULATION/DRAIN HOSE CLAMP HOSE CLAMP : D. WATER CIRCUIT ASSY TITLE MATERIAL OR PART MODEL NUMBER...
  • Page 15 : KM-151BAH MODEL INDEX DESCRIPTION BASE COMPRESSOR RUBBER GROMMET BOLT CONDENSER SHROUD BRACKET - FM FAN MOTOR FAN BLADE EVAPORATOR ASSY HOT GAS VALVE COPPER TUBE(A) - HI COPPER TUBE(B) - HI STRAINER COPPER TUBE(C) - HI COPPER TUBE(D) - HI...
  • Page 16 : KM-151BAH MODEL INDEX DESCRIPTION INSULATION TUBE (A) SEPARATOR COPPER TUBE - PROCESS(A) STARTING RELAY MOTOR PROTECTOR PROTECTOR COVER CLAMP CLIP GROMMET SLEEVE EXPANSION VALVE COVER COPPER TUBE - DRIER PRESSURE SWITCH INSULATION TUBE HOLDER - EXPV CLAMP CABLE TIE : E.
  • Page 18 : KM-151BAH MODEL INDEX DESCRIPTION CONTROL BOX TOGGLE SWITCH FUSE HOLDER POWER RELAY TRANSFORMER CONTROLLER BOARD START CAPACITOR CABLE TIE FUSE : F. CONTROL BOX ASSY TITLE MATERIAL OR PART MODEL NUMBER NUMBER S-1,S-2S-3,T-0 T-1 117624-01 KND-203 P00033-01 BF115 P00014-01...
  • Page 20 : KM-151BAH MODEL INDEX DESCRIPTION LOGO LABEL - PENGUIN CONTROL LABEL WIRING LABEL CAUTION LABEL LABEL - R134a LABEL - FUSE MAINTENANCE LABEL LABEL - AIR FILTER CAUTION LABEL - SERVICE LABEL - ALARM LABEL /CONTROL BOARD : G. LABEL LOCATION...
  • Page 22 : KM-151BAH MODEL INDEX DESCRIPTION SCOOP INSTRUCTION MANUAL WARRANTY CERTIFICATE REGISTRATION CARD : K. ACCESSORIES TITLE MATERIAL OR PART MODEL NUMBER NUMBER S-1,S-2S-3,T-0 T-1 2H0361-01 4A2525-01 L1M006100 2A4016-01 2A2894-01 REQ'D NUMBER...
