To Begin Troweling
1.

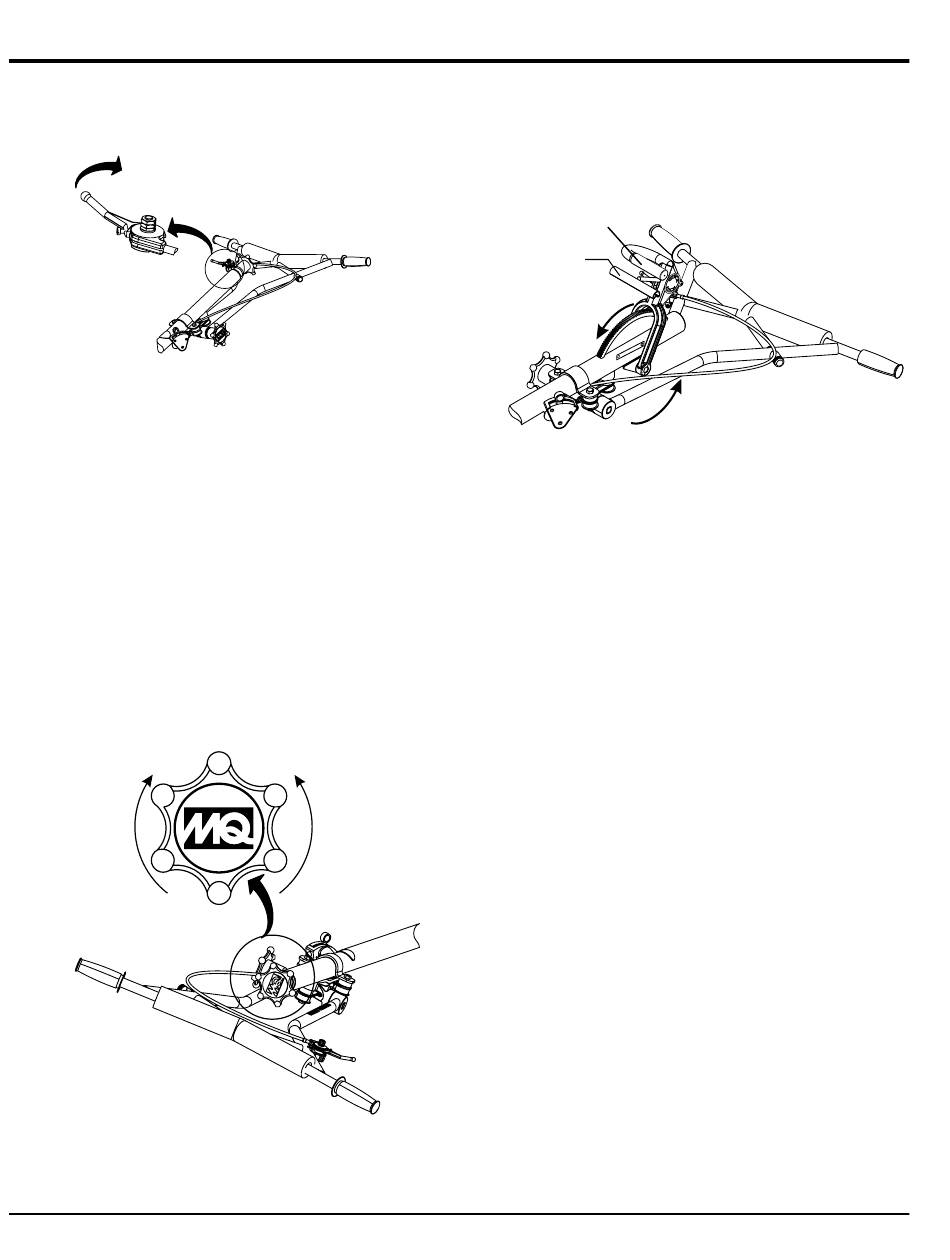

To begin troweling, pull the throttle lever (Figure 28)
backward to the "RUN" position.
RUN
THROTTLE
LEVER
Figure 28. Throttle Lever (Run)
Concrete Finishing Techniques
The following steps are intended as a basic guide to machine
operation, and are not to be considered a complete guide to
concrete finishing. We suggest that all operators (experienced
and novice) read "Slabs on Grade" published by the
American Concrete Institute, Detroit, Michigan. Read the
"Training" section of this manual for more information.
Pitching the Blades (Standard Handle)
To pitch the blades upwards using the "Standard" handle,
(Figure 29) simply turn the star-wheel clockwise. Turning the
star wheel counter clockwise will cause the blades to lay flat.
BLADE PITCH
STAR WHEEL
INCREASE
BLADE PITCH
(CW)
Figure 29. Blade Pitch Star Wheel
PAGE 24 — JS36 SERIES WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #5 (06/02/16)
Pitching the Blades (Quick Pitch™ Handle)
To pitch the blades upwards using the "Quick Pitch™"
handle, (Figure 30) simply pull the T-handle backwards while
squeezing the trigger. Pushing the T-handle forward will cause
the blades to lay flat.
(BLADES FLAT)
DECREASE
BLADE PITCH
(CCW)
T-HANDLE
TRIGGER
(SQUEEZE)
NO PITCH
BLADES PITCHED
UPWARDS FLAT
Figure 30. Blade Pitch T-Handle
