LED Floodlight with PIR - Black with 2m Cable
Please read these instructions carefully before use and retain for future
reference.
This floodlights must be installed by a qualified electrician in accordance with current
building and IET wiring regulations (BS7671).
IMPORTANT SAFETY INFORMATION
•
Do not use PVC cable to connect this floodlight to your wiring supply. Rubberised
cable (type H05RN-F), with three conductors of at least 1.0mm² cross-sectional
area must be used. This product must be connected to Earth.
•
The front of this floodlight is made of tempered glass, replace if cracked.
•
LED lamps are extremely bright. To avoid possible damage to the eyes, do not
stare into an LED beam.
•
In use, avoid touching any external surface of the floodlight, due to the possibility
of high temperatures.
•
Do not use near flammable materials.
•
The floodlight must be positioned so that there is at least 1m between the front of
the light unit and the surface to be illuminated.
•
It is suitable for use in an ambient temperature between -30°C and +45°C.
Model: PELL0289
1
Advertisement
Related Manuals for Pro-Elec PELL0289
Summary of Contents for Pro-Elec PELL0289

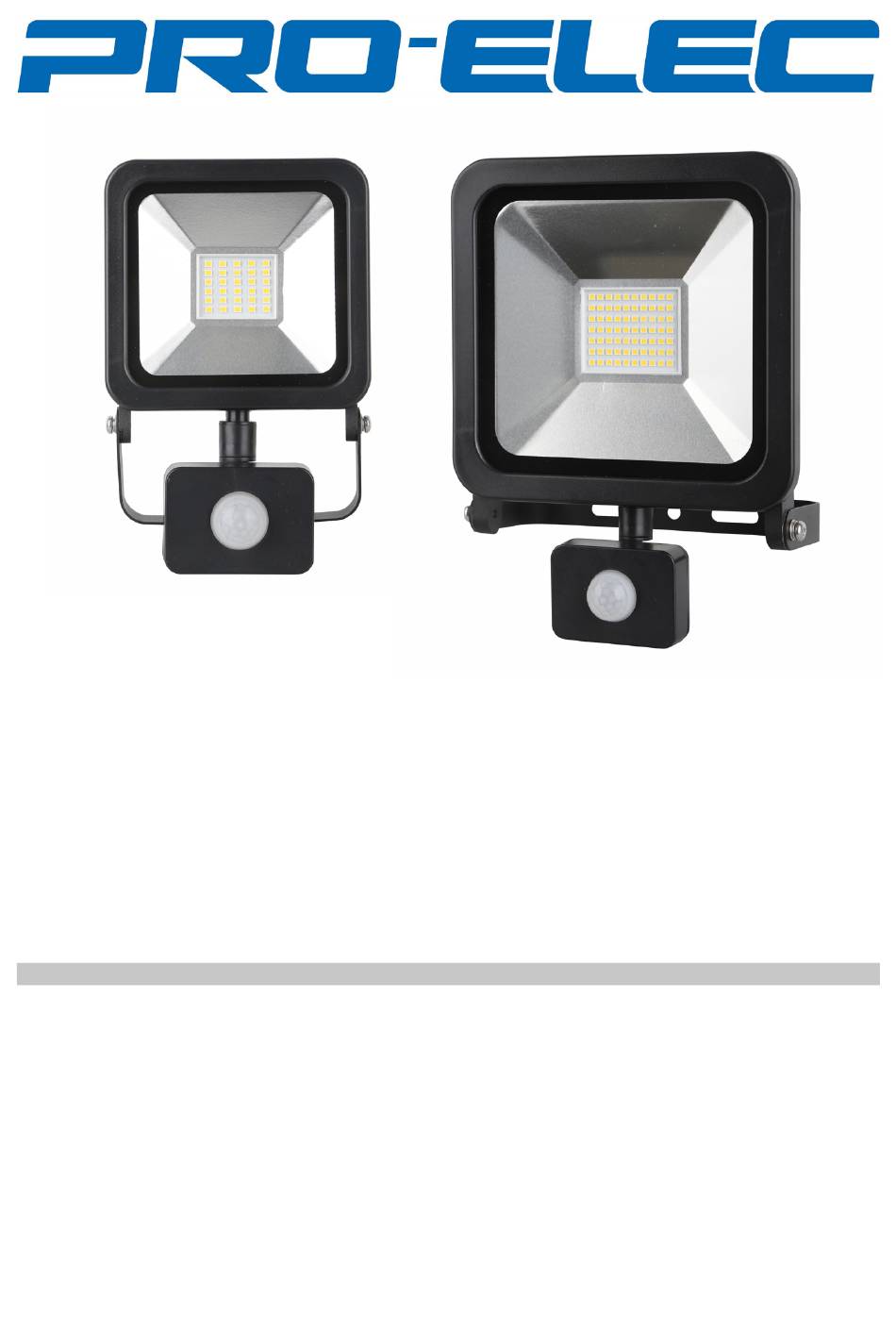

- Page 1 LED Floodlight with PIR - Black with 2m Cable Model: PELL0289 Please read these instructions carefully before use and retain for future reference. This floodlights must be installed by a qualified electrician in accordance with current building and IET wiring regulations (BS7671).
- Page 2 POSITIONING • This floodlight is suitable for outdoor lighting applications, for domestic use only. • Do not use in areas where an explosive or chemical atmosphere may exist. Do not use in areas where ventilation is restricted. • It is suitable for mounting on plasterboard, wood or masonry surfaces. Highly flammable surfaces such as plastic or polystyrene must not be used.
- Page 3 Wiring the Floodlight • Ensure that the mains supply is isolated before commencing installation. • A suitable rated connector must be used to connect the lead from the floodlight to the mains supply. • Connect the mains cable to the connector. Ensure that the correct polarities for Live, Neutral and Earth are observed i.e.
- Page 4 SPECIFICATION This product contains a light source of energy efficiency class F Model PELL0289 Cable length Input Voltage 220-240V AC 50Hz Luminous flux 1450lm Wattage Beam angle 120° Dimmable Nominal lifetime 25,000h Light source SMD2835 Colour temperature 6000K Ingress rating...
