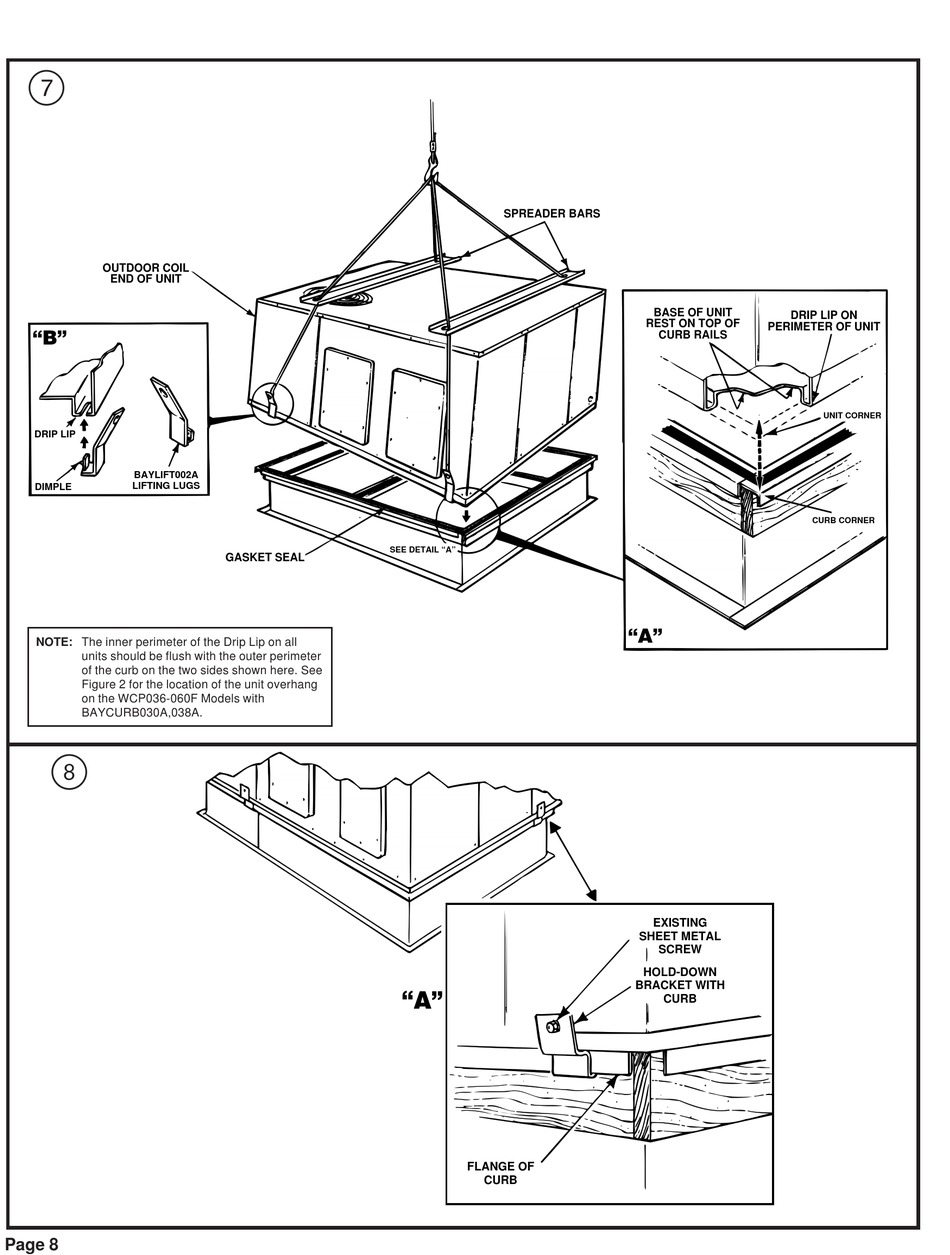

Trane WCP-IOM-1E Installation Operation & Maintenance page 8

7
OUTDOOR COIL
END OF UNIT
"B"
DRIP LIP
BAYLIFT002A
LIFTING LUGS
DIMPLE
NOTE: The inner perimeter of the Drip Lip on all
units should be flush with the outer perimeter
of the curb on the two sides shown here. See
Figure 2 for the location of the unit overhang
on the WCP036-060F Models with
BAYCURB030A,038A.
8
Page 8
SEE DETAIL "A"
GASKET SEAL
"A"
SPREADER BARS
REST ON TOP OF
"A"
SHEET METAL
HOLD-DOWN
BRACKET WITH
FLANGE OF
CURB
BASE OF UNIT
DRIP LIP ON
PERIMETER OF UNIT
CURB RAILS
UNIT CORNER
CURB CORNER
EXISTING
SCREW
CURB
