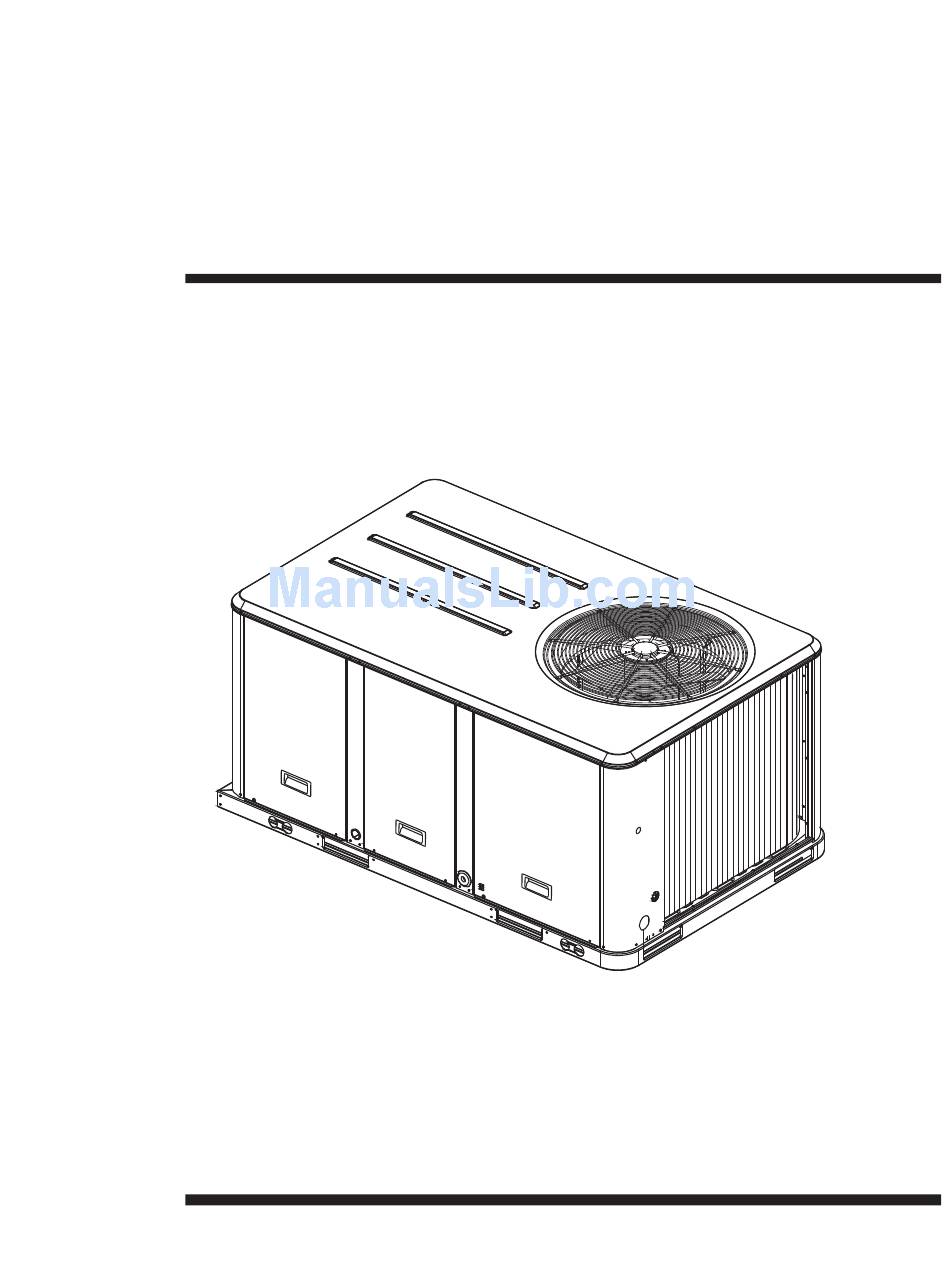

- Page 1 Installation Operation Maintenance Packaged Heat Pump 3 Through 10 Ton Model Numbers WSC036E - WSC120E RT-SVX23E-EN January 2010...
-
Page 2: Overview Of Manual
CFCs such as HCFCs and HFCs. Responsible Refrigerant Practices! Trane believes that responsible refrigerant practices are important to the environment, our customers, and the air conditioning industry. All technicians who handle refrigerants must be certified. The Federal Clean Air Act (Section 608) sets forth the requirements for handling, reclaiming, recovering and recycling of certain refrigerants and the equipment that is used in these service procedures. - Page 3 The units described in this manual use R-410A refrigerant which operate at higher pressures than R-22 refrigerant. Use ONLY R-410A rated service equipment or components with this unit. For specific handling concerns with R-410A, please contact your local Trane representative. Failure to use R-410A rated service equipment or components could result in equipment exploding under R-410A high pressures which could result in death, serious injury, or equipment damage.
-
Page 4: Table Of Contents
Economizer Control Actuator (Optional) ReliaTel™ Control ... 8 RTCI -- ReliaTel™ Trane Communication Interface (Optional) ..8 RLCI - ReliaTel™ LonTalk Communication Interface (Optional) ..8 RTOM –... - Page 5 Table of Contents Compressor Crankcase Heaters (Optional on WSC036E*, WSC048E1, and & WSC060E1 - Standard on remaining units) ....... . 49 Test Modes .
- Page 6 Model Number Descriptions Digit 1 - Unit Type Digit 14 - Fresh Air Selection Digit 18 - Through the Base Provisions W Packaged Heat Pump No Fresh Air Manual Outside Air Damper 0-50% No Through the Base Provisions Digit 2 - Efficiency Motorized Outside Air Damper Through the Base Electric Standard Efficiency...
-
Page 7: Model Number Notes
Model Number Descriptions Model Number Notes 1. Available on 3-5 Ton Models. 2. Manual outside air damper will ship factory supplied within the unit, but must be field installed. 3. High pressure control is standard on all units. 4. Multispeed direct drive standard on single-phase products. -
Page 8: General Information
It is capable of delivering up to 25 inch pounds of torque and is powered by 24 VAC. RTCI -- ReliaTel™ Trane Communication Interface (Optional) This module is used when the application calls for an ICSTM building management type control system. -
Page 9: Rtom - Reliatel™ Options Module (Optional)
General Information RTOM – ReliaTel™ Options Module (Optional) The RTOM monitors the supply fan proving, clogged filter, supply air temperature, exhaust fan setpoint, supply air tempering, Frostat™ and smoke detector. Refer to system input devices and functions for operation. System Input Devices & Functions The RTRM must have a zone sensor or thermostat input in order to operate the rooftop unit. - Page 10 General Information restart the compressor. On dual compressor units only the affected compressor circuit is locked out. High Pressure Control The high pressure controls are wired in series between the compressor outputs on the RTRM and the compressor contactor coils. If the high pressure control switch opens, the RTRM senses a lack of current while calling for cooling and locks the compressor out.
- Page 11 Remote Zone Sensor (BAYSENS074*) This electronic sensor features single setpoint capability and timed override with override cancellation. It is used with a Trane Integrated Comfort™ building management system. Remote Zone Sensor (BAYSENS016A) This bullet type temperature sensor can be used for; outside air (ambient) sensing, return air temperature sensing, supply air temperature sensing, remote temperature sensing (uncovered).
- Page 12 General Information for adequate sampling. Failure to follow these instructions will prevent the smoke detectors from performing it's design function. Important: Airflow through the unit is affected by the amount of dirt and debris accumulated on the indoor coil and filters. To insure that airflow through the unit is adequate for proper sampling by the return air smoke detector, complete adherence to the maintenance procedures, including recommended intervals between filter changes, and coil cleaning is required.
-
Page 13: Pre-Installation
Pre-Installation Unit Inspection As soon as the unit arrives at the job site • Verify that the nameplate data matches the data on the sales order and bill of lading (including electrical data). • Verify that the power supply complies with the unit nameplate specifications. •... -
Page 14: Unit Clearances
Pre-Installation Note: Do not use the unit’s heater for temporary heat without first completing the start-up procedure detailed under “Starting the Unit” . The manufacturer will not assume any responsibility for equipment damage resulting from condensate accumulation on the unit’s electrical and/or mechanical components. Unit Clearances p. -
Page 15: Unit Clearances
Unit Clearances Figure 1. Typical Installation Clearances for Single & Multiple Unit Applications WSC060-120E Units WSC036-048E Units RT-SVX23E-EN... - Page 16 Unit Clearances Figure 2. Heat pump - 3-4 ton standard efficiency Note: All dimensions are in inches/millimeters. Figure 3. Heat pump - 3-4 ton standard efficiency - unit clearance and roof opening Note: All dimensions are in inches/millimeters. CLEARANCE 36”...
- Page 17 Unit Clearances Figure 4. Heat pump - 3-4 ton standard efficiency - roof curb Note: All dimensions are in inches/millimeters. 44 MM 44 MM 1038 1038 MM 1053 1053 MM Figure 5. Heat pumps - 5-6 ton standard efficiency Note: All dimensions are in inches/millimeters. RT-SVX23E-EN...
- Page 18 Unit Clearances Figure 6. Heat pump - 7½ ton standard efficiency Note: All dimensions are in inches/millimeters. Figure 7. Heat pump - 5-7½ ton - unit clearance and roof opening Note: All dimensions are in inches/millimeters. RT-SVX23E-EN...
-
Page 19: Filters
Unit Clearances Figure 8. Heat pump - 5-7½ ton - roof curb Note: All dimensions are in inches/millimeters. (356 MM) (2130 MM) Figure 9. Heat pump - 10 ton standard efficiency Notes: 1. All dimensions are in inches/millimeters. 2. 2" Electrical Connection: Single Point Power When Heat Installed (WSC Models only.) INDOOR TOP PANEL OUTDOOR TOP PANEL UNIT CONTROL WIRE... - Page 20 Unit Clearances Figure 10. Heat pump - 10 ton standard efficiency - unit clearance and roof opening Notes: 1. All dimensions are in inches/millimeters. 99 11/16” (2532 MM) 63 3/16” (1605 MM) Figure 11. Heat pump - 10 ton standard efficiency - roof curb Notes: 1.
-
Page 21: Installation
Unit Weights Corner Weights Center of Gravity (in.) Tons Model No. Shipping Length Width WSC036E WSC048E WSC060E WSC072E 7½ WSC090E WSC120E 1431 1219 (a) Weights are approximate. (b) Corner weights are given for information only. Figure 12. Corner weights RT-SVX23E-EN... - Page 22 Installation Figure 13. Rigging and Center-of-Gravity Data (a),(b) Table 2. Factory installed options (fiops)/accessory net weights (lbs) WSC036E-048E WSC060E WSC072E-090E WSC120E Net Weight Net Weight Net Weight Net Weight Accessory 3-4 Ton 5 Ton 6-7½ Ton 10 Ton Barometric Relief Belt Drive Option (3 phase only) —...
-
Page 23: Foundation
Installation Foundation If the unit is installed at ground level, elevate it above the snow line. Provide concrete footings at each support location with a “full perimeter” support structure or a slab foundation for support. Refer to Table 1, p. 21 for the unit’s operating and point loading weights when constructing a footing foundation. - Page 24 Installation Figure 15. Heat pumps - 5-7½ ton - horizontal airflow supply and return Note: All dimensions are in inches/millimeters. Figure 16. Heat pump - 10 ton standard efficiency - horizontal airflow supply/return Notes: 1. All dimensions are in inches/millimeters. 3 7/8”...
