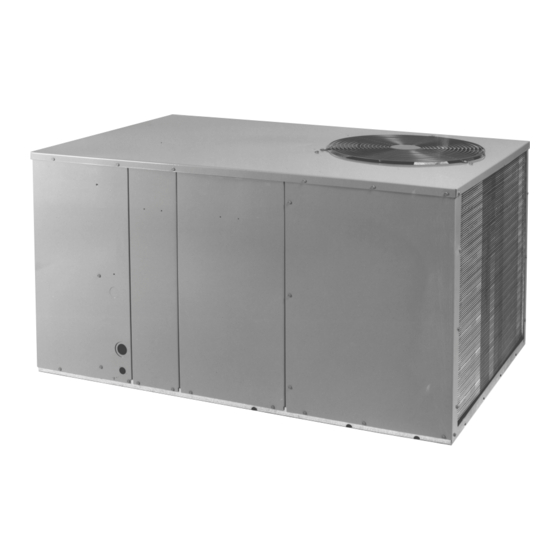

Summary of Contents for Trane WCC030

  • Page 1: Product Data

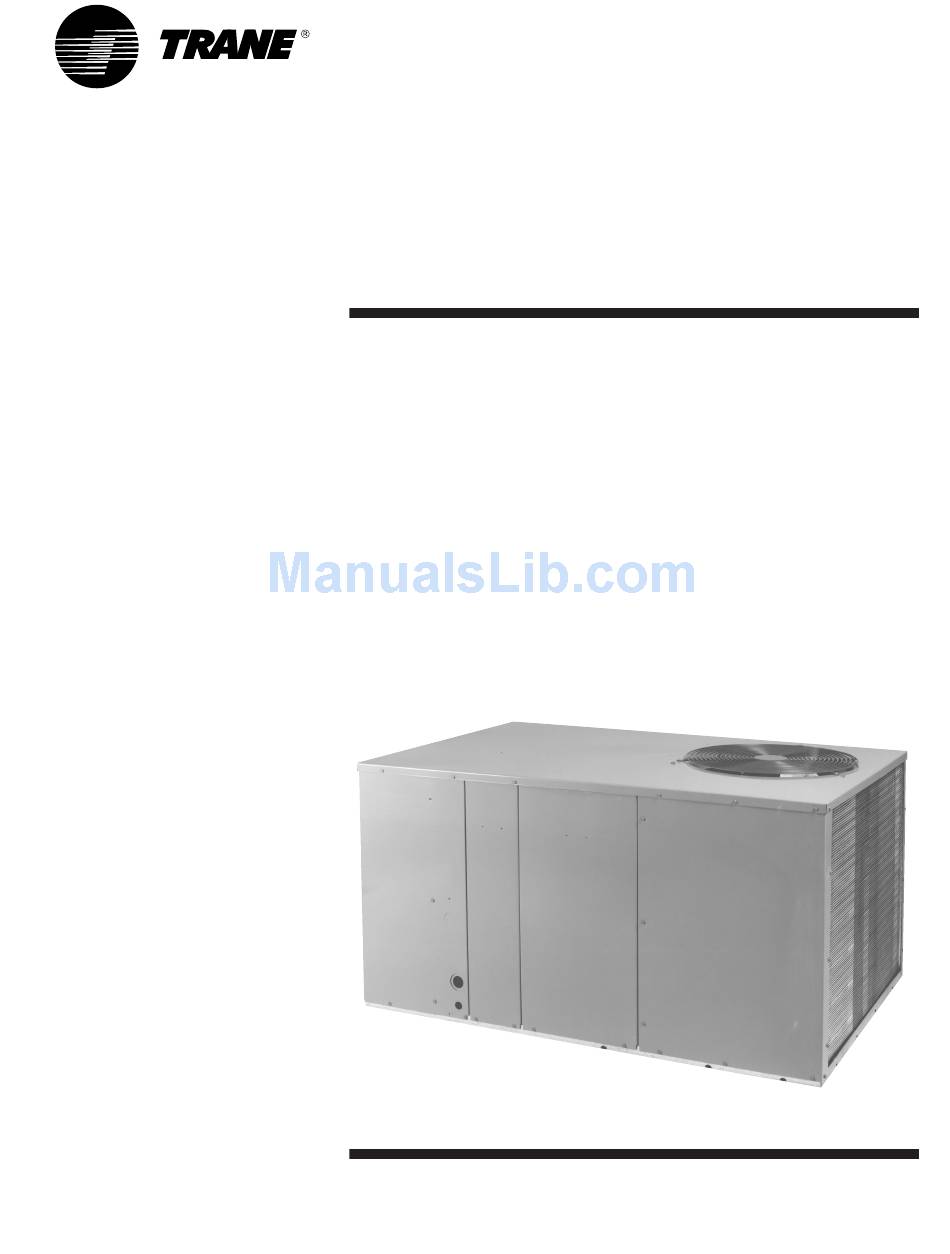

    50 Hz Package Heat Pump Units Product Data Convertible Models WCC030,040,050 30, 40, 50 MBh IPB-99-7-EN-10-6-99...
  • Page 2: Feature Summary

    General Features T-Top™ Corrosion Resistant Screws Powder Paint Water-Shed™ Base High Efficiency Climatuff ® Compressor DuraTuff™ Plate Fin Coil Time Defrost Control Sloped Drain Pan 100% Foil Faced Insulation Easy Access ©American Standard Inc. 1999 IPB-99-7-EN-10-6-99...
  • Page 3: Table Of Contents

    Contents Feature Summary Features and Benefits Standard Equipment Impack Accessories Optional Equipment Selection Procedure Model Number Nomenclature General Data English Units WCC030FD00B WCC040FD00B WCC050FD00B Metric Units WCC030FD00B WCC040FD00B WCC050FD00B Performance Data Cooling English Units Cooling Metric Units Heating English Units Heating Metric Units Indoor Blower Performance Optional Equipment...
  • Page 4: Features And Benefits

    Trane requirements. We at WCC’s, and YCC’s minimizes both the residence or building thereby minimizing the Trane test our designs at our factory and not training of sales and service personnel and ground space required. Blankets of on our customers! replacement parts inventory.
  • Page 5: Impack Accessories

    Impack Accessories • Standard Thermostats • 25% Fresh Air Kit No special thermostats are needed with The kit installs over the horizontal return air Impack units. opening with six screws for downflow require- ments. It can be used on horizontal air flow •...
  • Page 6: Optional Equipment

    Optional Equipment OPTIONAL EQUIPMENT FOR PACKAGE UNITS (Check mark [ ] indicates accessories included). Indoor Thermostats — 3H/2C Auto Changeover ..........................BAY28X153A [ ] 2H/1C Auto ..............................BAY28X138A [ ] Prog. Setback Thermostat (WCC-F) ......................BAYSTAT024B [ ] 2 Stage Htg/Clg Thermostat (WCC-F) ......................BAYSTAT239 [ ] Remote Sensor for Prog.
  • Page 7: Selection Procedure

    Selection Procedure Model Number Nomenclature PRODUCT TYPE TC = Package Cooling PRODUCT WC = Package Heat Pumps SERVICE CHANGE AIRFLOW CONFIGURATION MINOR DESIGN C = Convertible MODIFICATION NOMINAL NET COOLING FACTORY INSTALLED OPTIONS CAPACITY EXAMPLES: 030 = 30 MBh 0 = No factory installed options 040 = 40 MBh 050 = 50 MBh AUXILIARY HEATING CAPACITY...
  • Page 8: General Data

    General Data English Units MODEL WCC030FD00B WCC040FD00B WCC050FD00B RATED VOLTS/PH/HZ 380-415/3/50 380-415/3/50 380-415/3/50 A.R.I. RATING RATINGS (COOLING) 1 BTUH 31000 39600 51600 INDOOR AIR FLOW (CFM) 1000 1325 1675 POWER INPUT (kW) 3.12 4.10 5.53 EER-95 (BTU/WATT-HR.) 6 9.50 9.70 9.35 EER-82 10.90...
  • Page 9: Metric Units

    General Data Metric Units MODEL WCC030FD00B WCC040FD00B WCC050FD00B RATED VOLTS/PH/HZ 380-415/3/50 380-415/3/50 380-415/3/50 A.R.I. RATING RATINGS (COOLING) 1 BTUH 9085 11606 15122 INDOOR AIR FLOW (CMH) 1690 2240 2830 POWER INPUT (kW) 3.12 4.10 5.53 EER-95 (BTU/WATT-HR.) 6 9.50 / 10.00 9.70 / 10.00 9.35 / 10.00 EER-82...
  • Page 10: Performance Data

    Performance Data Cooling English Units WCC030FD00B AT 1000 CFM (CAPACITIES ARE GROSS IN BTUH/1000-INDOOR FAN HEAT IGNORED) O.D. I.D. TOTAL SENS. CAP. AT ENTERING D.B. TEMP. COMPR. D.B. W.B. CAP. CORRECTION FACTORS - OTHER AIRFLOWS 29.3 23.6 25.4 27.2 29.1 30.0* 2.29 (MULTIPLY OR ADD AS INDICATED)
  • Page 11: Cooling Metric Units

    Performance Data Cooling Metric Units WCC030FD00B AT 1698 CMH (GROSS CAPACITY IN KILOWATTS) O.D. I.D. TOTAL SENS. CAP. AT ENTERING D.B. TEMP. COMPR. D.B. W.B. CAP. 22.2 23.3 24.4 25.6 26.7 CORRECTION FACTORS - OTHER AIRFLOWS 15.0 8.8* (MULTIPLY OR ADD AS INDICATED) 29.4 17.2 19.4...
  • Page 12: Heating English Units

    Performance Data Heating English Units WCC030FD00B AT 1000 CFM O.D. HEATING CAPACITY (BTUH/1000) AT TOTAL POWER IN KILOWATTS AT CORRECTION FACTORS - OTHER AIRFLOWS TEMP. INDICATED INDOOR DRY BULB TEMP. INDICATED INDOOR DRY BULB TEMP. (VALUE AT 1000 CFM TIMES CORR. FACTOR = VALUE AT NEW AIRFLOW) 7.94 7.70...
  • Page 13: Heating Metric Units

    Performance Data Heating Metric Units WCC030FD00B AT 0.47 CUBIC METERS/SEC O.D. HEATING CAPACITY IN KILOWATTS AT TOTAL POWER IN KILOWATTS AT CORRECTION FACTORS - OTHER AIRFLOWS TEMP. INDICATED INDOOR DRY BULB TEMP. INDICATED INDOOR DRY BULB TEMP. (VALUE AT 0.47 CMS TIMES CORR. FACTOR 23.3 31.7 35.8...
  • Page 14: Indoor Blower Performance

    Performance Data Indoor Blower Performances WCC030FD Indoor Blower Performances WCC040FD High Speed [1] Low Speed High Speed Low Speed [1] Air Flow Air Flow CFM (CMH) CFM (CMH) Press IN. Press IN. Press IN. Press IN. W.G. (PA) Watts W.G. (PA) Watts W.G.
  • Page 15: Optional Equipment

    Optional Equipment 25% Manual Fresh Air Kit Typical Filter Frame IPB-99-7-EN-10-6-99...
  • Page 16: Controls

    Optional Equipment Economizer and Rain Hood (Downflow Applications) ALL DIMENSIONS ARE IN INCHES (MM) ECONOMIZER APPLICATION MODEL MODELS 16-5/8 23-1/2 22-9/16 8-5/8 22-1/4 25-1/8 1-1/2 BAYECON054B WCC030F (500) (420) (600) (575) (220) (565) (640) (38) WCC040F 12-1/8 26-1/8 32-1/8 1-3/4 BAYECON055B OMIT WCC050F...
  • Page 17: Field Wiring

    Field Wiring WCC-F Heat Pump Models NOTES: 1. FUSED DISCONNECT SIZE, POWER WIRING AND GROUNDING OF EQUIPMENT MUST COMPLY WITH CODES. 2. BE SURE POWER SUPPLY AGREES WITH EQUIPMENT AND HEATER NAMEPLATE. 3. LOW VOLTAGE WIRING TO BE 18 AWG MINIMUM CONDUCTOR.
  • Page 18 Field Wiring Wiring Diagram for WCC030,040,050FD00B Units continued on next page From Dwg. 21D756914 P03 IPB-99-7-EN-10-6-99...
  • Page 19 Field Wiring Wiring Diagram for WCC030,040,050FD00B Units From Dwg. 21D756914 P03 IPB-99-7-EN-10-6-99...
  • Page 20: Dimensions

    Dimensions BAYCURB030A Roof Curb Outline With WCC030F Units ALL DIMENSIONS ARE IN INCHES (MM) This member used (865) on WCC030F (1350) models only (533) (1275) (790) (38) (2.1) SUPPLY (355) (222) (32) RETURN (38) (200) (38) (108) (38) (38) (38) AIR DUCT MODEL NO.
  • Page 21 Dimensions BAYCURB034A Roof Curb Outline With WCC040,050F Units ALL DIMENSIONS ARE IN INCHES (MM) (32) (1575) (1090) (38) (114) (305) (450) SUPPLY (1015) (355) (38) (38) RETURN MODEL NO. AIR DUCT OPENINGS SUPPLY — (533) (482) WCC040F (38) (21) WCC050F 22-1/8 RETURN —...
  • Page 22 Field Fabricated (Side X Side) Ducts — WCC030-050F Units Installed from Above Mounting Curb ALL DIMENSIONS ARE IN INCHES (MM) P.V.C. Rubber Gasket Position on BAYCURB030A for Unit Placement — WCC030-050F Units ALL DIMENSIONS ARE IN INCHES (MM) NOTES: 1. OVERLAP AND POSITION JOINTS IN P.V.C. RUBBER GASKET.
  • Page 23 Dimensions WCC030-050F OUTLINE DRAWING — Front ALL DIMENSIONS ARE IN INCHES (MM) CABINET MODEL BAYCURB "A" "B" "C" "D" "E" "F" "G" "H" SIZE 14-1/8 16-5/8 29-3/16 13-3/4 "B" WCC030F 030A — — (360) (425) (915) (865) (740) (350) WCC040F...
  • Page 24 Dimensions WCC030-050F OUTLINE DRAWING — Front ALL DIMENSIONS ARE IN INCHES (MM) MODEL 55-1/4 29-3/16 12-15/16 4-7/8 WCC030F KNOCKOUTS FOR 3/4" (20) AND 1-1/4" (32) CONDUIT (1405) (915) (740) (330) (122) WCC040F 64-5/16 33-3/8 14-13/16 4-7/8 KNOCKOUTS FOR 3/4" (20) AND 1-1/2" (38) CONDUIT...
  • Page 25 Dimensions WCC030-050F OUTLINE DRAWING — Rear ALL DIMENSIONS ARE IN INCHES (MM) (35) (30) CONDENSATE DRAIN FOR 3/4" (19) FEMALE NPT 3 (75) (19) (16) (19) (12) UNIT CORNER WEIGHT LBS (KG) MODEL WEIGHT LBS (KG) 55-1/4 29-3/16 18-9/16 11-1/16...
  • Page 26: Mechanical Specification Options

    Mechanical Specification Options General System Controls The units shall be horizontal airflow as System controls include condenser fan, shipped and convertible to downflow. All units evaporator fan and compressor contactors. shall be factory assembled, piped, internally Accessories wired and fully charged with R-22. Units shall Roof Curb —...
  • Page 27 Notes IPB-99-7-EN-10-6-99...
  • Page 28: Ipb-99-7

    Trane International Unitary Systems Stocking Location P.I.-L 1789 Chaussée de Wavre 1160 Brussels Belgium www.trane.com Since The Trane Company has a policy of continuous product improvement, it reserves the right to change An American Standard Company design and specifications without notice.
