PROGRAMMING & SETUP

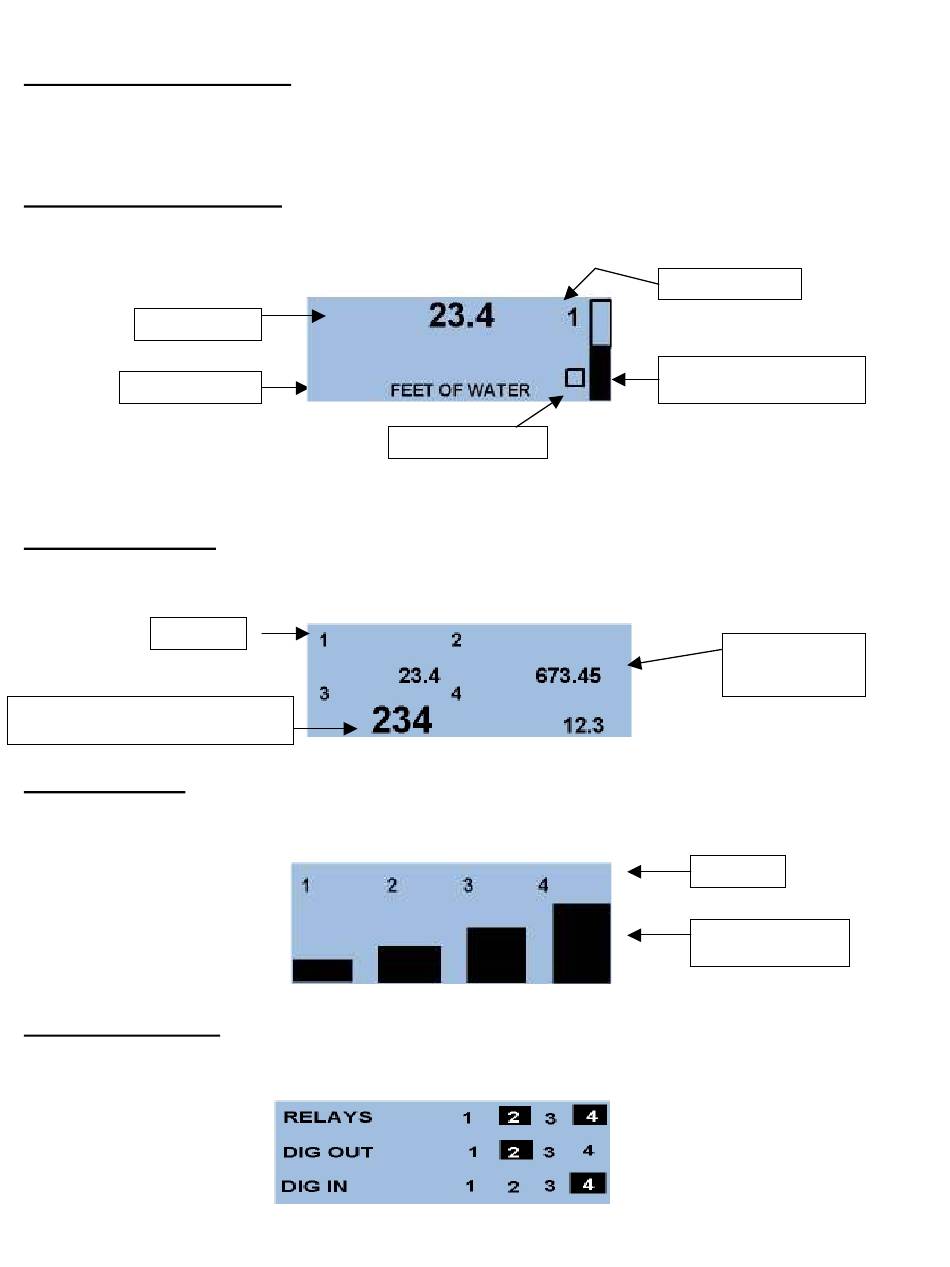

The Myriad QLC offers multiple 'Main' screens allowing the user to view the four input channels in
different ways. The options are as follows:
Individual Channel Screens:
Shows a selected channel in numeric and graphical formats with engineering units and channel number.
Process Value
Engineering Units
Press → ← buttons to advance through each channel in this format and to the following displays....
Combination Screen:
Shows all channel values in numerical format with channel number indicators.
Channel #
Displayed value will appear larger depending
on the resolution (decimal place) selected.
Bargraph Screen:
Shows all four input values as vertical bar graphs with channel numbers.
Digital Status Screen:
Shows the status of the digital inputs, relay outputs and digital outputs for each channel.
CPU Activity Monitor
Selected Channel #
Graphical Process Indicator
Process value for
channel 2
Channel #
Vertical Bargraph
