Using the → ← buttons, scroll to 'NEXT', press 'ENTER' to move to linearized screen.
NOTE: If the application is linear between minimum input signal and maximum input signal, i.e.
"2 point", then scroll the cursor to 'NEXT' and press 'ENTER' to continue the scaling process.
Note on non linear inputs
The Myriad QLC offers a 20 point linearizer which allows the user to customize the indicated display for
20 points of input signal. This feature is often used to read volume in a non-linear vessel such as a
horizontal tank with domed end caps. a "strapping table" must be created to allow the display to be linear
with the resultant non-linear input signal.

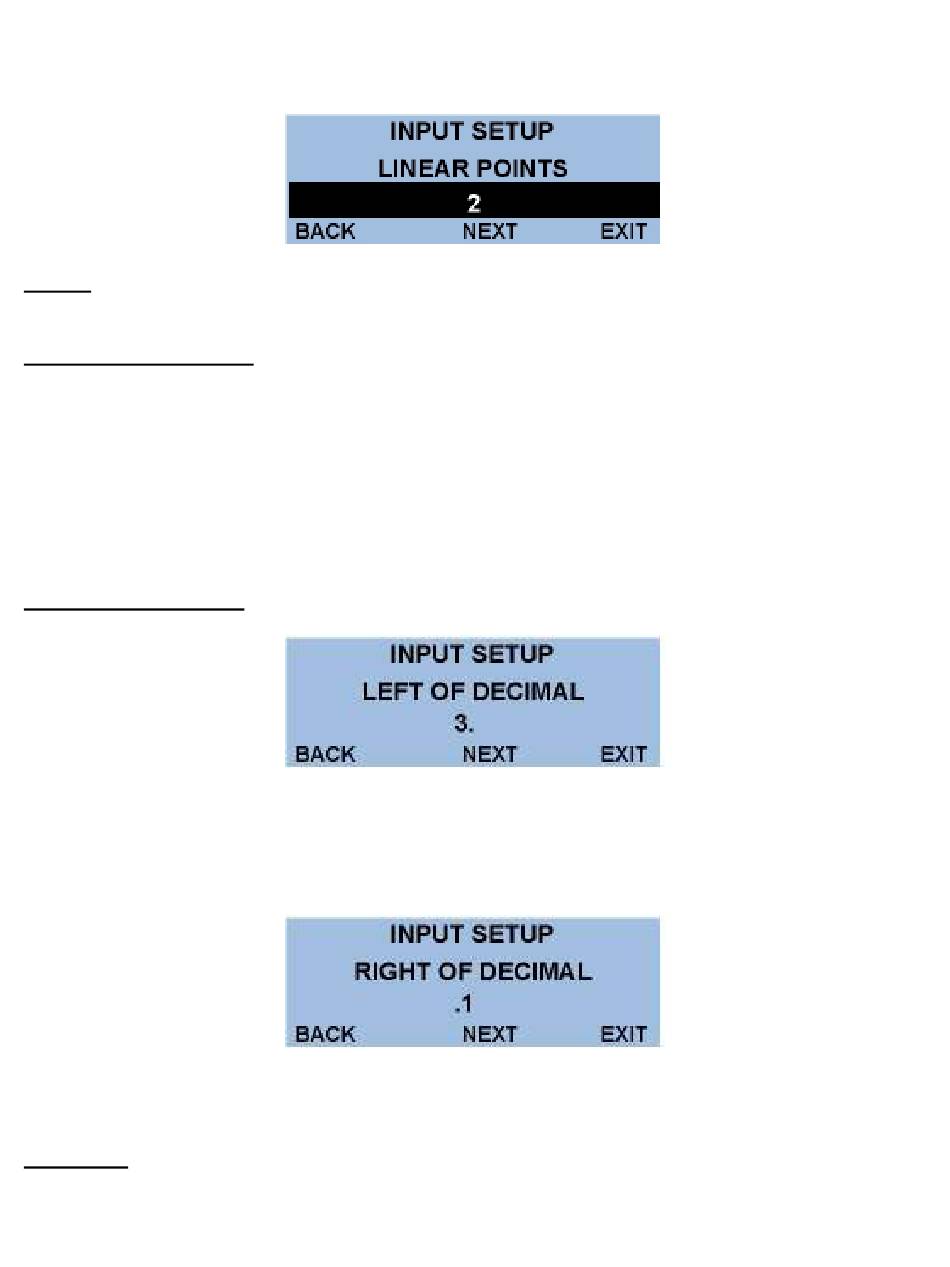

If the user required a non-linear display, scroll the cursor to "# OF POINTS" and use the ↑ ↓ arrows to
select the number of calibration points required, then select 'NEXT' and press 'ENTER' to continue.
Decimal Point Selection:
Use ↑ ↓ buttons to select number of digits to be displayed to the left of decimal point, scroll to 'NEXT',
press 'ENTER' and use this screen to enter the number digits to appear after the decimal point.
Scroll to 'NEXT' and press 'ENTER' to proceed to the 'Input Text' screen.
Input Text:
When 'SCALE MENU' is complete the 'INPUT TEXT' menu is the last menu in the scaling process.
