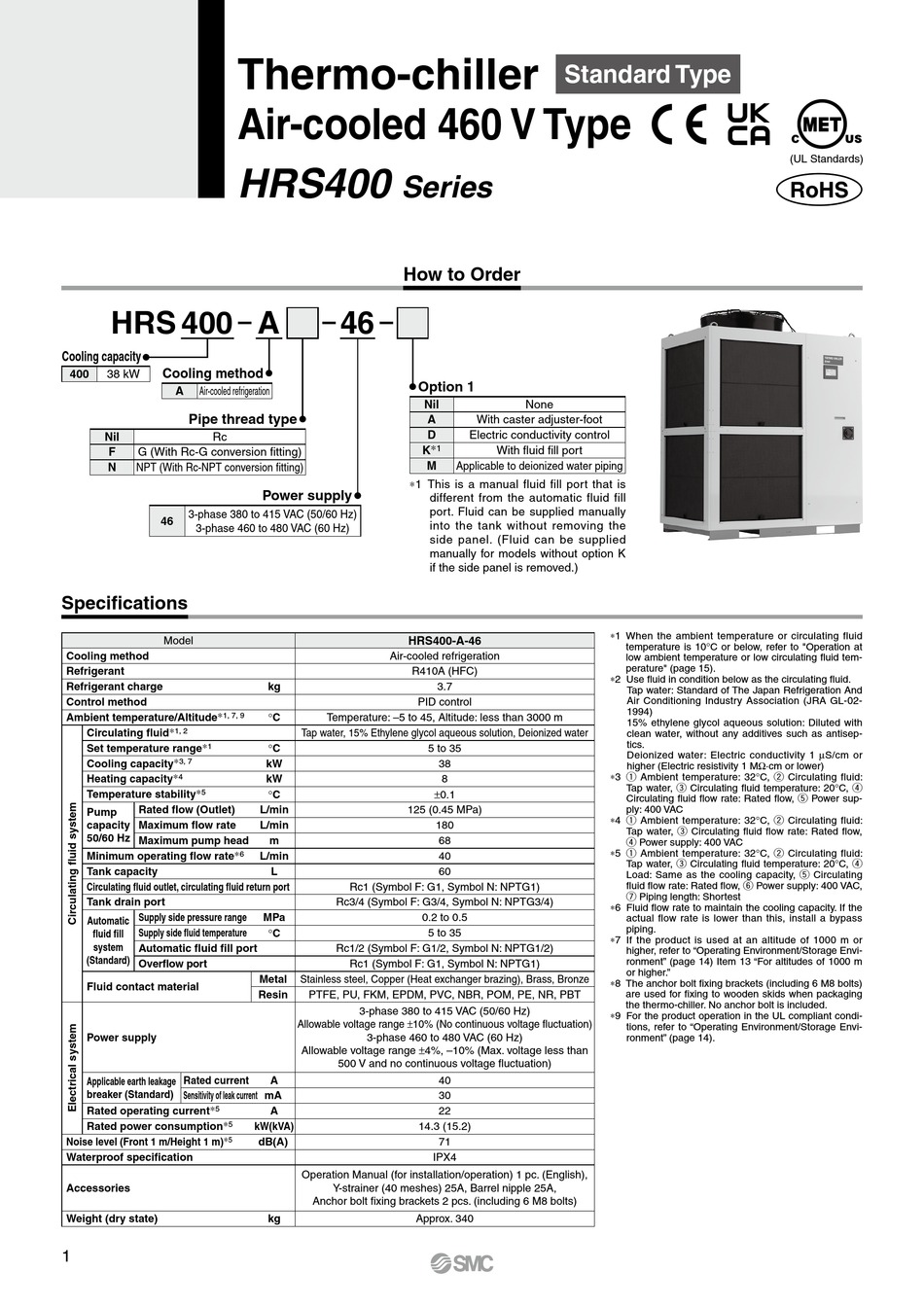

Specifications - SMC Networks HRS400 Series Manual

HRS 400 A
Cooling capacity
Cooling method
400 38 kW
A Air-cooled refrigeration
Pipe thread type
Nil Rc
F
G (With Rc-G conversion fitting)
N
NPT (With Rc-NPT conversion fitting)
3-phase 380 to 415 VAC (50/60 Hz)
46
3-phase 460 to 480 VAC (60 Hz)

Specifications

Model
Cooling method
Refrigerant
Refrigerant charge
Control method
Ambient temperature/Altitude ∗
1, 7, 9
Circulating fluid ∗
1, 2
Set temperature range ∗
1
Cooling capacity ∗
3, 7
Heating capacity ∗
4
Temperature stability ∗
5
Rated flow (Outlet)
Pump
capacity Maximum flow rate
50/60 Hz
Maximum pump head
Minimum operating flow rate ∗
Tank capacity
Circulating fluid outlet, circulating fluid return port
Tank drain port
Supply side pressure range
Automatic
Supply side fluid temperature
fluid fill
system
Automatic fluid fill port
(Standard)
Overflow port
Fluid contact material
Power supply
Rated current
Applicable earth leakage
breaker (Standard)
Sensitivity of leak current mA
Rated operating current ∗
5
Rated power consumption ∗
5
Noise level (Front 1 m/Height 1 m) ∗
5
Waterproof specification
Accessories
Weight (dry state)
1
Thermo-chiller
Air-cooled 460 V Type
HRS400
Series
How to Order
46
∗1 This is a manual fluid fill port that is
Power supply
HRS400-A-46
Air-cooled refrigeration
R410A (HFC)
kg
°C
Temperature: –5 to 45, Altitude: less than 3000 m
Tap water, 15% Ethylene glycol aqueous solution, Deionized water
°C
kW
kW
°C
L/min 125 (0.45 MPa)
L/min
m
6 L/min
L
Rc1 (Symbol F: G1, Symbol N: NPTG1)
Rc3/4 (Symbol F: G3/4, Symbol N: NPTG3/4)
MPa
°C
Rc1/2 (Symbol F: G1/2, Symbol N: NPTG1/2)
Rc1 (Symbol F: G1, Symbol N: NPTG1)
Metal Stainless steel, Copper (Heat exchanger brazing), Brass, Bronze
Resin PTFE, PU, FKM, EPDM, PVC, NBR, POM, PE, NR, PBT
3-phase 380 to 415 VAC (50/60 Hz)
Allowable voltage range ±10% (No continuous voltage fluctuation)
3-phase 460 to 480 VAC (60 Hz)
Allowable voltage range ±4%, –10% (Max. voltage less than
500 V and no continuous voltage fluctuation)
A
A
kW(kVA)
dB(A)
Operation Manual (for installation/operation) 1 pc. (English),
Y-strainer (40 meshes) 25A, Barrel nipple 25A,
Anchor bolt fixing brackets 2 pcs. (including 6 M8 bolts)
kg
Standard Type
Option 1
Nil
None
A With caster adjuster-foot
D Electric conductivity control
K ∗
1 With fluid fill port
M
Applicable to deionized water piping
different from the automatic fluid fill
port. Fluid can be supplied manually
into the tank without removing the
side panel. (Fluid can be supplied
manually for models without option K
if the side panel is removed.)
3.7
PID control
5 to 35
38
8
±0.1
180
68
40
60
0.2 to 0.5
5 to 35
40
30
22
14.3 (15.2)
71
IPX4
Approx. 340
∗1 When the ambient temperature or circulating fluid
temperature is 10°C or below, refer to "Operation at
low ambient temperature or low circulating fluid tem-
perature" (page 15).
∗2 Use fluid in condition below as the circulating fluid.
Tap water: Standard of The Japan Refrigeration And
Air Conditioning Industry Association (JRA GL-02-
1994)
15% ethylene glycol aqueous solution: Diluted with
clean water, without any additives such as antisep-
tics.
Deionized water: Electric conductivity 1 μS/cm or
higher (Electric resistivity 1 MΩ·cm or lower)
∗3 q Ambient temperature: 32°C, w Circulating fluid:
Tap water, e Circulating fluid temperature: 20°C, r
Circulating fluid flow rate: Rated flow, t Power sup-
ply: 400 VAC
∗4 q Ambient temperature: 32°C, w Circulating fluid:
Tap water, e Circulating fluid flow rate: Rated flow,
r Power supply: 400 VAC
∗5 q Ambient temperature: 32°C, w Circulating fluid:
Tap water, e Circulating fluid temperature: 20°C, r
Load: Same as the cooling capacity, t Circulating
fluid flow rate: Rated flow, y Power supply: 400 VAC,
u Piping length: Shortest
∗6 Fluid flow rate to maintain the cooling capacity. If the
actual flow rate is lower than this, install a bypass
piping.
∗7 If the product is used at an altitude of 1000 m or
higher, refer to "Operating Environment/Storage Envi-
ronment" (page 14) Item 13 "For altitudes of 1000 m
or higher."
∗8 The anchor bolt fixing brackets (including 6 M8 bolts)
are used for fixing to wooden skids when packaging
the thermo-chiller. No anchor bolt is included.
∗9 For the product operation in the UL compliant condi-
tions, refer to "Operating Environment/Storage Envi-
ronment" (page 14).
