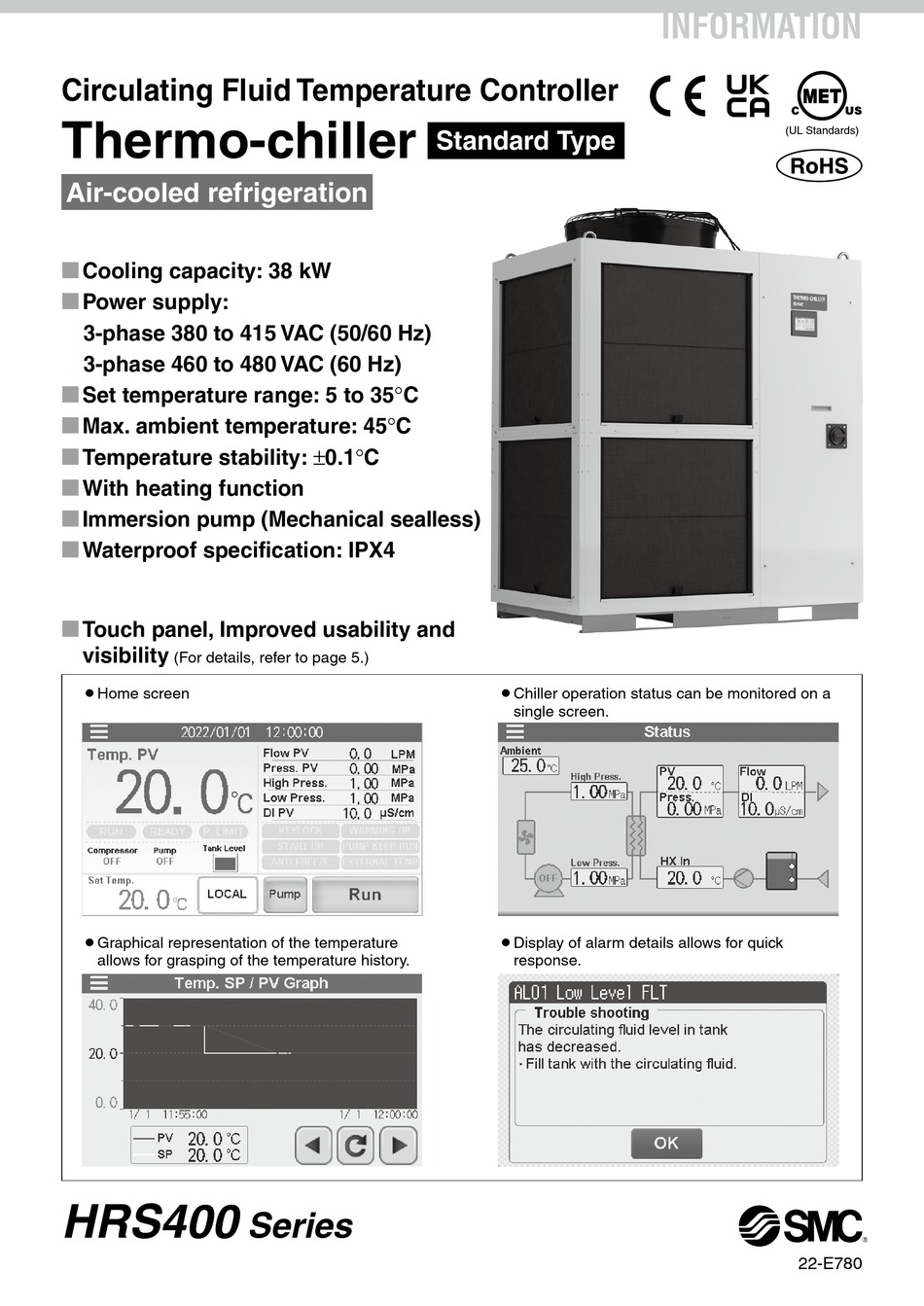

Circulating Fluid Temperature Controller
Thermo-chiller
Air-cooled refrigeration
M
Cooling capacity: 38 kW
M
P ower supply:
3-phase 380 to 415 VAC (50/60 Hz)
3-phase 460 to 480 VAC (60 Hz)
M
Set temperature range: 5 to 35°C
M
Max. ambient temperature: 45°C
M
Temperature stability: ±0.1°C
M
With heating function
M
Immersion pump (Mechanical sealless)
M
Waterproof specification: IPX4
M
T ouch panel, Improved usability and
visibility
(For details, refer to page 5.)
¡Home screen
¡ Graphical representation of the temperature
allows for grasping of the temperature history.
HRS400
Series
Standard Type
¡ Chiller operation status can be monitored on a
single screen.
¡ Display of alarm details allows for quick
response.
INFORMATION
(UL Standards)
22-E780
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SMC Networks HRS400 Series
Summary of Contents for SMC Networks HRS400 Series
- Page 1 INFORMATION Circulating Fluid Temperature Controller Thermo-chiller Standard Type (UL Standards) Air-cooled refrigeration Cooling capacity: 38 kW P ower supply: 3-phase 380 to 415 VAC (50/60 Hz) 3-phase 460 to 480 VAC (60 Hz) Set temperature range: 5 to 35°C Max. ambient temperature: 45°C Temperature stability: ±0.1°C With heating function Immersion pump (Mechanical sealless)
-
Page 2: Specifications
Thermo-chiller Standard Type Air-cooled 460 V Type (UL Standards) HRS400 Series How to Order HRS 400 A Cooling capacity Cooling method 38 kW Option 1 Air-cooled refrigeration None Pipe thread type With caster adjuster-foot Electric conductivity control K ∗ With fluid fill port G (With Rc-G conversion fitting) Applicable to deionized water piping NPT (With Rc-NPT conversion fitting) -
Page 3: Cooling Capacity
HRS400 Series Thermo-chiller Standard Type Cooling Capacity Pump Capacity HRS400-Am-46-m HRS400-Am-46-m Ambient temperature 32°C Circulating fluid outlet Usable flow rate range Ambient temperature 45°C Circulating fluid return port Pump Circulating head fluid pressure Circulating fluid temperature [°C] Circulating fluid flow rate [L/min] [MPa]... - Page 4 HRS400 Series Standard Type Dimensions HRS400-Am-46-m Ventilation air inlet Ventilation air inlet Ventilation air outlet Eye bolt M16 1350 Touch panel (4 places) Handle Handle Breaker handle Automatic fluid fill port Dustproof filter Circulating fluid outlet Rc1/2 Overflow port Circulating fluid return port Fluid level indicator Dustproof filter...
-
Page 5: Power Cable Specifications
HRS400 Series Thermo-chiller Standard Type Recommended External Piping Flow External piping circuit is recommended as shown below. Thermo-chiller automatic fluid Fluid supply fill port Circulating fluid outlet Customer’s equipment Circulating fluid return port Overflow port To wastewater collection pit Tank drain port ∗... -
Page 6: Operation Display Panel
HRS400 Series Standard Type Operation Display Panel The basic operation of this unit is controlled through the operation display panel on the front of the product. Home Screen and Setting Items Classification Item Explanation Circulating fluid temperature Indicates the current temperature Compressor Displays the operation and stop state of the compressor Pump... -
Page 7: Communication Functions
HRS400 Series Thermo-chiller Standard Type Communication Functions Contact Input/Output Contact Input/Output, Analog Output Communication Specifications Item Specifications Insulation method Photocoupler Rated input voltage 24 VDC · Run/Stop signal Contact · External switch signal input signal Operating voltage range 21.6 to 26.4 VDC ·... - Page 8 HRS400 Series Standard Type Communication Functions Contact Input/Output, Analog Output Pin Nos. Pin no. Application Division Default setting 24 VDC output Output — 24 VDC input Input — Run/Stop ∗ Contact input signal 1 Input Operation mode request signal (fixed) ∗ Contact input signal 3 Input OFF ∗...
-
Page 9: Serial Communication
HRS400 Series Thermo-chiller Standard Type Communication Functions Serial Communication The following operations can be performed by the serial communication RS-232C/RS-485. Writing Readout To run/stop the product ∗ To readout the circulating fluid temperature, pressure, flow rate and electrical conductivity To change the set value of To readout the status of respective parts of the product (e.g., operation status and content of alarm) circulating fluid temperature ∗1 For Option D (With electric conductivity control) - Page 10 HRS400 Series ∗ Options have to be selected when Options ordering the thermo-chiller. It is not possible to add them after purchasing the unit. Option symbol With Caster Adjuster-foot HRS400 A 46 A With caster adjuster-foot Unfixed casters and adjuster feet stops are mounted 1232 Option symbol Electric Conductivity Control...
-
Page 11: Optional Accessories
HRS400 Series Optional Accessories q Piping Conversion Fitting This is a fitting to change the port from Rc to G or NPT. · Circulating fluid outlet, Circulating fluid return port, Overflow port Rc1 → NPT1 or G1 · Drain port Rc3/4 → NPT3/4 or G3/4 ·... - Page 12 HRS400 Series e Bypass Piping Set When the circulating fluid goes below the minimum operating flow rate (as shown below), cooling capacity will be reduced and the temperature stability will be badly affected. Use the bypass piping set to ensure a circulating fluid flow rate of the minimum operating flow rate or more.
- Page 13 HRS400 Series Cooling Capacity Calculation Required Cooling Capacity Calculation Example 1: When the heat generation amount in the customer’s equipment is known. The heat generation amount can be determined based on the power consumption or output of the Q: Heat generation heat generating area —...
- Page 14 HRS400 Series Required Cooling Capacity Calculation Example 3: When there is no heat generation, and when cooling the object below a certain temperature and period of time. Heat quantity by cooled substance (per unit time) Q : Unknown [W] ([J/s]) Example of conventional units (Reference) Cooled substance : Water...
- Page 15 HRS400 Series Specific Product Precautions 1 Be sure to read this before handling the products. For safety instructions and temperature control equipment precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Design Operating Environment/Storage Environment Warning...
- Page 16 HRS400 Series Specific Product Precautions 2 Be sure to read this before handling the products. For safety instructions and temperature control equipment precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Transportation/Carriage/Movement Operation at Low Ambient Temperature or Low Circulating Fluid Temperature...
- Page 17 HRS400 Series Specific Product Precautions 3 Be sure to read this before handling the products. For safety instructions and temperature control equipment precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Mounting/Installation Piping Warning...
- Page 18 HRS400 Series Specific Product Precautions 4 Be sure to read this before handling the products. For safety instructions and temperature control equipment precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Electrical Wiring Electrical Wiring Warning...
-
Page 19: Operation
HRS400 Series Specific Product Precautions 5 Be sure to read this before handling the products. For safety instructions and temperature control equipment precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Operation Maintenance Caution... - Page 20 Safety Instructions Be sure to read the “Handling Precautions for SMC Products” (M-E03-3) and “Operation Manual” before use. Akihabara UDX 15F, 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021, JAPAN Phone: 03-5207-8249 Fax: 03-5298-5362 https://www.smcworld.com © 2022 SMC Corporation All Rights Reserved Specifications are subject to change without prior notice and any obligation on the part of the manufacturer.
