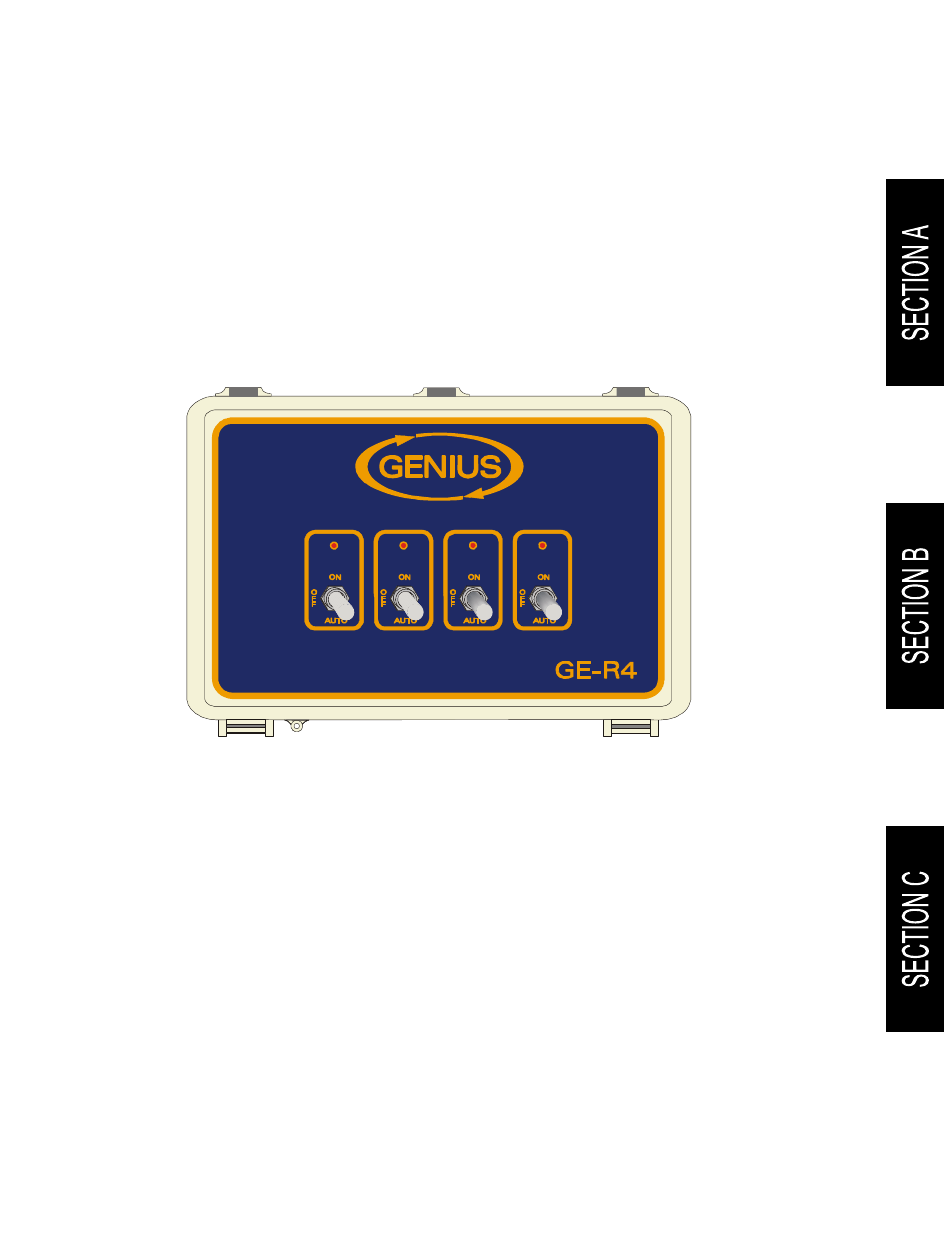

- Page 1 GE-R4 MANUAL WIRING DIAGRAM INSTALLATION INDEX / WARRANTY Installation / User’s Guide ATTENTION ELECTRICIAN SEE WIRING DETAILS ON PAGES A-3 ADDITIONAL INFORMATION IN SECTION B www.monitrol.com...
- Page 2 WARNINGS AND PRECAUTIONS Although the manufacturer has made every effort to ensure the accuracy of the information contained herein, this document is subject to change without notice due to ongoing product development. WARNINGS AND PRECAUTIONS Equipment, blown fuses and/or tripped breakers may prove harmful to the contents of the building.
-
Page 3: Wiring Diagram
GE-R4 WIRING DIAGRAM Wiring Diagram WIRING DIAGRAM GE-R4 1265 A GE-R4 NEUTRAL STAGE 1 STAGE 2 FOR COILS STAGE 3 STAGE 4 POWER POWER POWER POWER COIL COIL COIL COIL INPUT INPUT INPUT INPUT SIGNAL SIGNAL SIGNAL SIGNAL OUTPUT OUTPUT... -
Page 4: Electrician's Notes
GE-R4 WIRING DIAGRAM GE-R4 Electrician’s notes wiring tips and hints (see guide for details) HIGH VOLTAGE WIRE INSTALLED ACCORDING TO LOCAL WIRING CODE. THE CURRENT SHALL NOT EXCEED 25A, 3HP AT EACH OUTPUT (OUT). MAXIMUM 2 WIRES OF SAME SIZE PER BLACK TERMINAL, NO BIGGER THAN AWG #12, NO SMALLER THAN AWG #22. -
Page 5: Mounting Hardware Required

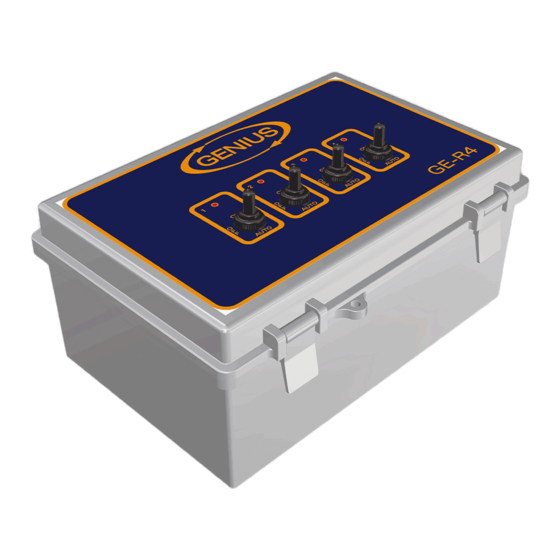

Description The GE-R4 is designed to drive four stages of up to 25A under the control of a master control system resulting in a clean air environment for your livestock. It provides you with automated control over its four stages via the use of the master control or alternatively by manual switch. -
Page 6: General Installation Guidelines
In order to avoid condensation problems inside the module, it is recommended to install the GE-R4 on an inside wall. If it is not possible, use spacers to have an air gap between the wall and the GE-R4. -
Page 7: Figure No. 1 Mounting Position And Devices
GE-R4 INSTALLATION Mounting The enclosure must be mounted in a location that will allow the cover to be completely opened right up against the wall. Fasten the four brackets to the four mounting holes on the back of the enclosure, using the four screws provided with the brackets. -
Page 8: Layout Board
GE-R4 INSTALLATION Layout Board FIGURE NO. 2 GE-R4 Electronic module Board COIL COIL COIL COIL L2/N L2/N L2/N L2/N OUTPUT OUTPUT OUTPUT OUTPUT SIGNAL SIGNAL SIGNAL SIGNAL POWER POWER POWER POWER INPUT INPUT INPUT INPUT STAGE 1 STAGE 2 NEUTRAL... -
Page 9: Powering Up Procedure
Powering Up Procedure Verify all Connections Once the GE-R4 is properly mounted on the wall and all modules to the terminal block, perform the following steps: - Ensure the flat cable between the bottom electronic board and the faceplate electronic board is properly connected. - Page 10 GE-R4 INSTALLATION Specifications Module GE-R4 DESCRIPTION VALUE Storage temperature -4°F to 131°F (-20°C to 55°C) Operating temperature 32°F to 122°F (0°C to 50°C) Humidity 90% maximum Non-condensing Weight 2 lbs. (0.9Kg) Size 11” x 17” x 5.5” (27.9 cm x 43.2 cm x 14 cm)
-
Page 11: Table Of Contents
Changing the fuse ......................9 Troubleshooting ......................9 Specifications........................ 10 TABLE OF FIGURES Section B FIGURE NO. 1 Mounting Position and Devices............... 7 FIGURE NO. 2 GE-R4 Electronic module Board............. 8 INDEX OF CONTENTS Section C Limited Warranty.......................12 GE-R4 Section C-11... -
Page 12: Limited Warranty
GE-R4 INDEX / WARRANTY Limited Warranty The manufactured equipment and supplied components have gone through rigorous inspection to assure optimal quality of product and reliability. Individual controls are factory tested under load, however the possibility of equipment failure and/or malfunction may still exist. - Page 13 MAG GE-R4 VER:1.0 April 17, 2007 www.monitrol.com...
