Genius GSM MOBILE STARTER User Manual

Table of Contents

Download this manual

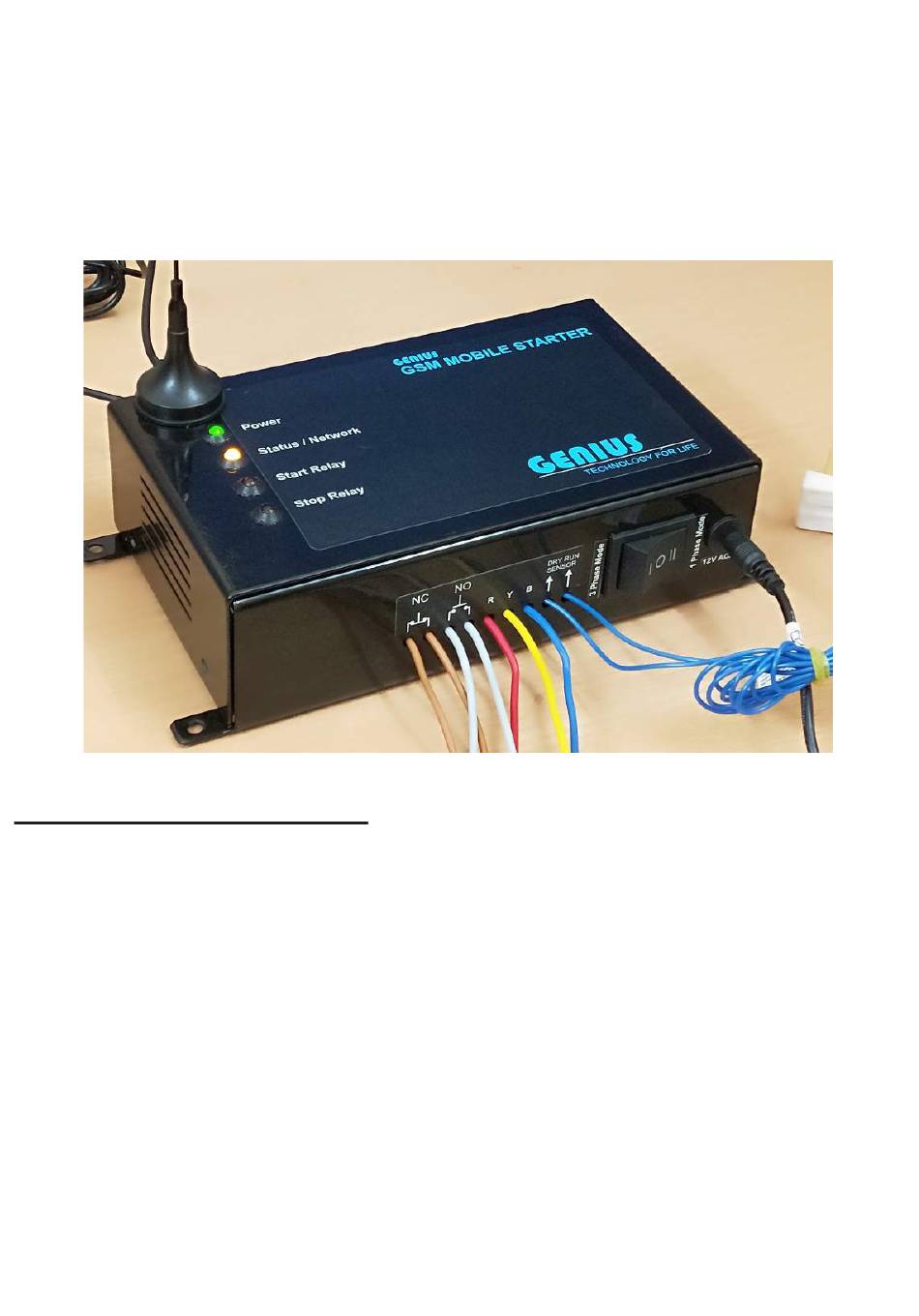

GENIUS

GSM MOBILE STARTER

USER MANUAL

Main Features

Suitable for three phase and single phase

Auto Switch Mode ( Start automatically after power reset)

Pump On and OFF through SMS and Missed call

Dry Run/ Low level Protection

Phase Failure/ Phase Not available Protection

Timer Function

Single Phase mode and three phase mode

External Antenna for better signal

Table of Contents

Do you have a question about the GSM MOBILE STARTER and is the answer not in the manual?

Page 1 GENIUS GSM MOBILE STARTER USER MANUAL Main Features Suitable for three phase and single phase Auto Switch Mode ( Start automatically after power reset) Pump On and OFF through SMS and Missed call Dry Run/ Low level Protection Phase Failure/ Phase Not available Protection...
Page 2 Wiring Diagram GENIUS GSM MOBILE STARTER DRY RUN / LOW LEVEL Start NO Stop NC Coil Contactor DRYRUN SENSOR Over Load Relay 3phase mode switch position 12V AC/DC Switch Position 3Phase input is Must 1 phase mode switch position Input 12V is Must...
Page 3 Quick start steps 1. Preparing Sim card - Ensure the Sim card is activated that you can send sms , Add sms pack , Insert the sim card in sim card slot 2. Connect the antenna 3 Connect Input power supply (Switch position to be check) - 3PHASE RYB for 3phase Mode (3phase mode) - Connect adapter 12v/ 2 amps for 1ph mode (1ph mode) 4.
Page 4 Mode 2 - 3 phase will not check ( 3 phase sense Disabled) @ Mains power ON message will be sent to Master No @ Reply messages from all slave No will also sent to Master No Manufactured by Genius Technologies-Bengaluru-560061 Customer care: geniustﬂ@gmail.com, 080-4101 0132...
