INTRODUCTION
Removing or replacing the manual disconnect components for Industrial
DC Slide Gate Operator systems requires proper adjustment of the
interlock switch plate to the gearbox disconnect lever. To prevent
premature wear of the gearbox disconnect disk, follow the adjustment
instructions below.
NOTE: Incorrect adjustment of the slotted interlock switch plate may
cause the operator to not run.
Gearbox
disconnect
disk
Slotted interlock
switch plate
Gearbox
disconnect
lever

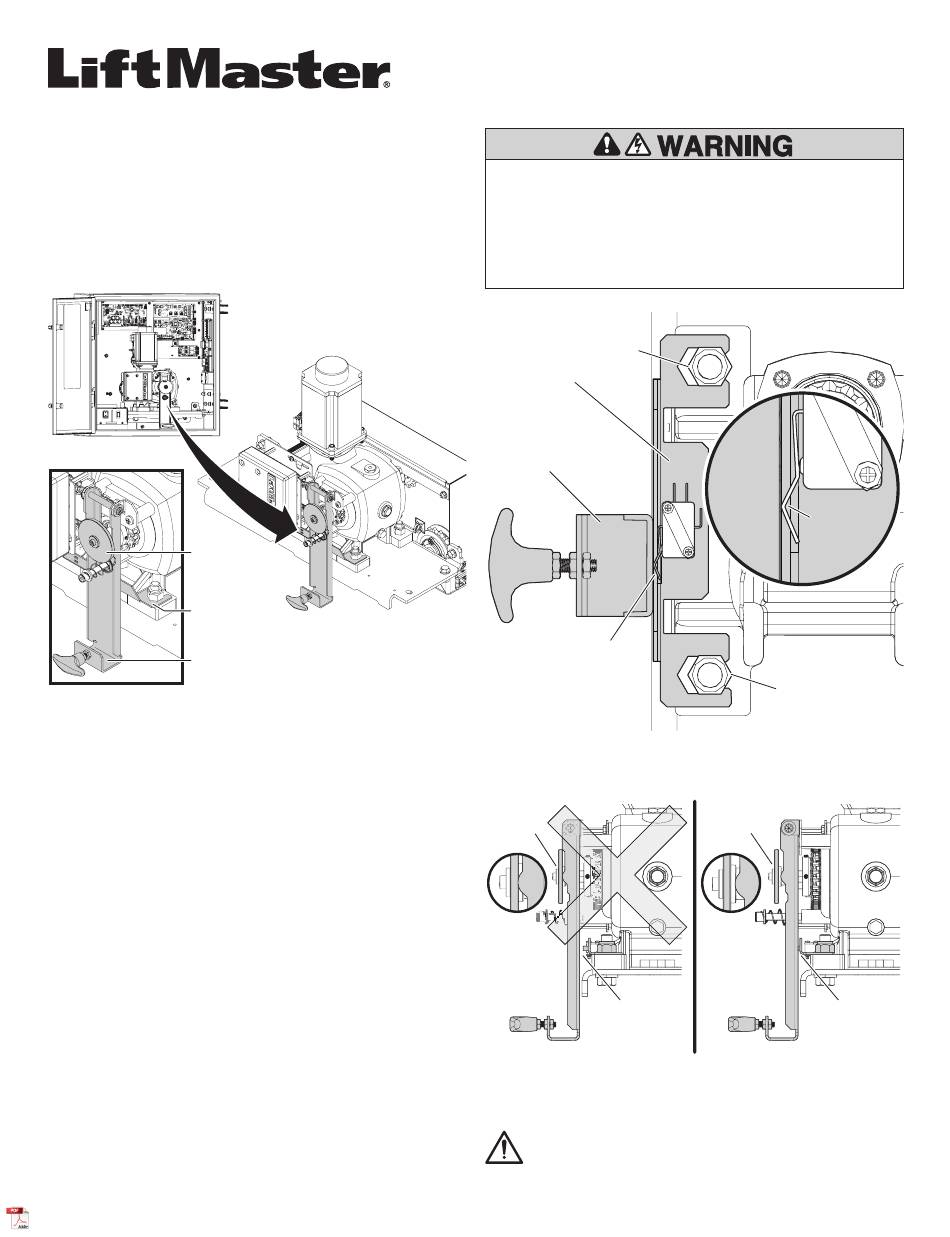

Figure 1: Gearbox Overview
Required Tools: 3/4" wrench/socket
ADJUSTMENT
1. Loosen the two mounting bolts that secure the slotted interlock switch
plate.
2. Slide the slotted interlock switch plate toward the gearbox disconnect
lever until the arm of the gearbox disconnect lever contacts the slotted
interlock switch plate.
NOTE: When the manual disconnect handle is in run mode/normal
operation, the gearbox disconnect lever should fully depress the interlock
switch.
3. Ensure that there is a small gap of clearance between the gearbox
disconnect disk and the arm of the gearbox disconnect lever. If there
is no gap when the interlock switch is depressed, adjust the position
of the slotted interlock switch plate away from the gearbox disconnect
lever.
4. While holding the slotted interlock switch plate in contact with the arm
of the gearbox disconnect lever, tighten the two mounting bolts.
MANUAL DISCONNECT ADJUSTMENT
MODELS: INSL24UL AND IHSL24UL
To reduce the risk of SEVERE INJURY or DEATH:
• Disconnect electric power to the operator before installing or
servicing.
• See operators Installation Manual for complete installation
instructions.
• Read and follow all safety instructions, required safety testing and
maintenance instructions.
TOP VIEW
Bolt
Slotted interlock
switch plate
Gearbox
disconnect
lever
Interlock
switch
Figure 2: Interlock Switch Components
SIDE VIEW
NO
Clearance
Interlock switch
(NOT depressed)
Figure 3: Gearbox Disconnect Disk Clearance
WARNING: This product can expose you to chemicals
including lead, which are known to the State of California to
cause cancer or birth defects or other reproductive harm. For
more information go to www.P65Warnings.ca.gov.
Gearbox
disconnect
Interlock
lever
switch
(Fully
depressed)
Bolt
Clearance
Interlock switch
(Fully depressed)
