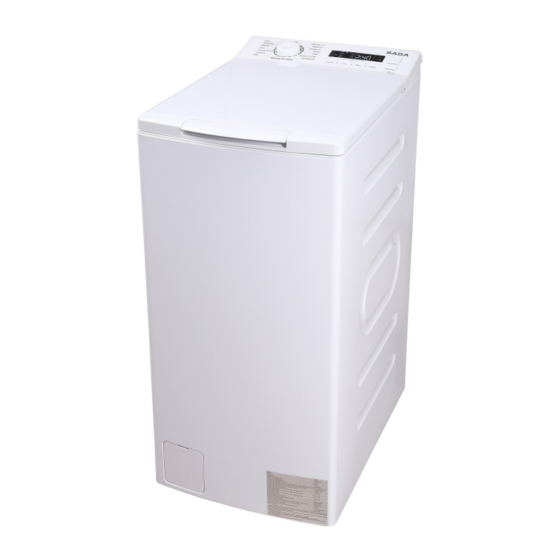

Saba TL712L21W Manual
  1. Manuals
  2. Brands
  3. Saba Manuals
  4. Washer
  5. TL712L21W
  6. Manual

Saba TL712L21W Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
TL712L21W

Advertisement

loading

Related Manuals for Saba TL712L21W

Summary of Contents for Saba TL712L21W

  • Page 1 TL712L21W...

  • Page 2: Table Of Contents

    Thank you for choosing SABA quality. This product has been developed by our team of professional and according to European regulations. In order to get the most out of your new appliance, we recommend that you read this instruction manual carefully and keep it for future reference.

  • Page 3: Safety Instructions

    Safety instructions • Safety Instructions For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Explanation of the symbols: Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or...
  • Page 4 – by clients in hotels, motels and other residential type environments; – bed and breakfast type environments. – Areas for communal use in blocks of flats or in launderettes. • This appliance is designed to wash a maximum of 7.0 kg of dry laundry Warning! The electric shock!
  • Page 5 Risk to children! • EN countries: the appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 6 Caution! Installing the product! • This washing machine is for indoor use only. • It isn’t intended to be built-in using. • The openings must not be obstructed by a carpet. • Washing machine shall not be installed in bathrooms or very wet rooms as well as in the rooms with explosive or caustic gases.
  • Page 7 3. Handle the machine carefully. Never hold each protruded part on the machine while lifting. Machine door cannot be used as the handle during the conveyance. 4. This appliance is heavy. Transport with care. • Please do not close the door with excessive forces. If it is found difficult to close the door, please check if the clothes are put in or distributed well.

  • Page 8: Packaging/Old Appliance

    Packaging/Old appliance This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

  • Page 9: Installation

    Installation • Product Description 1. Door 5. Power supply cord 2. Detergent dispenser 6. Control panel 3. Drum 7. Drain hose 4. Service filter Note! • The product line chart is for reference only, please refer to real product as standard.
  • Page 10 Accessories Transport hole plug Supply hose cold Drain hose support Owner’s manual water (optional) Installation area Warning! • Stability is important to prevent the product from wandering! • Make sure that the product should not stand W> 20mm on the power cord. Before installing the machine, the location characterized as follows shall be selected: 1.
  • Page 11 • There is a risk of suffocation! Keep all packaging well away from children. 1. Remove the cardboard box and styrofoam packing. 2. Lift the washing machine and remove the base packing. Make sure the small triangle foam is removed with the bottom one together.
  • Page 12 1. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions tighten the nuts. 2. Loosen the lock nut turn the feet until it closely contacts with the floor. 3. Adjust the legs and lock them with a spanner, make sure the machine is steady.
  • Page 13 Connect the inlet pipe as indicated, There are two ways to connect the inlet pipe. 1. Connection between ordinary tap and inlet hose. slide bushing damp nut Loosen clamp nut and Tighten clamp nut Press slide bushing, Connection finished four bolts insert inlet hose into connecting base 2.
  • Page 14 Drain Hose Warning! • Do not kink or protract the drain hose. • Position drain hose properly, otherwise damage might result of water leakage. There are two ways to place the end of drain hose: water trough 1. Put it into the water trough. 2.

  • Page 15: Operations

    Warning! • When installing drain hose, fix it properly with a rope. • If drain hose is too long, do not force it into washing machine as it will cause abnormal noises. Operations Quick Start Caution! • Before washing, please make sure it’s installed properly. 1.
  • Page 16 : Pre-Wash : Main Wash : Softener Add detergent Close drum door Close machine door Note! • Detergent need to be added in “case I “after selecting pre-washing for machines with this function. • Make sure that the drum flaps are properly locked. •...
  • Page 17 Note! • If default is selected, step 2 can be skipped. 3. After Washing “End” on display. Before Each Washing • The working condition of the washer should be(0-40)°C.If used under 0°C,the inlet valve and draining system may be damaged. If the machine is placed under condition of 0°C or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use.
  • Page 18 Check the label Take out the items out of the Knot the long strips.zip or pockets button Put small clothes into the Turn easy-pilling and long- Separate clothes with pillowslip pile fabric inside out different textures Warning! • When washing a single clothes, it may easily cause great eccentricity and give alarm due to great unbalance.
  • Page 19 Detergent Dispenser Pre-Wash detergent Main Wash detergent Softener Pull out the dispenser Caution! • Detergent only need to be added in “case I “after selecting pre- washing for machines with this function. • Do not exceed the “MAX” level mark when filling in detergent, additives or softener.
  • Page 20 • Please choose suitable type of detergent for the various washing temperature to get the best washing performance with less water and energy consumption. Control Panel Model: TL712L21W 1200trs TL712L21W Note! • The chart is for reference only, Please refer to real product as...
  • Page 21  On/off  Start/Pause Product is switched On/Off. Press the button to start or pause the washing cycle.  Option  Programmes This allows you to select an Available according to the additional function and will laundry type. light when selected. ...
  • Page 22 1200 A Display Wash Time Delay Time Error B Door Lock C Delay D Pre Wash E Extra Rinse Option Pre Wash The Prewash function can get an extra wash before main wash,it is suitable for washing the dust rises to surface of the clothes;You need to put detergent into the Case (I) when select it.
  • Page 23 Extra Rinse The laundry will undergo extra rinse once after you select it. Delay Set the Delay function: 1. Select a programme; 2. Press the Delay button to choose the time (the delaying time is 0-24 H/3H-6H-9H); 3. Press [Start/Pause] to commence the delay operation Choose the Programme Setting time...
  • Page 24 Model: TL712L21W Programme Option Programme Delay Extra rinse Pre wash Cotton Quick 15' Rapid 45' ECO 40-60 Intensive 20°C Rinse & Spin Spin Only Drum Clean Baby Care Sportswear Jeans Wool Synthetic Means optional (Some models have intelligent weighing function, please refer to the actual product)
  • Page 25 Other Functions Temp. Press the button to regulate the temperature (Cold,20°C, 40°C,60°C,90°C) Spin Press the button to change the speed. 1200: 0-600-800-1000-1200 Model: TL712L21W Programme Default Speed (rmp) 1200 Cotton 1200 Quick 15' Rapid 45' ECO 40-60 1200 Intensive 1000 Rinse &...
  • Page 26 Programme Default Speed (rmp) Wool Synthetic 1200 Child Lock To avoid mis operation by children. Spin Delay Choose the Start Press [Spin] and [Delay] Programme 3 sec. till buzzer beep. Caution! • During the “Child Lock” function is activing, the buzzer will beep 3 times, when the buttons are pressed.
  • Page 27 Child Lock To avoid mis operation by children. Spin Choose the Press the [Spin]button for 3sec., the buzzer Programme is mute. Caution! • After Muting the buzzer function, the sounds will not be activated any more. My Cycle To memory the frequently used programme. After choosing the programme and setting the options, press [Temp.] 3 sec.
  • Page 28 Programmes Programmes are available according to the laundry type. Programmes Cotton Hard-wearing textiles, heat-resistant textiles made of cotton or linen. Synthetic Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
  • Page 29 Wool H and or machine-washable wool or richwool textiles. Especially gentle wash programme to prevent shrinkage, longer programme pauses (textiles rest in wash liquor). Spin Only Extra spin with selectable spin speed. Rinse & Spin Extra rinse with spin. Drum Clean Specially set in this machine to clean the drum and tube.
  • Page 30 Washing Programmes Table TL712L21W Programme Load(kg) Temp.(°C) Default Time Cotton 2:40 Synthetic 2:20 1:37 Jeans 1:45 Sportswear 1:31 20°C 1:01 Baby Care 1:42 Drum Clean 1:18 Spin Only 0:12 Rinse & Spin 0:20 Wool 1:07 Intensive 3:48 ECO 40_60 3:25...

  • Page 31: Maintenances

    Note! • The parameters in this table are only for user’s reference. The actual parameters maybe different with the parameters in above mentioned table. Maintenances Cleaning And Care Warning! • Before your maintenance starts, please unplug the machine and close the tap. Cleaning The Cabinet Proper maintenance on the washing machine can extend its working life.
  • Page 32 Note! • Formic acid and its diluted solvents or equivalent are forbidden, such as alcohol, solvents or chemical products, etc. Cleaning The Drum The rusts left inside the drum by the metal articles shall be removed immediately with chlorine-free detergents. Never use steel wool.
  • Page 33 Washing the filter in washing machine: 1. Screw off the inlet pipe from the backside of the machine. 2. Pull out the filter with long nose pliers and reinstall it back after being washed. 3. Use the brush to clean the filter. 4.
  • Page 34 Note! • Do not use alcohol, solvents or chemical products to clean the machine. Cleaning The Drain Pump Filter Warning! • Be careful of the hot water! • Allow detergent solution to cool down. • Unplug the machine to avoid electrical shock before washing. •...
  • Page 35 Caution! • Make sure that valve cap and emergency drain hose are reinstalled properly, cap plates should be inserted aligning to hole plates otherwise water may leak. • When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty.
  • Page 36 Description Reason Solution Detergent Detergent is Clean and wipe the residues in the dampened or detergent box agglomerated Indicator or Disconnect the Check if the power display does not power PC board is shut down and light or harness has the power plug is connection problem connected correctly...
  • Page 37 LED display models: Description Reason Solution Water overflow Restart the washer Others Please try again first, call up service line if there are still troubles Note! • After the check, activate the appliance. If the problem occurs or the display shows other alarm codes again, contact the service.
  • Page 38 (W*D*Hmm) Power TL712L21W 7.0kg 400*610*875 56kg 2100W Product fiche Supplier's name or trade mark: SABA Supplier's address ( ): 80 Boulevard du Mandinet LOGNES 77432 Marne la Vallée Cedex 2 FRANCE Model identifier: TL712L21W General product parameters: Parameter Value Parameter...
  • Page 39 Rated washing Rated Maximum temperature capacity capacity Remaining moisture inside the treated textile Half content 0 (%) Half (*) (°C) Quarter Quarter Rated capacity 1200 Spin-drying efficiency Half 1200 Spin speed f) (rpm) class ( Quarter 1200 Rated washing 3:28 capacity Programme duration (a) Type...
  • Page 40 • Programme setting for testing in accordance with applicable standard En60456. • When using the test programmes, wash the specified load using the maximum spin speed. • The actual parameters will depend on how the appliance is used, and maybe different with the parameters in above mentioned table.

  • Page 41: Disposal Of Old Electrical Appliances

    Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. SABA is a trademark of Technicolor or its a liates used under license by Conforama. SABA is a German brand born in 1923 in the heart of the Black Forest.
