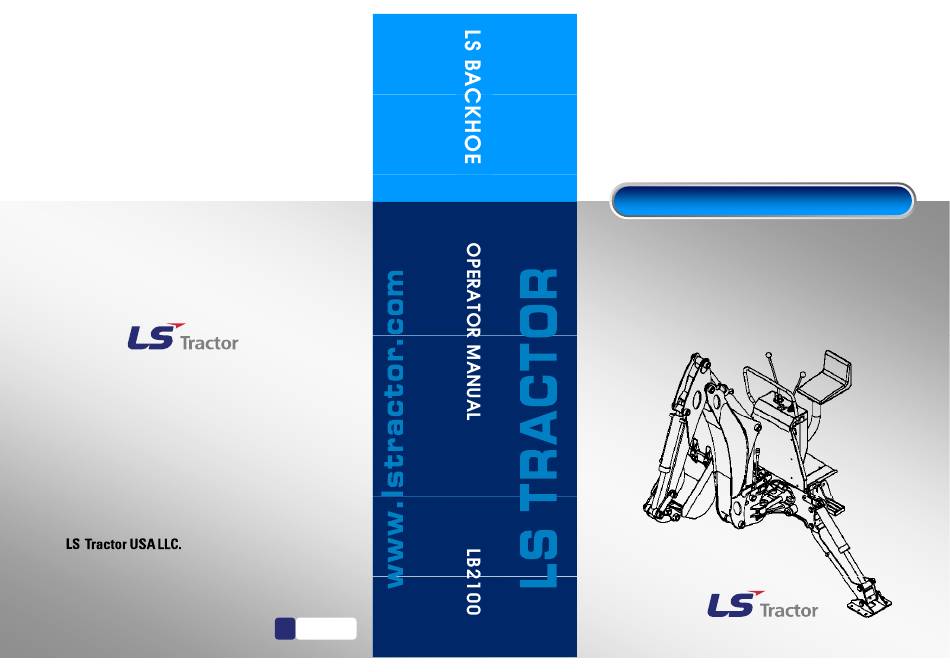

PO Box 70, Battleboro, NC 27809
Tel
Tel : 252-984-0700
252 984 0700
Fax : 252-984-0701
www.lstractor.com
www.lstractorusa.com
BT014-ME000
P/NO
REVISION : 24
LS LOADER
LS BACKHOE
OPERATOR MANUAL
LB2100
TRACTOR Model
• I3030/I3030H/I3040/I3040H
• R4010/R4010H/R4020/R4020H
• R4010/R4010H/R4020/R4020H
• XR3032/XR3032H/XR3037/XR3037H
• XR4040/XR4040H/XR4046/XR4046H
• XR3135/XR3135H/XR3140/XR3140H
• XR4140/XR4140H/XR4145/XR4145H
• XR4150/XR4150H/XR4155/XR4155H
• MT342/MT347/MT352/MT357
• MT345E/MT350E/MT355E
MT345E/MT350E/MT355E
INNOVATIVE
TECHNOLOGY
PARTNER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LB2100 and is the answer not in the manual?

Questions and answers

Related Manuals for LS tractor LB2100

Summary of Contents for LS tractor LB2100

  • Page 1 INNOVATIVE TECHNOLOGY PARTNER LS LOADER LS BACKHOE OPERATOR MANUAL LB2100 TRACTOR Model • I3030/I3030H/I3040/I3040H • R4010/R4010H/R4020/R4020H • R4010/R4010H/R4020/R4020H • XR3032/XR3032H/XR3037/XR3037H • XR4040/XR4040H/XR4046/XR4046H • XR3135/XR3135H/XR3140/XR3140H • XR4140/XR4140H/XR4145/XR4145H • XR4150/XR4150H/XR4155/XR4155H • MT342/MT347/MT352/MT357 • MT345E/MT350E/MT355E MT345E/MT350E/MT355E PO Box 70, Battleboro, NC 27809 Tel : 252-984-0700...
  • Page 2 LS BACKHOE OPERATOR MANUAL Model : LB2100 Applied Tractor Backhoe Option I3030/I3030H/I3040/I3040H R4010/R4010H/R4020/R4020H XR3032/XR3032H/XR3037/XR3037H XR4040/XR4040H/XR4046/XR4046H XR3135/XR3135H/XR3140/XR3140H ㆍTHUMB : 40394273 XR4140/XR4140H/XR4145/XR4145H XR4150/XR4150H/XR4155/XR4155H MT342/MT347/MT352/MT357 MT345E/MT350E/MT355E...
  • Page 3 WARRANTY CONDITIONS Warranty Coverage : LS Mtron Tractor Division, herein referred to as LS Mtron, undertakes to replace or repair any part of a loader where damage has been proven to be caused by defects in material or workmanship. This Warranty is valid for a period of 1 year from the date of the original retail sale. Parts replaced or repaired under the terms of this Warranty are guaranteed only until the original warranty expires.
  • Page 4 PLEASE NOTE : Make sure all potential operators of the this equipment review this manual and all safety messages contained within. This safety symbol indicates important safety messages in this manual. When you see this symbol, carefully read the message that follows and be alert to the possibility of personal injury or death. - 3 -...

  • Page 5: Table Of Contents

    Table of Contents ▣ Safety Precautions --------------- ▣ Safety Decals --------------- ▣ Backhoe Specifications --------------- ▣ Introduction --------------- ▣ Tractor Preparation --------------- ▣ Backhoe Operation --------------- ▣ Backhoe Removal --------------- ▣ Backhoe Installation --------------- ▣ How to Connet Hydraulic Line --------------- ▣...
  • Page 6 Table of Contents - XR4140/XR4145/XR4150/XR4155 MT342/MT347/MT352/MT357 --------------- - MT345E/MT350E/MT355E --------------- IMBH62. Hydraulic Control Fitting(WALVOIL) --------------- IMBH70. Bucket Cylinder --------------- IMBH71. Dipperstick Cylinder --------------- IMBH72. Boom Cylinder --------------- IMBH73. Swing Cylinder --------------- IMBH74. Stabilizer Cylinder-LH --------------- IMBH74. Stabilizer Cylinder-RH --------------- IMG980. Decals --------------- - 5 -...

  • Page 7: Safety Precautions

    SAFETY PRECAUTIONS Understand that your safety and the safety of other persons is measured by how you service and operate this backhoe. Know the position and operations of all controls before you begin operation. Make sure you check all controls in all safe area before starting. The safety information given in this manual does not replace any safety codes, insurance needs, federal, state and local laws.
  • Page 8 SAFETY PRECAUTIONS Make sure all parked backhoe on stands are on a Travel speed should be such that complete control hard level surface with all safety devices engaged to and machine stability is maintained at all times. prevent backhoe from falling and being damaged or Where possible, avoid operation near ditches, injuring someone.
  • Page 9 SAFETY PRECAUTIONS ROAD DRIVING Check your local codes or regulations that may apply Pull up the boom completely and position in center. tractor/loader/backhoe other equipment operation on public streets or highways, before transporting or traveling the machine. Install SMV Close the dipperstick completely and curl the bucket emblem as required.

  • Page 10: Safety Decals

    SAFETY DECALS Safety Decal Loacations Note : Warning decals are visible when getting on backhoe. Refer to the left and right hands used in this manual, It's the position of the operator when seated in the operating position of Backhoe Care of Safety Decals.
  • Page 11 SAFETY DECALS 40451025 40358868 40358870 40358871 40358872 40358873 - 10 -...
  • Page 12 SAFETY DECALS 40358875 40358874 40358878 40450477 40358812 40358876 40455586 - 11 -...

  • Page 13: Backhoe Specifications

    BACKHOE SPECIFICATIONS Specifications and design are subject to change without prior Backhoe Model : LB2100 Tractor Model : I3030/3030H/I3040/3040H, R4010/R4010H/R4020/R4020H XR3032/XR3032H/XR3037/XR3037H/XR4040/XR4040H/XR4046/XR4046H XR3135/XR3135H/XR3140/XR3140H, XR4140/XR4140H/XR4145/XR4145H XR4150/XR4150H/XR4155/XR4155H, MT342/MT347/MT352/MT357, MT345E/MT350E/MT355E A. Digging Depth (two foot flat bottom) 2,280 mm 89.7 " B. Reach from center line of Swing Pivot 3,180 mm 125.1 "...
  • Page 14 BACKHOE SPECIFICATIONS Rated Lift Capacities Rated Lift Capacities 1713.9 3770.7 1694.8 3728.5 1676.0 3687.2 1666.6 3666.5 1677.5 3690.5 1688.1 3713.9 1702.2 3744.9 1718.5 3780.7 1727.4 3800.2 394.4 867.7 571.2 1256.6 593.8 1306.3 400.3 880.7 FEET METERS 0 - 13 -...

  • Page 15: Introduction

    INTRODUCTION Important: The purpose of this manual is to assist you in Illustrations used in this manual may not show all maintaining and operating your backhoe. Read it safety equipment that is recommended to ensure safe carefully, it furnishes information and instructions that operation of tractor and backhoe.

  • Page 16: Tractor Preparation

    TRACTOR PREPARATION WARNING : Tire Inflation Do not exceed the manufacturer's rating for Front tires must be maintained at the maximum maximum gross vehicle weight. Refer to Operator's recommended inflation to maintain normal tire profile Manual or ROPS serial plate provided with tractor. with the added weight of backhoe/material.

  • Page 17: Backhoe Operation

    BACKHOE OPERATION WARNING : Keep the unit clean and perform regular service. Observe safety messages whenever cleaning, servicing, The tractor/backhoe should only be operated or lubricating. with all safety equipment properly installed. Keep assistants or bystanders a safe distance from the equipment operating area.
  • Page 18 BACKHOE OPERATION CAUTION : Also, lock the swing and boom while tractor is moving and storing for an extended period of time. Before leaving the machine, stop the engine, remove the key, place all controls in neutral, and either set the parking brake or place tractor in park as Cold Weather Operation equipped.
  • Page 19 BACKHOE OPERATION Left and Right Stabilizer Controls Boom and Swing Controls Push the left/right hand inner control lever, left/right stabilizer goes down. Push the left hand outer control lever, boom moves down, and pull back the lever, boom moves up. Also, pushing the lever fully forward into the detent position, allows the boom to float.
  • Page 20 BACKHOE OPERATION Bucket and Crowd Controls Note : These two levers ( Boom and swing control lever, Bucket and crowd control lever ) provide four simultaneous operations. Both experience practice are needed to eliminate excess motion and increase operating efficiency. Important: Do not use the machine to pull out tree stumps with the boom dipper completely extended and the bucket...
  • Page 21 BACKHOE OPERATION Street Pads(Option) Digging Vertical Walls If there are teeth in the bucket, remove them before digging vertical walls. Install street pads under the stabilizer pads when operating on street to prevent damage to work area. Piles of Spoil CAUTION: Do not put piles of spoil close to the edge of Extend the boom slowly while lowering the bucket to...
  • Page 22 BACKHOE OPERATION Swing Lock and Boom Lock Transporting Boom Lock CAUTION : Before transporting the machine, position boom straight back and engage the boom lock lever in boom. Swing backhoe to position in the middle of swing and drop the pin through holes in swing frame. When not in use, pull back boom lock lever and store pin in hole provided on swing frame.
  • Page 23 BACKHOE OPERATION Trailer/Truck Transporting Observe the following safety warnings when working with your new backhoe/tractor. Make sure always fasten the machine with chains and chain binders to the trailer. CAUTION : When using a backhoe, be aware of bucket Determine and note the maximum height of the and boom location at all times.

  • Page 24: Backhoe Removal

    BACKHOE REMOVAL WARNING : CAUTION : Before removing the backhoe, make sure the Before starting the engine of your tractor, swing lock pin locked in position. make sure all operating controls are in park lock or neutral position. CAUTION : WARNING : Move the backhoe to flat, firm and wide place to remove the equipment.
  • Page 25 BACKHOE REMOVAL STEP 4. STEP 6. Using the control levers, position the dipperstick Using both the stabilizer and boom controls, set the vertically, curl the bucket until its  bottom is level with backhoe subframe horizontally to relieve the weight of the ground, and lower the boom until bottom of the the backhoe from the mounting brackets of the bucket rests on the ground.
  • Page 26 BACKHOE REMOVAL Backhoe Storage STEP 9. Store the backhoe in a dry and clean place with a Turn off the tractor engine. Relieve hydraulic pressure roof. by actuating all the control levers in each direction, then disconnect the backhoe hose couplers from the When storing the backhoe outdoors without a roof, tractor hydraulic couplers.

  • Page 27: Backhoe Installation

    BACKHOE INSTALLATION WARNING : CAUTION : Before installing backhoe, never use any Before starting the engine of your tractor, control levers as handholds. make sure all operating controls are in park lock or neutral position. CAUTION : WARNING : Backhoe should be mounted on the proper subframe assembly.
  • Page 28 BACKHOE INSTALLATION STEP 6. Release the parking brake of the tractor, drive the tractor backward slowly until the backhoe be pushed slightly to the backward and set the parking brake of the tractor. STEP 8. Make sure that the sub-frame installed correctly as shown in below figure.
  • Page 29 BACKHOE INSTALLATION - MT345E/MT350E/MT355E ① SMV Sign STEP 1. Remove SMV sign(①) from rear of the tractor. This SMV sign should re-install to the ② SMV bracket ③ Hardware STEP 2. Remove Hardware(③) and SMV bracket(②) before install the backhoe. ※...
  • Page 30 BACKHOE INSTALLATION ④ Seat ⑤ Seat plate ⑥ Hardware STEP 3. Assembl the Seat(④) and Seat plate(⑤) with packed hardware(⑥) as shown in drawing. ※ If the seat(②) not assembled at "A" and "B" holes it will interference with tractor. - 29 -...

  • Page 31: How To Connet Hydraulic Line

    HOW TO CONNET HYDRAULIC LINE - MT345E/MT350E/MT355E PART 1. Install Plate ① Bolt(tractor) ② Plate ③ Nipple ④ Quick coupler ⑤ Dust plug ⑥ Teflon tape STEP 1. Remove the bolts(①) from the tractor. STEP 2. RWind up the teflon tape(⑥) on the nipple(③) and tighten the quick coupler(④) to the nipple(③). STEP 3.
  • Page 32 HOW TO CONNET HYDRAULIC LINE ① Union Bolt ② Pipe ③ Nut ④ Joystick cable STEP 2. Remove the union bolts(①) and pipe(②) from the tractor. Notice - Detail "A" It is easy to install and disassemble the backhoe hydraulic parts if remove the joystick cable(④) and nut(③) first.
  • Page 33 HOW TO CONNET HYDRAULIC LINE STEP 6. Install the quick coupler(⑨) and dust cap(⑩) to the nipple(⑧). STEP 7. Tighten the quick coupler(⑨). PART 3. Backhoe Hydraulic T-Line ① Plug ② Bolt ③ Union bolt(PF3/8) ④ Bonded seal(3/8") ⑤ T-line pipe ⑥...
  • Page 34 HOW TO CONNET HYDRAULIC LINE PART 4. Backhoe Hydraulic STEP 1. Connect the Backhoe hydraulic hoses P and T as shown in drawing. ※ Hydraulic Line - Loader only : Connect B to C. - Loader and Backhoe : Disconnect B from C and make free hose B. Connect backhoe P to C and connect backhoe T to D.

  • Page 35: Lubrication And Maintenance

    LUBRICATION AND MAINTERNANCE WARNING : CAUTION : Escaping fluid under pressure can have Do not operate the backhoe if the fittings are sufficient force to penetrate the skin, causing serious leaking or if the hoses are damaged. A sudden line injury.
  • Page 36 LUBRICATION AND MAINTERNANCE Lubricate at all grease nipple of pivot pins as refer The Backhoe operation based on tractor to "Lubrication Quick Figure". hydraulic system. Check the hydraulic level of tractor daily before operating machine. Check all hydraulic lines, hoses and connections. If Replenish the oil as described in the tractor there is leak or damage, replace or service as operator's manual.
  • Page 37 LUBRICATION AND MAINTERNANCE Weekly or Every 50 Hours Checks CAUTION To avoid personal injury : Never operate backhoe and front loader with a loose sub frame. Anytime hardware are loosened, retighten to specified torque. Check all hardware frequently and keep them tight. Check sub frame hardware regularly especially when new.
  • Page 38 LUBRICATION AND MAINTERNANCE Lubrication Quick Figure Lubricate at all grease nipples daily or every 10 hours of operation. Bucket, Dipperstick Boom Dipperstick Cylinder Grease Swing Cylinder Grease Stabilizer Cylinder Bucket Grease Swing Cylinder Grease Backhoe Mainframe Grease Lubrication and Maintenance Quick Chart As specified in Tractor Hydraulic System Oil Level Replace...

  • Page 39: Bucket Service

    BUCKET SERVICE Bucket Teeth Changing CAUTION : Make sure to use brass drift and hammer The bucket teeth are secured with bolts and nuts on when removing hinge pins. Failure to do so could the bucket edge. The teeth will eventually need to be result in injury from flying metal fragments.

  • Page 40: Trouble Shooting

    TROUBLE SHOOTING This Trouble Shooting Chart is provided for reference to possible backhoe operational problems. Determine the problem that best describes the operational problem being experienced and eliminate the possible causes as listed by following the correction procedures. PROBLEM POSSIBLE CAUSE CORRECTION Low hydraulic fluid level.
  • Page 41 TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE CORRECTION Low hydraulic fluid level. Check and replenish hydraulic fluid. Allow hydraulic system to warm up to operating Cold hydraulic fluid. temperature. Engine R.P.M. too Increase engine speed to obtain satisfactory slow(hydraulic pump R.P.M. backhoe operation. too slow).
  • Page 42 TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE CORRECTION Hydraulic Oil viscosity too Check oil number and viscosity, Refill correct heavy or Incorrect oil hydraulic oil. Excessive load in bucket. Weight exceeds specified Reduce load. backhoe capacity. System relief valve squeals. Relief valve setting below Check and reset valve setting as needed.
  • Page 43 TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE CORRECTION Allow hydraulic fluid to warm up to operating Cold hydraulic fluid temperature. Engine R.P.M. too slow. Increase engine R.P.M. Refer to Tractor Operator's Manual for service Low hydraulic fluid supply. recommendations. Hydraulic pump capacity inadequate.

  • Page 44: Hydraulic System Schematic

    HYDRAULIC SYSTEM SCHEMATIC - 43 -...

  • Page 45: Torque Tightening Chart

    TORQUE TIGHTENING CHART MINIMUM HARDWARE TIGHTENING TORQUES IN FOOT POUNDS (NEWTON-METERS) FOR NORMAL ASSEMBLY APPLICATIONS Always tighten hardware to these values unless a different torque value or tightening procedure is listed for a specific application. Fasteners must always be replaced with the same grade as specified in the manual parts list.

  • Page 46: Parts Iilustrations

    PART ILLUSTRATIONS GENERAL INFORMATION Illustrations The individual parts in their normal relationship to each other. Reference numbers are used in the illustrations. These numbers correspond to those in the "Number" column and are followed by the quantity required and description. Directional Reference "Right hand"...

  • Page 47: Imbh10. Subframe

    IMBH10. SUBFRAME - I3030/I3030H/I3040/I3040H - 46 -...
  • Page 48 IMBH10. SUBFRAME PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40231126 SUBFRAME ASS'Y 40320334 SUBFRAME ASS'Y 2014.12.15~ 40231127 CROSS BAR W.A. 40320335 CROSS BAR W.A. 2014.12.15~ 40231128 RAIL W.A. 40256024 RAIL W.A. 2011.02.22~ 40286940 RAIL W.A 2014.12.15~ 40231129 BRACKET_MID W.A. 40256022 BRACKET_MID W.A.

  • Page 49: Xr3032/Xr3032H/Xr3037/Xr3037H

    IMBH10. SUBFRAME - XR3032/XR3032H/XR3037/XR3037H - 48 -...
  • Page 50 IMBH10. SUBFRAME PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40286942 SUBFRAME ASS'Y 40342989 SUBFRAME ASS'Y 2016.03.15~ 40286937 CROSS BAR W.A. 40286940 RAIL W.A 40256022 BRACKET_MID W.A. 40286935 BRACE 40342997 BRACE 2016.03.15~ 40230905 40228656 RING-PIN,∅10 40228623 HEX.BOLT-HT,M14-2.0P 60L 40230601 HEX.BOLT-HT,M14-2.0P 40L 40264168 HEX.BOLT-HT,M14-2.0P 50L 2019.08.08~...

  • Page 51: R4010/R4010H/R4020/R4020H

    IMBH10. SUBFRAME - R4010/R4010H/R4020/R4020H - 50 -...
  • Page 52 IMBH10. SUBFRAME PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40231130 SUBFRAME ASS'Y 40231131 CROSS BAR W.A. 40231132 RAIL W.A. 40231133 BRACKET_MID W.A. 40231116 BRACE 40230905 40230904 RING PIN 40228623 HEX.BOLT-HT,M14-2.0P 60L 40230894 HEX.BOLT-HT,M20-2.5P 70L 40230895 HEX.BOLT-HT,M22-2.5P 70L 40230601 HEX.BOLT-HT,M14-2.0P 40L 2011.03.21~ 40228643 WASHER-SPRING,M14...

  • Page 53: Xr3135/Xr3135H/Xr3140/Xr3140H

    IMBH10. SUBFRAME - XR3135/XR3135H/XR3140/XR3140H - 52 -...
  • Page 54 IMBH10. SUBFRAME PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40324623 SUBFRAME ASS'Y 40342994 SUBFRAME ASS'Y 2016.03.15~ 40324624 CROSS BAR W.A. 40286940 RAIL W.A 40256022 BRACKET_MID W.A. 40286935 BRACE 40342997 BRACE 2016.03.15~ 40230905 40228656 RING-PIN,∅10 40228623 HEX.BOLT-HT,M14-2.0P 60L 40230601 HEX.BOLT-HT,M14-2.0P 40L 40264168 HEX.BOLT-HT,M14-2.0P 50L 2016.03.15~...
  • Page 55 IMBH10. SUBFRAME - XR3135/XR3135H/XR3140/XR3140H - 54 -...
  • Page 56 IMBH10. SUBFRAME PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40381344 CROSS BAR W.A. 40389993 RAIL W.A 40256022 BRACKET_MID W.A. 40342997 BRACE 40230905 40228656 RING-PIN,∅10 40230601 HEX.BOLT-HT,M14-2.0P 40L 40264168 HEX.BOLT-HT,M14-2.0P 50L 2019.08.08~ 40230893 HEX.BOLT-HT,M14-2.0P 55L 40343000 HEX.BOLT-HT,M20-2.5P 80L 40343504 HEX.BOLT-HT,M20-2.5P 90L 40343501 HEX.BOLT-HT,M22-2.5P 80L 40228643...

  • Page 57: Xr4040/Xr4040H/Xr4046/Xr4046H

    IMBH10. SUBFRAME - XR4040/XR4040H/XR4046/XR4046H - 56 -...
  • Page 58 IMBH10. SUBFRAME PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40286943 SUBFRAME ASS'Y 40342990 SUBFRAME ASS'Y 2016.03.15~ 40286938 CROSS BAR W.A. 40286941 RAIL W.A. 40231133 BRACKET_MID W.A. 40231116 BRACE 40342998 BRACE 2016.03.15~ 40230905 40230904 RING PIN 40228623 HEX.BOLT-HT,M14-2.0P 60L 40230894 HEX.BOLT-HT,M20-2.5P 70L 40343000 HEX.BOLT-HT,M20-2.5P 80L...

  • Page 59: Xr4140/Xr4145/Xr4150/Xr4155 Mt342/Mt347/Mt352/Mt357

    IMBH10. SUBFRAME - XR4140/XR4145/XR4150/XR4155 - MT342/MT347/MT352/MT357 - 58 -...
  • Page 60 IMBH10. SUBFRAME PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40324626 CROSS BAR W.A. 40286941 RAIL W.A. 40231133 BRACKET_MID W.A. 40231116 BRACE 40342998 BRACE 2016.03.15~ 40230905 40230904 RING PIN 40228623 HEX.BOLT-HT,M14-2.0P 60L 40230894 HEX.BOLT-HT,M20-2.5P 70L 40343000 HEX.BOLT-HT,M20-2.5P 80L 2016.03.15~ 40230895 HEX.BOLT-HT,M22-2.5P 70L 40343501 HEX.BOLT-HT,M22-2.5P 80L...

  • Page 61: Mt345E/Mt350E/Mt355E

    IMBH10. SUBFRAME - MT345E/MT350E/MT355E - 60 -...
  • Page 62 IMBH10. SUBFRAME PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40391462 CROSS BAR W.A. 40391463 RAIL W.A. 40394389 RAIL W.A. 2018.08.18~ 40386631 BRACKET_MID W.A. 40342998 BRACE 40230905 40228656 RING PIN 40230601 HEX.BOLT-HT,M14-2.0P 40L 40343000 HEX.BOLT-HT,M20-2.5P 80L 40343504 HEX.BOLT-HT,M20-2.5P 90L 40343501 HEX.BOLT-HT,M22-2.5P 80L 40228643 WASHER-SPRING,M14...

  • Page 63: Imbh20. Main Frame

    IMBH20. MAIN FRAME - 62 -...
  • Page 64 IMBH20. MAIN FRAME PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40231069 MAIN FRAME ASS'Y 40372133 MAIN FRAME ASS'Y 2017.07.13~ 40231065 CROSS BAR 40231088 STABILIZER ASS'Y-RH 40231086 STABILIZER ASS'Y-LH 40231087 FOOT PLATE 40231064 BRACKET-CUSHION 40230876 CUSHION 40261802 BUSHING 40231089 PIN,∅25-171L 40231090 PIN,∅25-139L 40231091...

  • Page 65: Imbh21. Seat, Control(Walvoil)

    IMBH21. SEAT, CONTROL(WALVOIL) - 64 -...
  • Page 66 IMBH21. SEAT, CONTROL(WALVOIL) PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40294001 VALVE ROOM W.A. 40343508 VALVE ROOM W.A. 2016.03.15~ 40294002 COVER, FRONT 40294003 TOP COVER 40231062 FOOT PLATE - CENTER 40231061 FOOT PLATE - RH 40231060 FOOT PLATE - LH 40294004 GUIDE BAR 40231053...

  • Page 67: Imbh30. Swing Frame

    IMBH30. SWING FRAME - 66 -...
  • Page 68 IMBH30. SWING FRAME PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40231080 SWING FRAME ASS'Y 40231106 SWING CYL.PIN,∅25-118L 40231098 PIN,∅40-117L 40261809 LOCK 40343506 LOCK 2016.03.15~ 40231101 PIN, ∅22-190L 40231100 HANDLE SET 40343507 HANDLE SET 2016.03.15~ 40231031 PLASTIC BALL 40231102 LOCK 40230946 SNAP RING, C22 40231055...

  • Page 69: Imbh40. Boom

    IMBH40. BOOM - 68 -...
  • Page 70 IMBH40. BOOM PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40231057 BOOM ASS'Y 40231095 PIN,∅30-176.5L 40231096 PIN,∅40-185.5L 40231093 PIN,∅40-185.5L 40256377 HEX.BOLT,M8-1.25P 60L 40294063 HEX.BOLT,M8-1.25P 70L 40230896 NUT-SELFLOCK,M8-1.25P 40228707 NIPPLE,GREASE,1/8" 40230979 BUSHING,404440 - 69 -...

  • Page 71: Imbh50. Bucket, Dipperstick

    IMBH50. BUCKET, DIPPERSTICK - 70 -...
  • Page 72 IMBH50. BUCKET, DIPPERSTICK PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40231071 BUCKET ASS'Y(9) 40394246 BUCKET W.A(9) 2018.09.05~ 40231072 BUCKET ASS'Y(12) 40394247 BUCKET W.A(12) 2018.09.05~ 40231073 BUCKET ASS'Y(16) 40394248 BUCKET W.A(16) 2018.09.05~ 40231074 BUCKET ASS'Y(18) 40394249 BUCKET W.A(18) 2018.09.05~ 40231075 BUCKET ASS'Y(24) 40394250 BUCKET W.A(24)
  • Page 73 IMBH50. BUCKET, DIPPERSTICK - 72 -...
  • Page 74 IMBH50. BUCKET, DIPPERSTICK LS PART.NO DESCRIPTION SERIAL OR DATE TOOTH (BOLT TYPE), 9” TOOTH (BOLT TYPE), 12” TOOTH (BOLT TYPE), 16” 40394258 TOOTH (BOLT TYPE), 18” TOOTH (BOLT TYPE), 24” TOOTH (BOLT TYPE), 36” 40394259 FLAT HEADED BOLT-HT(WRENCH), M12-1.75P 50L Q’ty Per Tooth 40228642 WASHER-SPRING, M12...

  • Page 75: Imbh60. Control Valve-Walvoil Sd6/6

    IMBH60. CONTROL VALVE(SD6/6) - 74 -...
  • Page 76 IMBH60. CONTROL VALVE(SD6/6) PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40308224 PLUG SV/VMP5 40308222 PLUG P3T/SD6 40308217 VALVE KIT U(G3)/SD6 40308213 VALVE KIT U(G3)/SD6 40308212 VALVE KIT P(G3)/SD5-SD6 40307884 COVER-INLET FE/SD6-SAE10 40307880 SPOOL 5BY(13QN)/SD6 40307879 SPOOL 1/SD6 40307896 PLUG TCEI SAE 10 40324627 GASKET 40324628...

  • Page 77: Imbh61. Hydraulic Line

    IMBH61. HYDRAULIC LINE - I3030/I3030H/I3040/I3040H - R4010/R4010H/R4020/R4020H BACKHOE IN BACKHOE OUT - 76 -...
  • Page 78 IMBH61. HYDRAULIC LINE PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40230959 NIPPLE,PT3/8×3/4-16NUF,SWIVEL 90° 40228721 QUICK COUPLER,PT3/8" FEMALE 40230676 DUST-CAP,3/8" WHITE MALE 40228729 DUST-CAP,3/8" WHITE FEMALE 40228720 QUICK COUPLER,PT3/8" MALE 40230961 NIPPLE,PF1/2,O-RING×PT3/8 40228757 O-RING,1BP18 40230975 HOSE ASS'Y,4(3/4-16UNF)-1(PT1/2) 1700L(3/8) 40230968 QUICK COUPLER,PT1/2 FEMALE 40230970 DUST-PLUG,1/2"...

  • Page 79: Xr4140/Xr4145/Xr4150/Xr4155 Mt342/Mt347/Mt352/Mt357

    IMBH61. HYDRAULIC LINE - XR4140/XR4145/XR4150/XR4155 - MT342/MT347/MT352/MT357 - 78 -...
  • Page 80 IMBH61. HYDRAULIC LINE PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40286936 WASHER-COPPER,M20 40286939 NIPPLE,M20-1.5P,COPPER×PT1/2 40230968 QUICK COUPLER,PT1/2 FEMALE 40230969 DUST-PLUG,1/2" BLACK MALE - 79 -...

  • Page 81: Mt345E/Mt350E/Mt355E

    IMBH61. HYDRAULIC LINE - MT345E/MT350E.MT355E (~S/N 181129640) - 80 -...
  • Page 82 IMBH61. HYDRAULIC LINE PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40228731 NIPPLE, PF3/8 40228654 BONDED SEAL, 3/8 40375341 T-LINE PIPE 40230968 QUCIK COUPLER, PT1/2 FEMALE 40230969 DUST PLUG, 1/2 MALE BLACK 40228758 TEFLON TAPE - 81 -...
  • Page 83 IMBH61. HYDRAULIC LINE - MT345E/MT350E/MT355E (~S/N 200415068) - 82 -...
  • Page 84 IMBH61. HYDRAULIC LINE PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40400878 DIVERTER VALVE, DF3 VIE1/2 CC-OPEN 40228653 BONDED SEAL, 1/2" 40326740 NIPPLE, PF1/2,COPPER x 3/4-16UNF,HOSE 40228710 NIPPLE, 3/4-16UNF,HOSE x 3/4-16UNF,HOSE,SWIVEL 90° 40400882 NIPPLE, PT1/2 x 3/4-16UNF,HOSE, SWIVEL 90° 40230968 QUICK COUPLER, PT1/2 FEMALE 40401016 DUST PLUG, 1/2 MALE RED...
  • Page 85 IMBH61. HYDRAULIC LINE - MT345E/MT350E/MT355E - 84 -...
  • Page 86 IMBH61. HYDRAULIC LINE PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40434301 BRACKET 40434302 NIPPLE, PT1/2 x 3/4-16UNF,HOSE 40230968 QUICK COUPLER, PT1/2 FEMALE 40401016 DUST PLUG, 1/2 MALE RED 40434303 HOSE, 4(3/4-16UNF) x BENZO(PF1/2) 1800L(3/8) 40400884 BENZO BOLT, PF1/2 40228653 BONDED SEAL, 1/2"...

  • Page 87: Imbh62. Hydraulic Control Fitting(Walvoil)

    IMBH62. HYDRAULIC CONTROL FITTING b-b , B-B c-c , d-d f-f , F-F e-e , E-E f'-f' , F'-F' a-a , A-A - 86 -...
  • Page 88 IMBH62. HYDRAULIC CONTROL FITTING PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40294009 VALVE,WALVOIL SD6/6 40230928 BUCKET CYLINDER ASSEMBLY 40230934 DIPPERSTICK CYLINDER ASSEMBLY 40230937 BOOM CYLINDER ASSEMBLY 40230918 SWING CYLINDER ASSEMBLY 40230910 STABILIZER CYLINDER ASSEMBLY-LH 40230913 STABILIZER CYLINDER ASSEMBLY-RH 40230948 ADAPTER LONG,1/2-20UNF×3/4-16UNF,O-RING 40230949 ORIFICE LONG,1/2-20UNF×3/4-16UNF,O-RING...
  • Page 89 IMBH62. HYDRAULIC CONTROL FITTING b-b , B-B c-c , d-d f-f , F-F e-e , E-E f'-f' , F'-F' a-a , A-A - 88 -...
  • Page 90 IMBH62. HYDRAULIC CONTROL FITTING LS PART.NO DESCRIPTION SERIAL OR DATE 40228698 CABLE TIE,540mm BLACK 40231115 FIX, PIPE 40230889 BOLT-SEM'S,M8-1.25P 25L 40343523 PVC glass Metal Seal 2016.03.15~ - 89 -...

  • Page 91: Imbh70. Bucket Cylinder

    IMBH70. BUCKET CYLINDER - 90 -...
  • Page 92 IMBH70. BUCKET CYLINDER PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40230928 BUCKET CYLINDER ASSEMBLY 40230929 ROD ASS'Y 40228867 CAP OUTER,∅60x∅70x37L 40228827 COVER INNER,∅60x35x55L 40228766 DUST,SDR,35x43x5/6.5 40228884 PACKING U, SKY,35x45x6 40228880 PACKING U, ISI,35x45x6 40228872 O-RING,1BG55 40228768 BUSHING DU,3520 40228876 PISTON,∅60x∅27x46L 40228870 O-RING,1BG27...

  • Page 93: Imbh71. Dipperstick Cylinder

    IMBH71. DIPPERSTICK CYLINDER - 92 -...
  • Page 94 IMBH71. DIPPERSTICK CYLINDER PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40230934 DIPPERSTICK CYLINDER ASSEMBLY 40230935 ROD ASS'Y 40228867 CAP OUTER,∅60x∅70x37L 40228827 COVER INNER,∅60x∅35x55L 40228766 DUST,SDR,35x43x5/6.5 40228884 PACKING U, SKY,35x45x6 40228880 PACKING U, ISI,35x45x6 40228872 O-RING,1BG55 40228768 BUSHING DU,3520 40228876 PISTON,∅60x∅27x46L 40228870 O-RING,1BG27...

  • Page 95: Imbh72. Boom Cylinder

    IMBH72. BOOM CYLINDER - 94 -...
  • Page 96 IMBH72. BOOM CYLINDER PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40230937 BOOM CYLINDER ASSEMBLY 40230938 ROD ASS'Y 40230859 CAP, OUTER,∅70x∅80x37L 40230766 COVER, INNER,∅70x∅40x55L 40230710 DUST, SDR,40x48x5/6.5 40230872 PACKING, U, SKY,40x50x6 40230869 PACKING, U, ISI,G55 40230861 O-RING, 1BG65 40230711 BUSHING, DU,4040 40230865 PISTION,∅70x∅27x46L 40228870...

  • Page 97: Imbh73. Swing Cylinder

    IMBH73. SWING CYLINDER - 96 -...
  • Page 98 IMBH73. SWING CYLINDER PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40230918 SWING CYLINDER ASSEMBLY 40230919 ROD ASS'Y 40231033 HEAD,∅60x∅35x55L 40228766 DUST,SDR,35x43x5/6.5 40228884 PACKING U, SKY,35x45x6 40228880 PACKING U, ISI,35x45x6 40231137 BACKUP RING,G55 40231135 O-RING, G60 40228872 O-RING,1BG55 40228768 BUSHING DU,3520 40228876 PISTON,∅60x∅27x46L 40228870...

  • Page 99: Imbh74. Stabilizer Cylinder-Lh

    IMBH74. STABILIZER CYLINDER-LH - 98 -...
  • Page 100 IMBH74. STABILIZER CYLINDER-LH PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40230910 STABILIZER CYLINDER ASSEMBLY-LH 40230911 ROD ASS'Y 40228867 CAP OUTER,∅60x∅70x37L 40228827 COVER INNER,∅60x∅35x55L 40228766 DUST,SDR,35x43x5/6.5 40228884 PACKING U, SKY,35x45x6 40228880 PACKING U, ISI,35x45x6 40228872 O-RING,1BG55 40228768 BUSHING DU,3520 40228876 PISTON,∅60x∅27x46L 40228870 O-RING,1BG27...

  • Page 101: Imbh74. Stabilizer Cylinder-Rh

    IMBH74. STABILIZER CYLINDER-RH - 100 -...
  • Page 102 IMBH74. STABILIZER CYLINDER-RH PART NO. DESCRIPTION Q'TY I.C. SERIAL OR DATE 40230913 STABILIZER CYLINDER ASSEMBLY-RH 40230914 ROD ASS'Y 40228867 CAP OUTER,∅60x∅70x37L 40228827 COVER INNER,∅60x∅35x55L 40228766 DUST,SDR,35x43x5/6.5 40228884 PACKING U, SKY,35x45x6 40228880 PACKING U, ISI,35x45x6 40228872 O-RING,1BG55 40228768 BUSHING DU,3520 40228876 PISTON,∅60x∅27x46L 40228870 O-RING,1BG27...

  • Page 103: Img980. Decals

    IMG980. DECAL CAUTION : Read and refer to the Tractor Operation Manual or Decals on the Tractor. and Backhoe Decals on as shown. ① ③ ④ ② ⑩ ⑯ ⑰ ⑧ ⑦ ⑨ ⑫ ⑤ ⑪ ⑬ ⑥ ⑦ ⑮ ⑭...
  • Page 104 40358878 DECAL-LS NAME 2018.02.01~ 40358868 DECAL-WARNING 40230653 NAME PLATE 40450477 NAME PLATE-LSTA-IMG980 not decided 40358867 DECAL-DANGER 40358874 DECAL-SWING LOCK 40255430 DECAL-DANGER 40231052 DECAL-CAUTION 40451025 DECAL-GREASE CAUTION-IMG980 not decided 40358876 DECAL-INSPECTION 40358812 DECAL-LS NAME 2021.10.01~ 40455586 DECAL-MD(LB2100)-BHG980 2021.10.01~ - 103 -...
