Summary of Contents for Elektral Tru-Vend Midi-Buffet

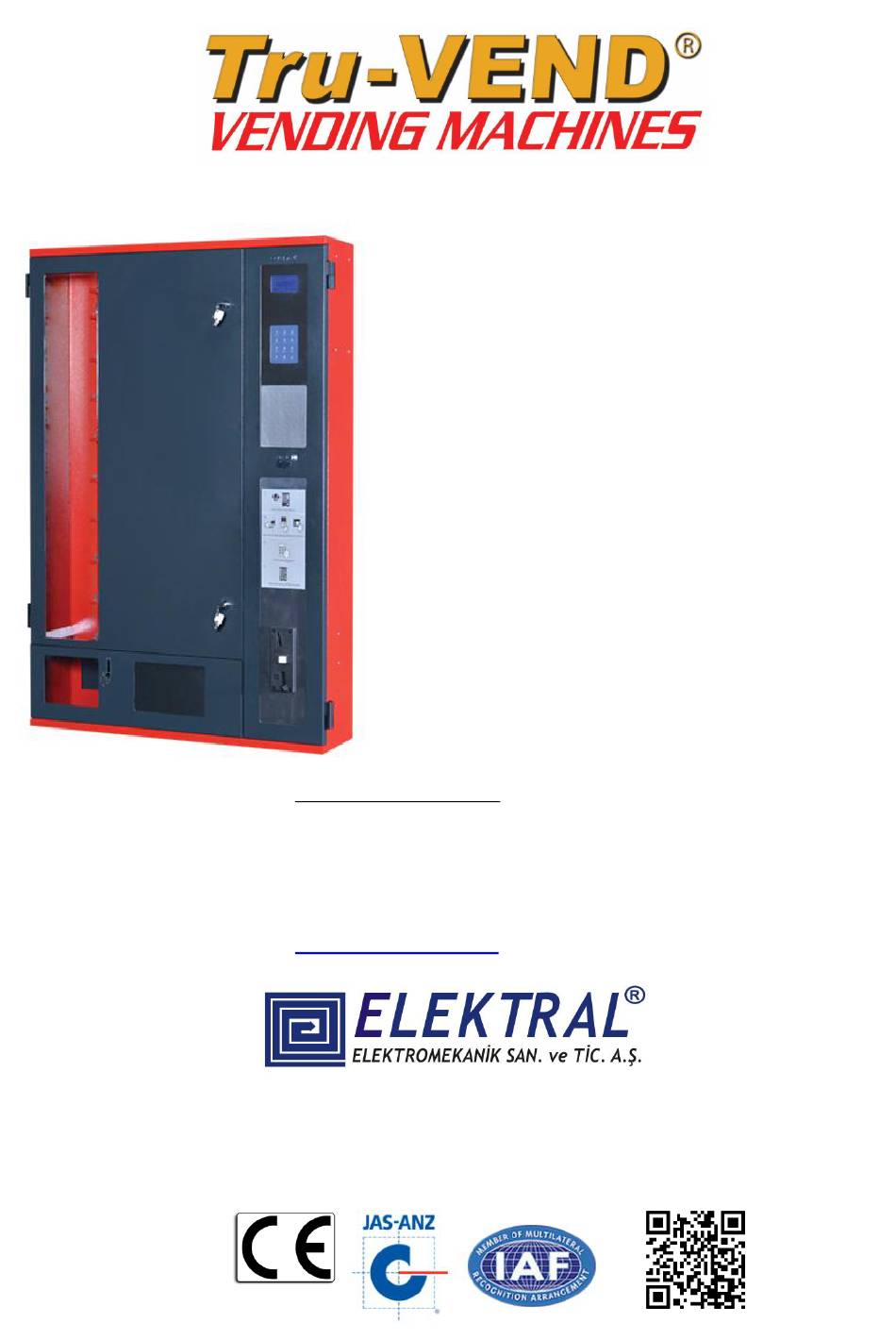

- Page 1 Midi-Buffet® USER’S MANUAL Version: 15.12 “SHE SELLS, YOU EARN” Headquarters & FACTORIES: Izmir Ataturk Industrial Zone M.K.Ataturk Blv.23 Cigli 35620 Izmir -TURKEY Phones : +90(0) 232-376 7300 : +90(0) 232-376 7030 e-mail : elektral@elektral.com.tr www.elektral.com.tr...
-
Page 2: Table Of Contents
CONTENTS PAGE INTRODUCTION CONTENTS/ BEFORE USE 1. GENERAL DESCRIPTION 2. MAIN UNITS 2.1 Product Trays 2.2 Control Panel 2.2.1 Touch-Pad 2.2.2 LCD 2.2.3 Payment System 2.2.3.1 Coin Selector 2.2.3.2 Change Giver 2.2.3.3 Bill Validator 2.2.3.4 Cashless (Prepaid) Payment Systems 2.3 Coin Return Push Button 2.4 Coin Entry Slot 2.5 Coin Return Chute 2.6 Cash Box... - Page 3 4.2.2 Statistics Main Menu 4.2.2.1 Total Products Sold 4.2.2.2 Money Amount 4.2.2.3 Errors 4.2. 2. 4 Resetting 4.2.2.5 Reports 4.2.3 Price Settings Main Menu 4.2.3.1 Setting Prices 4.2.3.2 Discount 4.2.4 Self Test 4.2.4.1 Motor Control 4.2.4.2 IR Control 4.2.4.3 Motor Connections (Hardware) 4.2.4.4 Payment System 4.2.4.5 Keypad 4.2.4.6.
-
Page 4: Introduction
Assembly and IMMIB (Istanbul Mining and Metal Exporters Union). Another award won by Elektral is “The year 2013 First Rank in Innovation” organised by IAOSB (Izmir Ataturk Industrial Zone)-Ege University. Believing that real growth target is to be achieved with a global industrial understanding and a global move, Elektral is motivating all its employees with this understanding and continues rapidly with an intensive R&D work to reach determined... -
Page 5: Contents/ Before Use
CONTENTS Midi-Buffet Usage & Safety Warnings before using the ® Midi-Buffet Technical specifications of the ® Midi-Buffet Installation of the ® Midi-Buffet Programming and further procedures ® The arrow-end lightning symbol inside the The exclamation mark inside the equilateral triangle equilateral triangle informs that in the context of informs the user that there are important instructions of the product, there is enough amount of... - Page 6 Midi -Buffet® BEFORE USE AND SAFETY WARNINGS Midi -Buffet® TruVEND Vending Machines are secured by three electronic PIN CODEs and two mechanic locks which only allows the owner to operate the machine. Please do not share your PIN CODE. If you forget or lose the code, get in contact with our factory staff.
-
Page 7: General Description
1. GENERAL DESCRIPTION The Vending Machine that you have chosen has been produced by our factory using high technology systems and modern aesthetic design. Tru-VEND Vending Machines can be used in all public areas such as; hotels, factories, hospitals, restaurants, clinics, cinemas, bus terminals, petrol stations, doctor &... -
Page 8: Main Units
2. MAIN PARTS A- Main Board (VMC) : Electronic Board / Vending Machine Controller B- Graphical LCD : 128x64 pixels white pixels on Blue Backlight C- Touchpad Keypad : 3x4 Capacitive Touchpad Keypad D- Bill Validator (Optional) E- Coin Entry Slot (Optional) F- Change Giver (Optional) G- Coin Return Chute (Optional) H- Vibration Sensor... -
Page 9: Product Trays
X- Mechanical Lock : There are Two Mechanical Locks and they are same Y- Infrared (Transmitter) & Adjustable Light Intensity LED Illumination Module 2.1 Product Trays Filling up the Vending Machine and Placing the Products to the Trays The vending machine has 12 Trays (standard). In the machines with an optional cooling unit, products requiring cooling can be placed in the bottom tray. -
Page 10: Lcd
2.2.3 Payment System (Optional) Coin Selector accepts pre-defined coins and proceeds with the payment process. It recognizes the domestic currency which has been programmed. The mechanism will not accept the currency which has not been defined and the payment will be returned from the Coin Return Chute. -
Page 11: Coin Entry Slot
2.4 Coin Entry Slot This entry slot is used for inserting coins into the Vending Machine. Coins are being placed into the slot then simply being pushed upwards. Inserted coin value can be seen on the screen. If the inserted coin is not defined or is an imitation then the coin drops down to the Coin Return Chute and is not accepted. -
Page 12: Programming
4 PROGRAMMING Midi-Buffet All programming settings of the can be done using the Touchpad Keypad on the Control Panel. Keypad buttons are as follows; www.elektral.com.tr X EXIT/NO √ SAVE/YES/SELECT READY TO OPERATE 8. Up Arrow to Scroll Up Please Insert Coin 0 Down Arrow to Scroll Down 7 To copy the selected value in some menus i.e. -
Page 13: Menu
STATISTICS Statistics: All statistical information available can be SALE COUNTER seen inside this menu. CASH COUNTER ERRORS RESET GET REPORT PRICES Price Settings: This menu is for setting Prices, Currency PRICE SETTINGS Settings and Discount Rates. EXCHANGE OF RATE DISCOUNT Machine Test: This menu is for testing the hardware MACHINE TEST equipped on the Vending Machine... -
Page 14: Serial Protocol
VALIDATORS This menu is used to change the standard settings of the payment system. SERIAL PROTOCOL MDB SETTINGS EXECUTIVE SETTINGS CCTALK SETTINGS İmpMDB SETTINGS PARALLEL SETTINGS 4.2.1.1.1 Serial Protocol SERIAL PROTOCOL This menu is used for selecting the Payment System in EXECUTIVE use. -
Page 15: Executive Settings
Free Change: This parameter is used to activate or deactivate the Change Function without purchasing any product from the Vending Machine. Full bracket ( X) means this feature is active. Automatic Change: This feature enables automatic Change without the need to press Coin Return Push Button. -
Page 16: Cooling Unit
WARNING: If the IR Sensor is deactivated, the vending machine will not be able to check product delivery conditions and the presence or lack of products in the machine trays. If the IR product sensor determines that a product is not delivered, the related selection (Spiral) is deactivated and customer credit remains active on Graphic LCD for another vend. -
Page 17: Illumination Power
Alarm Password: This password has to be entered prior to opening the door of the Midi- Buffet. When opened without entering password, the Midi-Buffet will give a 120db audio alarm. The alarm is being activated automatically after 10 seconds the front door has been closed. -
Page 18: Errors
4.2.2.3 Errors Pre-defined Error Codes are as mentioned hereunder; ERRORS ERROR (01): 052-11 06.09.10 12:10 (3) ERROR (02): 068-02 ERROR (03): 000-00 ERROR (04): 000-00 ERROR (05): 000-00 Change Giver Error Codes Other Error Codes Extreme Current on Motor No Credit1 Motor Error 1 Defective Tube Sensor1 Motor Error 2... -
Page 19: Price Settings Main Menu
PRICES PROD. (01): 0,50 EUR 4.2.3 Prices Main Menu PROD. (02): 1,50 EUR PROD. (02): 0,25 EUR PROD. (03): 0,00 EUR PROD. (04): 0,50 EUR PROD. (05): 0,50 EUR 4.2.3.1 Price Settings This menu is to set prices. Move onto the Product Number you wish to set prices and press (√) SELECT to enter new price. -
Page 20: Accessories Main Menu
4.2.5 Accessories Main Menu 4.2.5.1 Alarm This menu is used for activating or deactivating the Alarm against Unauthorized Access (Without Password Entry) to Door Opening. (Please check Chapter 3. VENDING SAFETY) 4.2.5.3 GSM/GPRS (optional) This menu is for GSM/GPRS module settings. 4.2.5.4 Impact Sensor This menu is used for activating or deactivating the Impact Sensor against Vandalism as an increased safety precaution. -
Page 21: Operation Of Midi Buffet
Before proceeding with Product Loading and Price Settings it is suggested that the main functions should be controlled from the Machine Test Menu (Chapter 4.2.4). Only operate the Vending Machine on Norm Earthed Mains Supply. Vending Machines with Cooling Unit; There must be min. -
Page 22: Additional Trays
The Cooling Unit has a complete modular design enabling ease of assembly and maintenance. The Modular Cooling Unit can be equipped to a Standard Midi-Buffet at a later time as an optional unit. 9.2 Additional Tray The Midi Buffet has 10 Standard Trays with the possibility to add 1 Optional Tray. Special design and adjustments can be done as per the buyer’s requests to vend different packing size/shape products requiring different storage conditions other than the standard configuration. -
Page 23: Operational Questions
10.2.2 Operational Questions: Does long time non-operational storage require settings and maintenance? Proper Storage Conditions does not require any additional settings and/or maintenance before use. One of the motors is not operating, what can I do? First of all control the PINs inside the Motor Socket. Then check the 24 PIN Sockets and Cables in Connectors connecting to the Electronic Board. -
Page 24: Warranty Conditions
All Warranty Services are at our Factory. All transportation risks and costs to and pro our Factory belongs to Customer. Thank you for selecting a product manufactured by ELEKTRAL A.S. Before using your new item please take a minute to read and fill out the forms on the reverse side of this card. -
Page 25: Enclosures
12 ENCLOSURES 12.1 Menu Tree Menus Settings Statistics Prices Machine Test Accessories Device yarlar Info Price Validators Sale Counter Motor Control Alarm Settings Exchange of IR Sensor Cash Counter IR Control Bill Rate Cooling Unit Errors Discount Motor Status GSM / GPRS Payment Date-Time Reset...
