Midi Buffet STD®
"She sells, You earn!..
Headquarters & FACTORIES:
®
Elektral
Elektromekanik San. ve Tic. A.S.
Izmir Ataturk Industrial Zone
M.K. Ataturk Blv.23 Cigli
35620 İzmir-TR
Phone
: +90 232 376 7300
Fax
: +90 232 376 7030
E-mail
: elektral@elektral.com.tr
www.elektral.com.tr
USER & MAINTENANCE
MANUAL
"
®
Version: 18.04
Advertisement
Table of Contents
Related Manuals for Elektral Tru-VEND Midi Buffet STD
Summary of Contents for Elektral Tru-VEND Midi Buffet STD

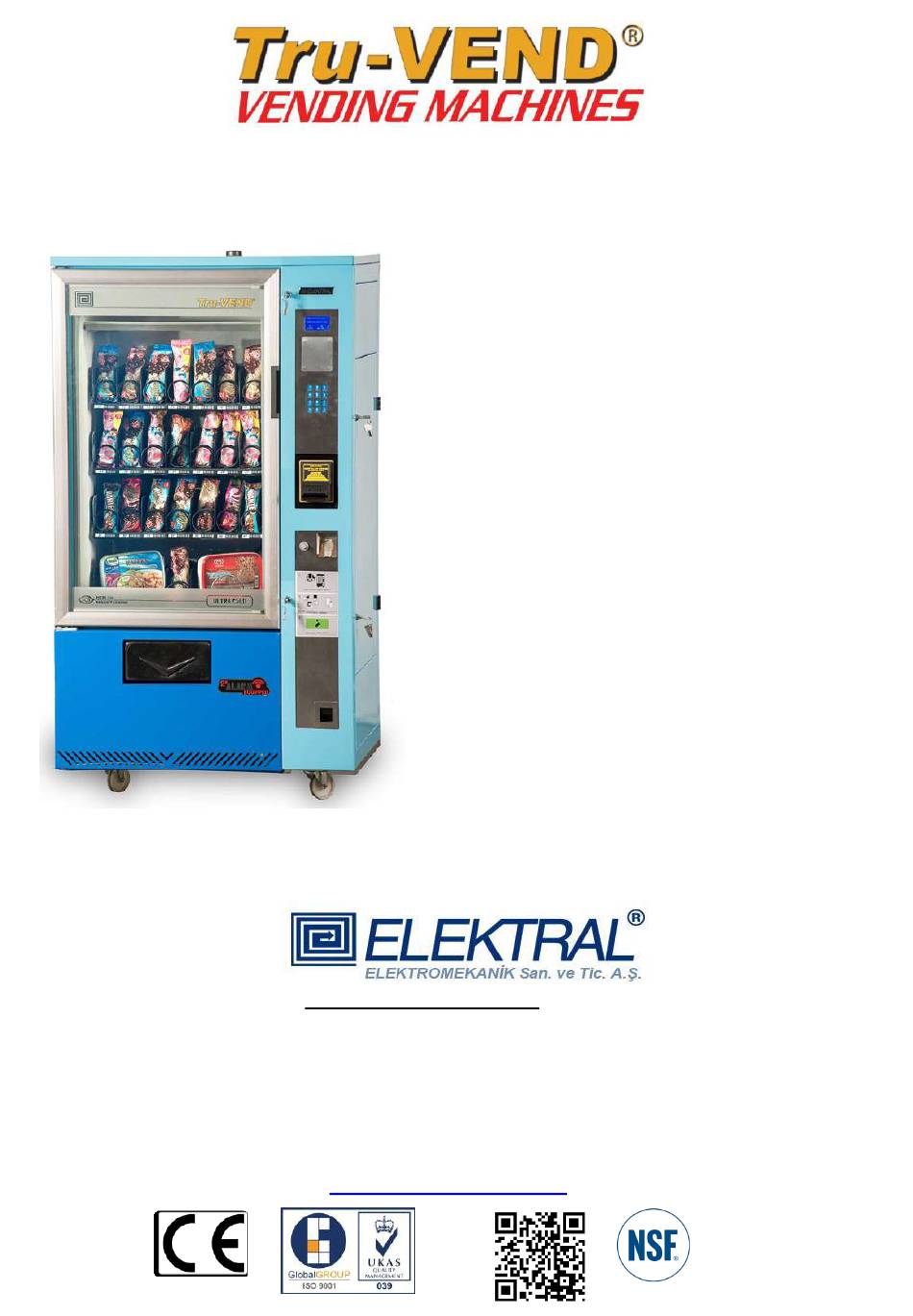

- Page 1 “She sells, You earn!.. ” ® Headquarters & FACTORIES: ® Elektral Elektromekanik San. ve Tic. A.S. Izmir Ataturk Industrial Zone M.K. Ataturk Blv.23 Cigli 35620 İzmir-TR Phone : +90 232 376 7300 : +90 232 376 7030 E-mail : elektral@elektral.com.tr www.elektral.com.tr...
-
Page 2: Table Of Contents
CONTENTS PAGE INTRODUCTION OPERATION and SAFETY WARNINGS 1. GENERAL DESCRIPTION 2. MAIN UNITS 2.1 Product Trays 2.2 Control Panel 2.2.1 Capacitive Touch Keypad 2.2.2 Graphical LCD Screen 2.2.3 Payment Systems (Optional) 2.2.3.1 Coin Selector 2.2.3.2 Change Giver 2.2.3.3 Bill Validator 2.2.3.4 Prepaid Card System (Cashless Payment Device) 2.3 Coin Return Push Button 2.4. - Page 3 4.2.1.5 Language Setting 4.2.1.6 Change Password 4.2.1.7 Illumination Settings 4.2.1.7.1 Illumınation Power 4.2.1.7.2 LED Settings 4.2.1.8. Authorization 4.2.1.9 Factory Settings 4.2.2 Statistics Main Menu 4.2.2.1 Sale Counter 4.2.2.2 Cash Counter 4.2.2.3 Errors 4.2.2.4 Reset 4.2.2.5 Get Report (Optional 4.2.3 Prices Main Menu 4.2.3.1 Price Settings 4.2.3.2 Discount (Optional) 4.2.4 Machine Test Main Menu...
- Page 4 9.4 Delivery Slot Lid 10. TROUBLESHOOTING 10.1 Warnings 10.2 Frequently Asked Questions 10.2.1 General Questions 10.2.2 Operational Questions 11. MENU TREE 12. SERVICE CENTRE and CERTIFICATE OF WARRANTY...
-
Page 5: Introduction
Chamber of Industry has chosen our company as "INNOVATION FINALISTS". In the year 2012, with its innovative Vending Machine project, Elektral has been awarded as an “TET (Turkish Electro Technology) R&D Project Market Finalist” by the Ministry of Economy, Turkish Export Assembly and IMMIB (Istanbul Mining and Metal Exporters Union). -
Page 6: Operation And Safety Warnings
OPERATION AND SAFETY WARNING Midi Buffet STD ® Procedures & Safety Warnings before using the Midi Buffet STD® Technical specifications of the Midi Buffet STD® Installation of the Midi Buffet STD® Programming and further procedures The arrow-end lightning symbol inside the The exclamation mark inside the equilateral triangle equilateral triangle informs that in the context of informs the user that there are important instructions of... - Page 7 Midi Buffet STD® BEFORE USE AND SAFETY WARNINGS Midi Buffet STD® Tru-VEND Vending Machine is secured by three electronic PIN codes and three mechanic locks which only allow the owner to operate the machine. Please do not share your PIN CODE. If you forget or lose the code, get in contact with our factory.
-
Page 8: General Description
1. GENERAL DESCRIPTION The Vending Machine that you have chosen has been produced by our factory using high technology systems in parallel with other developing technologies and modern aesthetic design providing versatile usage. Tru-VEND® Vending Machines can be used in all public areas such as hotels, factories, hospitals, restaurants, clinics, cinemas, bus terminals, gas stations, doctors &... -
Page 9: Main Units
2. MAIN UNITS Front View Control Panel Door Open Control Panel Door Closed... -
Page 10: Product Trays
Right Side View 2.1 Product Trays Filling up the Vending Machine and Placing the Products to the Trays The vending machine has 4 Trays (+1 optional). In this Snacks Vending Machine to avoid damage, place any breakable and heavy products into the trays close to the dispense compartment (chamber). -
Page 11: Control Panel
To place products in to the Trays: Open the vending machine front door to be at 180° angle with the machine. Gently lift the tray upwards and pull. Adjust the spiral to drop the product easily by pulling the spiral forward, turn and let go for the proper start position. -
Page 12: Coin Selector
The system has Automatic Currency Recognition feature as per the assembled Payment System. The Vending Machine which is eligible for MDB protocol can be equipped with Change Giver, Coin Selector, Bill Validator and/or a combination of Bill Validator and Change Giver, Cashless Payment Systems as per customers’... -
Page 13: Coin Return Push Button
2.3 Coin Return Push Button This button is used for getting the change after shopping. After pressing this button change can be collected from the Coin Return Chute. 2.4 Coin Entry Slot This entry slot is used for inserting coins into Vending Machine. Coins are being placed into the slot then simply being pushed upwards. -
Page 14: Vending Machine Safety
4. PROGRAMMING Midi Buffet STD® All programming settings of the can be done using the Touchpad Keypad on the Control Panel. Keypad buttons are as follows; www.elektral.com.tr X EXIT/NO √ SAVE/YES/SELECT READY TO OPERATE 8 Up Arrow to Scroll Up... -
Page 15: Main Menus
4.1 Main Menus SETTINGS VALIDATORS Settings: Selection of Payment System, Date-Time IR SENSOR Settings, Cooling Unit Settings, Password Settings etc. COOLING UNIT Settings can be done in this menu. DATE-TIME LANGUAGE SETTING CHANGE PASSWORD STATISTICS SALE COUNTER CASH COUNTER Statistics: All statistical information available can be seen ERRORS inside this menu. -
Page 16: Settings Main Menu
4.2.1 Settings Main Menu 4.2.1.1 Payment System Midi Buffet WARNING: The standard Coin Mechanisms installed on the STD® are compatible with MDB protocol. If there will be another Coin Mechanism in use with the following protocols; EXECUTIVE, PARALEL and CCTALK the compatible Coin Mechanisms should be installed and the Protocol has to be selected from the Menu. -
Page 17: Executive Settings
Free Change: This parameter is used to activate or deactivate the Change Function without purchasing any product from the Vending Machine. Full bracket (X) means this feature is active. Automatic Change: This feature enables automatic Change without the need to press Coin Return Push Button. -
Page 18: Cooling Unit (Optional)
If there has not been a product dispense upon 5 vends in a row, the IR product sensor turns itself off. The Vending Machine operates without IR product sensor. It can be re-activated from the menu again. COOLING UNIT 4.2.1.3 Cooling Unit UNIT : ON This menu is for Cooling Unit Settings. -
Page 19: Led Settings
LED SETTINGS 4.2.1.7.2 LED Settings ILL – MOD: Using the LED settings, economy mode can be activated ECO - MOD: to save energy. During the economy mode lighting is ECO - MOD: 20:00 – 07:00 turned off for the adjusted time limit. 4.2.1.8 Authorization This menu is to set the Access limitations of the User Password by the administrator. -
Page 20: Errors
Stacker Total : This value displays the amount of Banknotes Collected in the Bill Validator Stacker. Tubes Total: This value displays the amount of Coins in Change Giver Tubes. ERRORS 4.2.2.3 Errors ERROR (01): 052-11 06.09.10 12:10 Pre-defined Error Codes are as mentioned hereunder; ERROR (02): 068-02 ERROR (03):... -
Page 21: Reset
4.2.2.4 Reset RESET Parameters shown on GLCD are to display current settings of SALE COUNTER Midi Buffet STD® as follows; CASH COUNTER This menu is used for resetting whole values kept in the Statistics Menu. Press (√) SELECT and confirm the application. -
Page 22: Relay Control
4.2.4.6 Relay Control This menu is for checking the Relay Controls of the Cooling Unit. Relay controls are as follows; 1st Relay can be opened using Nr. 1 Key and Closed Using Nr. 4 Key, 2nd Relay can be opened using Nr. 2 Key and Closed Using Nr. 5 Key, Relay (Optional) can be opened using Nr. - Page 23 Midi Buffet STD® Operate the (after waiting 2 hrs.) You may either use the machine on the palette or use it on its footers. To do so, please remove the machine from the pallet and use the Wheeled Footers. ...
-
Page 24: Operation Of Midi Buffet Std
Midi Buffet STD® 7. OPERATION OF Necessary controls and settings the users should proceed with, regarding the operation of the Midi Buffet STD® are described under Product Loading (Chapter 2.1), Pricing (Chapter 4.2.3) and Machine Tests (Chapter 4.2.4). Midi Buffet STD® Instructions for the Customers who will purchase from the are as follows;... -
Page 25: Additional Tray / Canned Drink Dispenser
The compressor operates with 220-240 V, 50 Hz. Non-inflammable and non-exploding gas, R404A has been used in the system. As a protection measure the compressor starts operating 2.5 minutes after the power on. Evaporator, condenser and defrost system are other features of the cooling system. -
Page 26: Troubleshooting
10. TROUBLESHOOTING 10.1 Warnings Midi Buffet STD® must be taken into operation only after all necessary precautions and instructions in this User’s Manual are fulfilled. Misuse of the Vending Machine may cause malfunctions and/or harm to the environment and humans. The Midi Buffet STD is recommended to operate in fixed vertical position. -
Page 27: Menu Tree
11. Menu Tree 1 Settings 1.8.29 Alarm 1.1 Validators 1.4 Date - Time 1.8.30 Bill 1.1.1 Serial Protocol 1.4.1 Date-Time Settings 1.8.31 Gsm/Gprs 1.1.1.1 Mdb 1.5 Language Setting 1.8.32 Tilt Sensor 1.1.1.2 Executive 1.5.1 Turkish 1.9 Default Settings 1.1.1.3 Cctalk 1.5.2 English 2 Statistics 1.1.1.4 Imp Mdb... - Page 28 4.4.1.1 Displays Change Giver Data 4.4.2 Bill Validator 4.4.2.1 Displays Bill Validator Data 4.4.3 Cashless Machine 4.4.3.1 Displays Cashless Payment System Data 4.5 Touchboard 4.5.1 Displays Touchboard Version 4.6. Relay Control 4.6.1 Relay 1 (Cooling) 4.6.2 Relay 2 (Fan) 4.6.3 Relay 3 4.7 Others 5 Accessories 5.1 Alarm...
-
Page 29: Service Centre And Certificate Of Warranty
All Warranty Services are at our Factory. All transportation risks and costs to and pro our Factory belongs to Customer. Thank you for selecting a product manufactured by ELEKTRAL A.S. Before using your new item please take a minute to read and fill out the forms on the reverse side of this card.
