Arkon SM212 Installation

SM212 | Deluxe Weighted "Friction Style" Mobile Phone Dash Mount
Weighted "Friction Style"
Dash Mount with Pedestal
Patent Pending

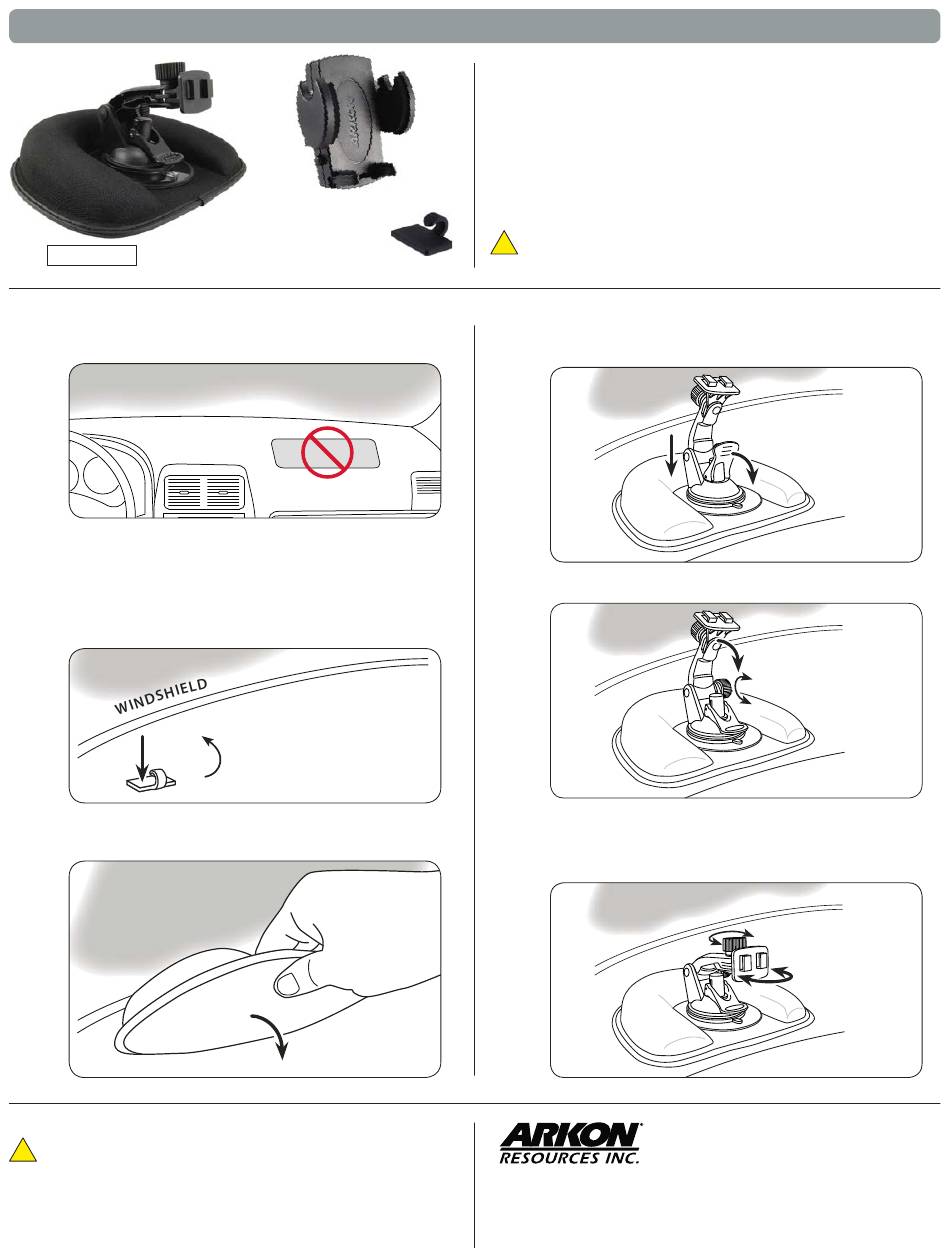

Dash Mount Installation
Step 1. Find a safe location on the vehicle dash that is not in an air
bag deployment zone.
Step 2. Optional Safety hook installation will add extra stability.
Clean the area with the included alcohol pad and let dry.
Remove the adhesive backing on the safety hook base. The
hook curve must point towards the windshield. Press and
hold the hook down on the dash surface for about a minute.
Allow 24 hrs. to cure to the dash at room temperature (72° F).
Step 3. Place the loop on the back of the dash mount around the
safety hook and place on the dash in front of the hook.
Safety Precautions
!
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
Adhesive
Safety Hook
A I R B A G
Hook towards windshield
Package Contents:
(1) CM012 - Weighted "friction style" dash mount
(1) CM014-2 - Travelmount® mini windshield mount
(1) SM020-2 - Universal mobile phone cradle / holder
(1) Optional adhesive safety hook (recommended but not required)
SM020-2
(1) Alcohol cleaning pad
Universal
Cradle
Compatible with:
• Most mobile phones
!
Do not place mount in or near an air bag deployment zone or
where it will obstruct view of the road.
Step 4. Lower the pedestal onto the disc and press down fi rmly. Flip the
locking lever down to secure the pedestal to the dash mount.
Step 5. Adjust the angle of the arm by tightening the rotation knob.
Step 6. Adjust the lateral angle of the pedestal head by tightening the
head adjustment knob. Attach a dual T cradle or device to the
dual T-tabs. (Device not included, sold separately.)
Consumer Hotline:
USA (800) 841-0884
INT'L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
The Mobile Mounting Specialists™
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in China and Taiwan
© Copyright 2008 Arkon Resources, Inc.
