Summary of Contents for Coaster 703747

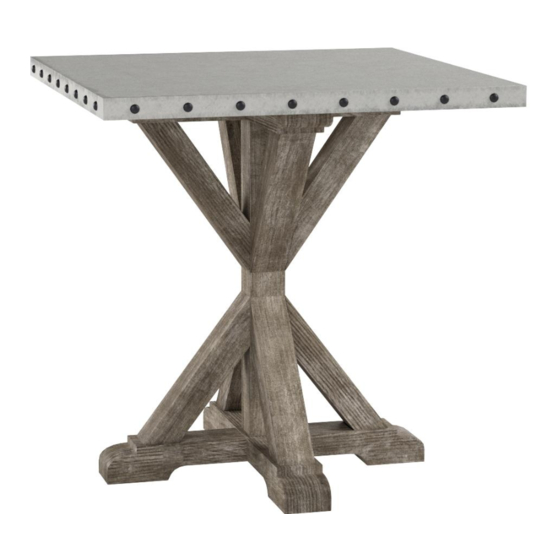

- Page 1 703747 END TABLE ASSEMBLY INSTRUCTION COASTER FINE FURNITURE 703747 703749 703748 coastercompany.com WWW. Page 1 OF 5 2014-07-11...
- Page 2 ITEM:703747 ASSEMBLY INSTRUCTION Assembly lnstruction ASSEMBLY TIPS: 1.Remove hardware from box and sort by size. 2.please check to see that all hardware and parts are present prior to start of assembly. 3.please follow attached instructions in the same sequence as numbered to assure fast &...
- Page 3 ITEM: 703747 ASSEMBLY INSTRUCTION Assembly lnstruction It needs two persons and takes about thirty minutes to assemble the item. SETP 1 Insert CROSS BAR on the LEG. STEP 2 Attach the CONNECTING PLATE and the LEG as shown by using FLAT WASHER, LOCK WASHER and BOLT -SMALL with ALLEN WRENCH.
- Page 4 ITEM: 703747 ASSEMBLY INSTRUCTION Assembly lnstruction STEP 3 Attach the BASE and the LEG as shown by using FLAT WASHER, LOCK WASHER and BOLT -LARGE with ALLEN WRENCH. STEP 4 Place the top panel upside down on a soft surface, then attach the assembled piece from step 3 using flat washer, lock washer, and bolt-small with allen wrench.
- Page 5 ITEM: 703747 ASSEMBLY INSTRUCTION Assembly lnstruction STEP 5 Assembly complete. Page 5 OF 5 coastercompany.com WWW.
