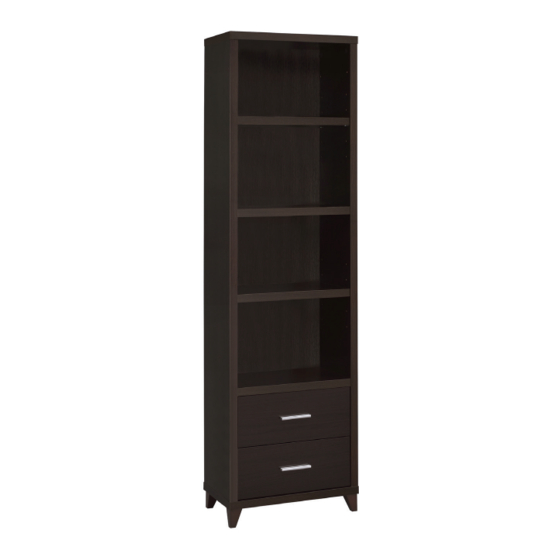

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 700882 MEDIA TOWER REVISION 0 : 12/08/2015 PAGE 1 OF 9 COASTERFURNITURE.COM REVISION 1 : 09/17/2019...
-
Page 2: Assembly Tips
700882 ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. -
Page 3: Hardware Identification
700882 ITEM: HARDWARE IDENTIFICATION DESCRIPTION FIGURE Q’TY DESCRIPTION FIGURE Q’TY SCREW FOR RAIL GLUE 40g 1 PC 20 PCS Ø 3x12mm WOODEN DOWEL 24 PCS 8 PCS Ø 8x30mm Ø 4.9x8mm CAM BOLT HANDLE 16 PCS 2 PCS Ø 7x35.5mm... - Page 4 700882 ITEM: STEP 1 x 16 x 12 7 x 2 x 12 7 (CL) 7 (CR) 7 (CR) D x2 INCORRECT CORRECT Apply glue on all wooden dowels to ensure integrity of the structure. (CL) (CR) PAGE 4 OF 9...
- Page 5 700882 ITEM: STEP 2 Apply glue on all wooden dowels to ensure integrity of the structure. STEP 3 Apply glue on all wooden dowels to ensure integrity of the structure. PAGE 5 OF 9 COASTERFURNITURE.COM...
- Page 6 700882 ITEM: STEP 4 Apply glue on all wooden dowels to ensure integrity of the structure. STEP 5 6 x8 I x2 3 x4 K x2 L x2 2 x8 4 x4 Apply glue on all wooden dowels to ensure integrity of the structure.
- Page 7 700882 ITEM: STEP 6 STEP 7 PAGE 7 OF 9 COASTERFURNITURE.COM...
- Page 8 700882 ITEM: 302mm(11.75") 666mm(26") 333mm(13") 666mm(26") 302mm(11.75") 333mm(13") 474mm(18.5") 99mm(3.75") 419mm(16.25") 234mm(9") 70mm(2.75") Note : Dimension tolerance ±5% PAGE 8 OF 9 COASTERFURNITURE.COM...
- Page 9 ANTI-TIPPING INSTALLMENT INSTRUCTIONS FURNITURE TIPPING RESTRAINT WARNING Injury may result from tipping furniture. This restraint may protect against tipping furniture. Do not allow children to climb on furniture. This restraint is not a substitute for proper adult supervision. Failure to detach this restraint before moving the furniture may result in injury and damage.
