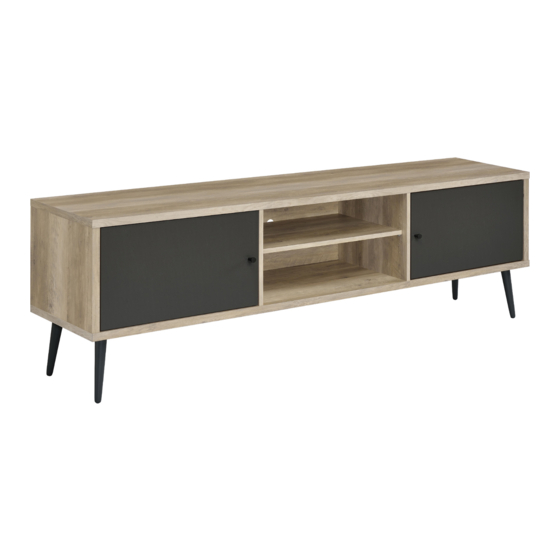

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 701076 TV CONSOLE REVISION 0 : 07/18/2023 PAGE 1 OF 10 COASTERFURNITURE.COM...
-
Page 2: Assembly Tips
701076 ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. -
Page 3: Hardware Identification
701076 ITEM: HARDWARE IDENTIFICATION DESCRIPTION FIGURE Q’TY DESCRIPTION FIGURE Q’TY SCREW GLUE 40g 1 PC 16 PCS Ø4x15mm SR WOODEN DOWEL 24 PCS HANDLE 2 PCS ∅8x30mm CAM BOLT HANDLE BOLT 15 PCS 2 PCS ∅7x35.5mm SR Ø4x25mm BLK CAM LOCK... - Page 4 701076 ITEM: STEP 1 x 24 INCORRECT CORRECT Apply glue on all wooden dowels to ensure integrity of the structure. PAGE 4 OF 10 COASTERFURNITURE.COM...
- Page 5 701076 ITEM: STEP 2 x 11 14 x 2 STEP 3 Apply glue on all wooden dowels to ensure integrity of the structure. PAGE 5 OF 10 COASTERFURNITURE.COM...
- Page 6 701076 ITEM: STEP 4 Apply glue on all wooden dowels to ensure integrity of the structure. STEP 5 PAGE 6 OF 10 COASTERFURNITURE.COM...
- Page 7 701076 ITEM: STEP 6 x 11 STEP 7 x 16 PAGE 7 OF 10 COASTERFURNITURE.COM...
- Page 8 701076 ITEM: STEP 8 STEP 9 PAGE 8 OF 10 COASTERFURNITURE.COM...
- Page 9 701076 ITEM: STEP 10 I x 2 STEP 11 HORIZONTAL BY LATERAL BY VERTICAL BY SCREW A ADJUSTMENT SCREW B ADJUSTMENT SCREW C ADJUSTMENT PAGE 9 OF 10 COASTERFURNITURE.COM...
- Page 10 701076 ITEM: 22.01" 23.62" 22.01" 13.70" 5.69" 14.09" 12.56" 14.88" 6.28" 14.09" 12.56" 7.87" 67.32" 11.97" Note : Dimension tolerance ±5% PAGE 10 OF 10 COASTERFURNITURE.COM...
