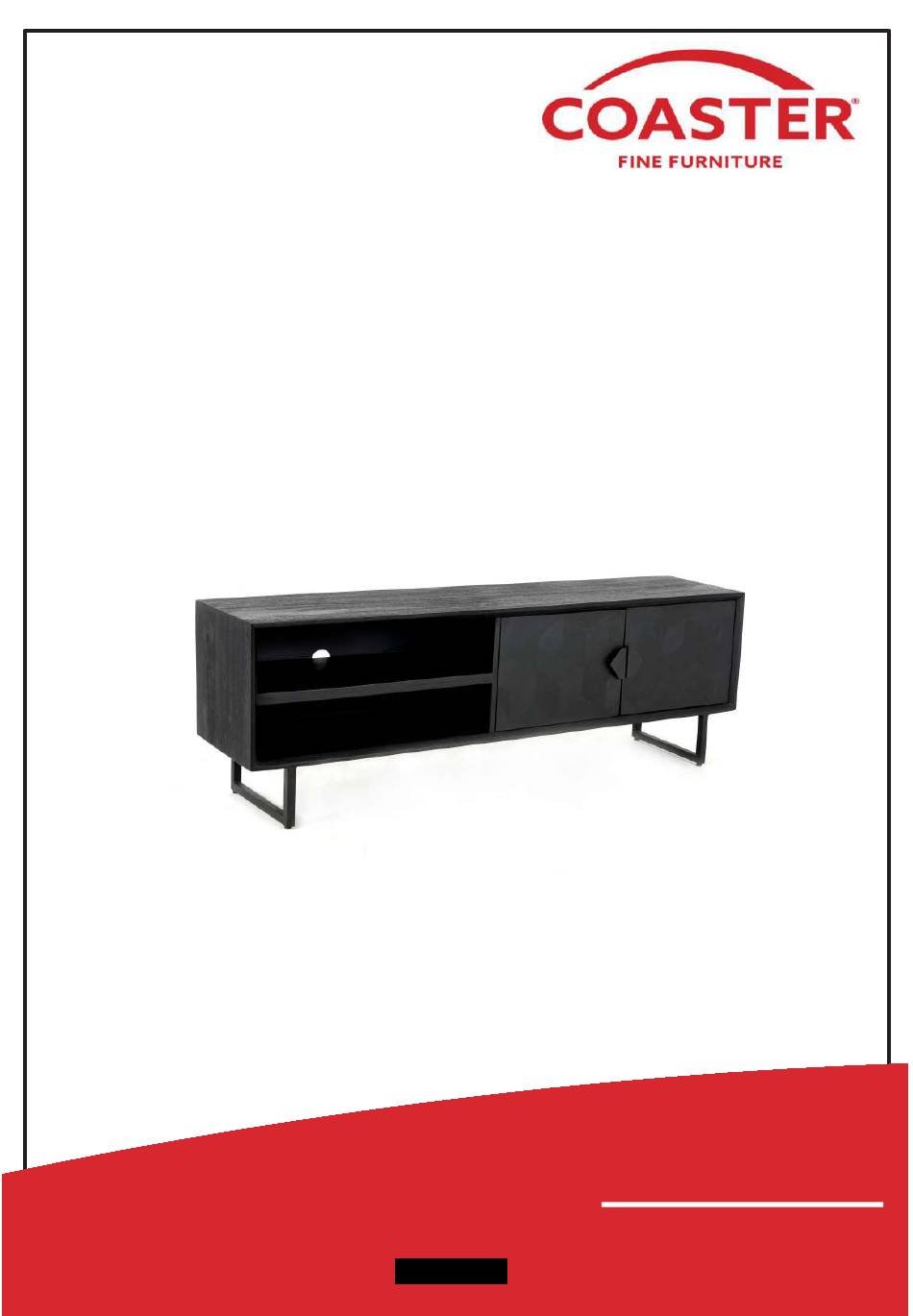

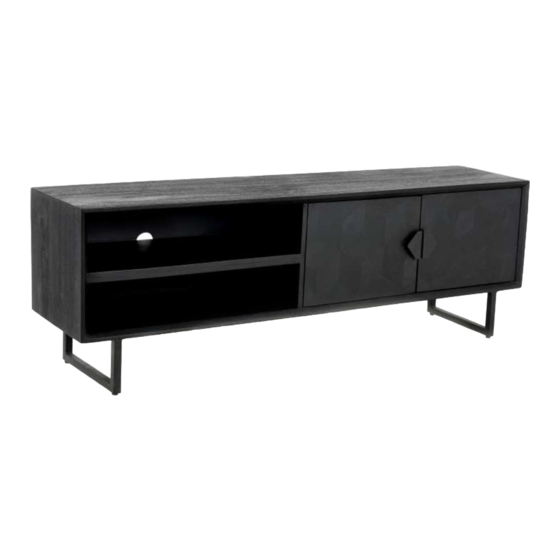

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 703003 TV Console REVISION 0: REVISION 0: 07/18/2023 REVISION 0: REVISION 0: COASTERFURNITURE.COM COASTERFURNITURE.COM PAGE 1 OF 3...
- Page 2 703003 ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
- Page 3 703003 ITEM: ASSEMBLY INSTRUCTIONS STEP 1 STEP 2 COMPLETE COASTERFURNITURE.COM PAGE 3 OF 3...
- Page 4 703003 ITEM: 70.00" 16.00" 23.00" 4.75" 7.00" 14.00" 58.50" 15.00" 60.50" 37.50" 18.50" 29.00" 14.00" 6.50" 14.25" 14.50" 6.50" Note : Dimension tolerance ± 5% COASTERFURNITURE.COM...
